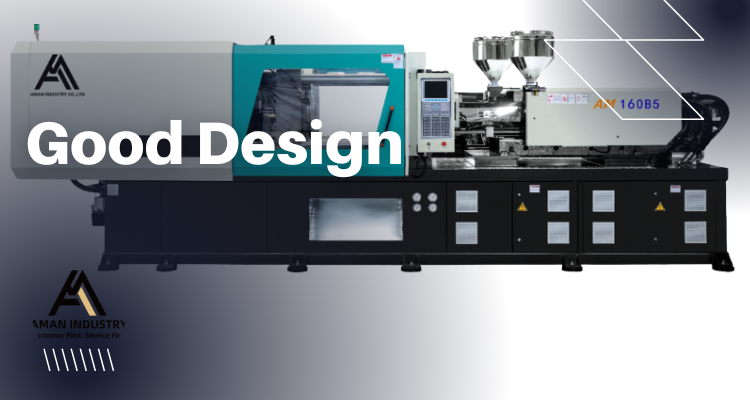

Full automatic 160 ton AMB5 series standard injection molding machine Factory price in 2022 for Appliance
Injection molding machines offer several advantages over other manufacturing processes, including: 1.High efficiency: Injection molding machines can produce large quantities of products in a short amount of time, making it a highly efficient manufacturing process. 2.Versatility: Injection molding machines can produce a wide range of products with varying sizes, shapes, and complexities, making it a versatile process for different industries. 3.High accuracy and repeatability: Injection molding machines can produce products with high accuracy and consistency, ensuring that each product is manufactured to the desired specifications. 4.Low labor costs: Injection molding machines can be automated, reducing the need for manual labor and lowering labor costs. 5.Material variety: Injection molding machines can process a wide range of materials, including thermoplastics, thermosets, and elastomers, allowing for greater flexibility in product design and functionality. 6.Reduced waste: Injection molding machines can reduce waste by recycling excess plastic material, making it an environmentally friendly manufacturing process. Overall, injection molding machines are a highly efficient, versatile, and accurate manufacturing process with a range of advantages over other manufacturing methods.
Product description

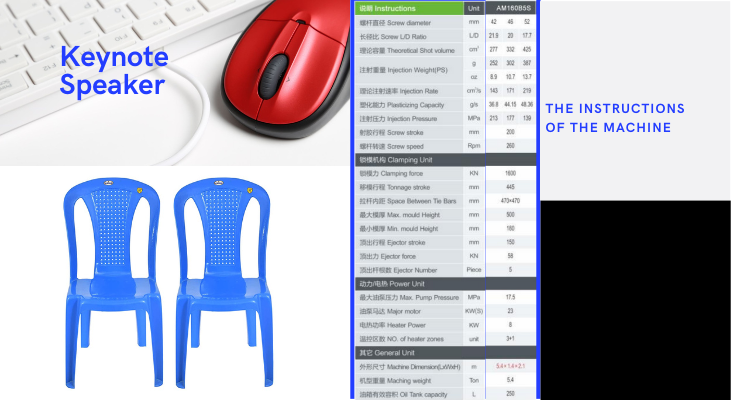

| Instructions | unit | AM160B5S | ||
| Screw diameter | mm | 42 | 46 | 52 |
| Screw LD Ratio | L/D | 21.9 | 21.9 | 17.7 |
| Theoretical Shot volume | cm³ | 277 | 332 | 425 |
| Injection Weight(PS) | g | 252 | 302 | 387 |
| oz | 8.9 | 10.7 | 13.7 | |
| Injection Rate | cm³/s | 143 | 171 | 219 |
| Plasticizing Capacity | g/s | 36.8 | 44.15 | 48.36 |
| Injection Pressure | MPa | 213 | 177 | 139 |
| Screw stroke | mm | 200 | ||
| Screw speed | Rpm | 260 | ||
| Clamping Unit | ||||
| Clamping force | KN | 1600 | ||
| Tonnage stroke | mm | 445 | ||
| Space Between Tie Bars | mm | 470*470 | ||
| Max.mould Height | mm | 500 | ||
| Min.mould Height | mm | 180 | ||
| Ejector stroke | mm | 150 | ||
| Ejector force | KN | 58 | ||
| Jector Number | Piece | 5 | ||
| Power Unit | ||||
| Max.Pump Pressura | MPa | 17.5 | ||
| Major motor | KW(S) | 23 | ||
| Heater Power | KW | 8 | ||
| NO.of heater zones | unit | 3+1 | ||
| General Unit | ||||
| Machine Dimension( L×W×H) | m | 5.4*1.4*2.1 | ||
| Maching weight | Ton | 5.4 | ||
| Oil Tank capacity | L | 250 | ||
of plastic products using plastic molding. Divided into vertical, horizontal, and all-electric.
cavity.
- mold filling and cooling - mold opening and removal. After the plastic parts are taken out, the mold is closed again for the
next cycle.
We are based in Jiangsu, China, start from 2008,sell to Southeast Asia,North America,Mid East,South
America,Africa,Western Europe,South Asia. There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Assembly Machine,Filing Machine,Labeling Machine,Mist Spray,Lotion Pump
4.Why should you buy from us not from other suppliers?
Aman Machinery Co., Ltd, founded in 2007, specializes in different kind of filling machine like liquid filling machine, marker pen
assembling machine and capping machine and labeler,wrapping and cartoning machine.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Arabic,Russian,Korean
For preform, cap, bucket and crate applications, see our injection molding machine range on amanmachine.com.
Get an exact quote within 24–48 hours
Tell us what you make and how many a day. A photo or drawing helps us quote faster.
