Hot Sales Cnc Laser Engraving Machine/ Laser Cutter 4060/9060 For Acrylic For Wood Glass Marble Leather Mdf Paper Fabric

Share to:

Hot Sales Cnc Laser Engraving Machine/ Laser Cutter 4060/9060 For Acrylic For Wood Glass Marble Leather Mdf Paper Fabric

A laser engraving machine is a piece of equipment that uses lasers to engrave or etch a design onto a variety of materials, such as wood, metal, plastic, and glass. Laser engraving machines are commonly used in industries such as manufacturing, jewelry making, and signage, as well as by hobbyists and artists for personal projects. They work by directing a high-powered laser beam onto the material, which vaporizes or melts the surface to create the desired design. Laser engraving machines come in various sizes and types, from small desktop machines for personal use to large industrial machines for mass production.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Detailed Images

  The main parts of our products are high-quality industrial-grade accessories.

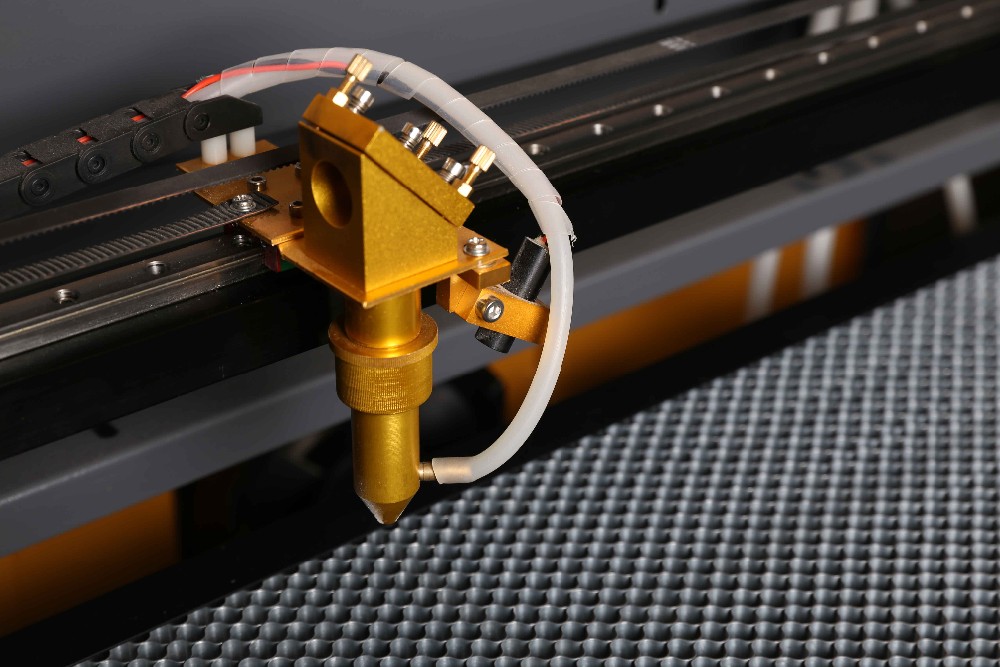

1. Laser Head

 -- Laser head can stop focus lens from polluting. -- Laser head will make effect of engraving and cutting better.

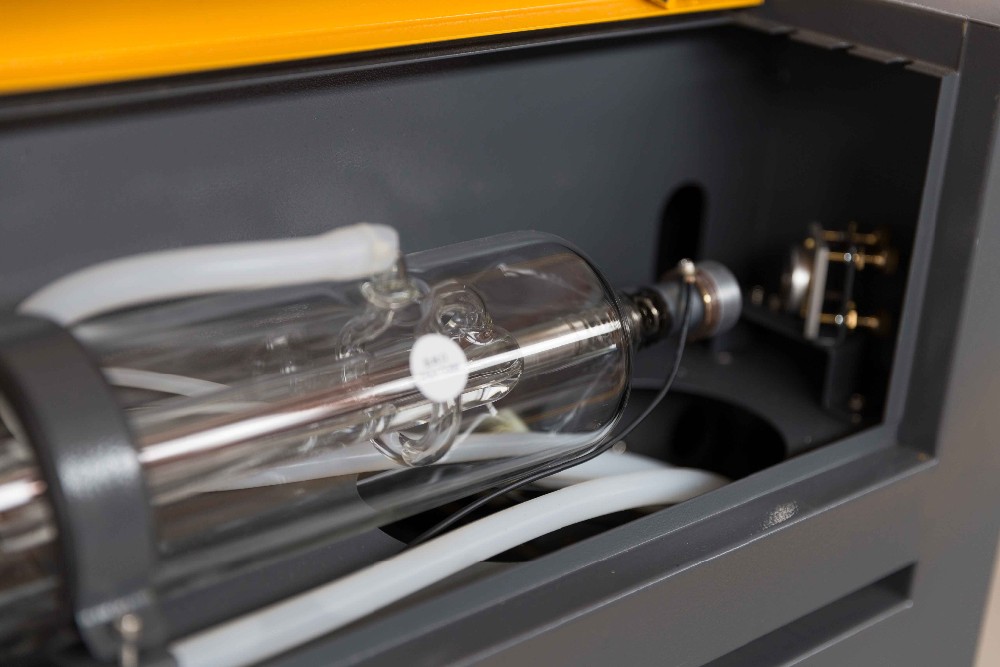

2.Sealed-off Glass CO2 Laser Tube

 -- Longer service life. -- More steady.  -- Higher efficiency. -- High precision. -- Small facula.

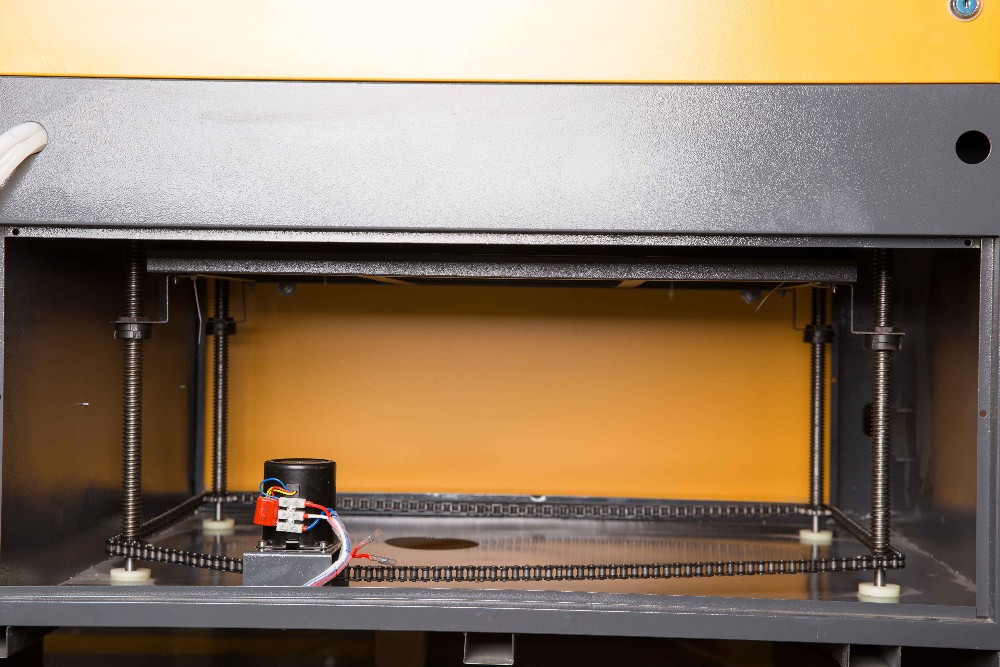

3. Electric Up-down Work Table.

 -- Work table can be Up and Down freely to put higher objects in this machine.

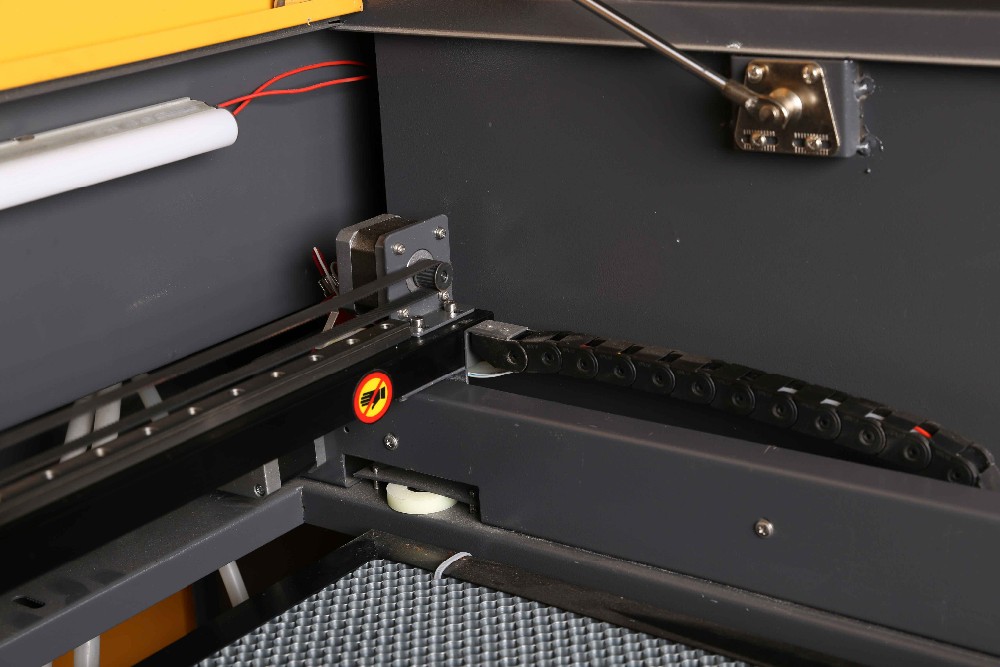

4. Stepper Motor

 -- Leadshine brand. -- High torque. -- Low heat. -- Low running noise. -- Stable operation .

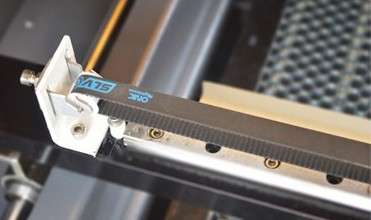

5. X-Y Plotter

 -- Taiwan HIWIN brand.
-- Linear square guideway.
-- High speed and high precision.
-- Long service life.

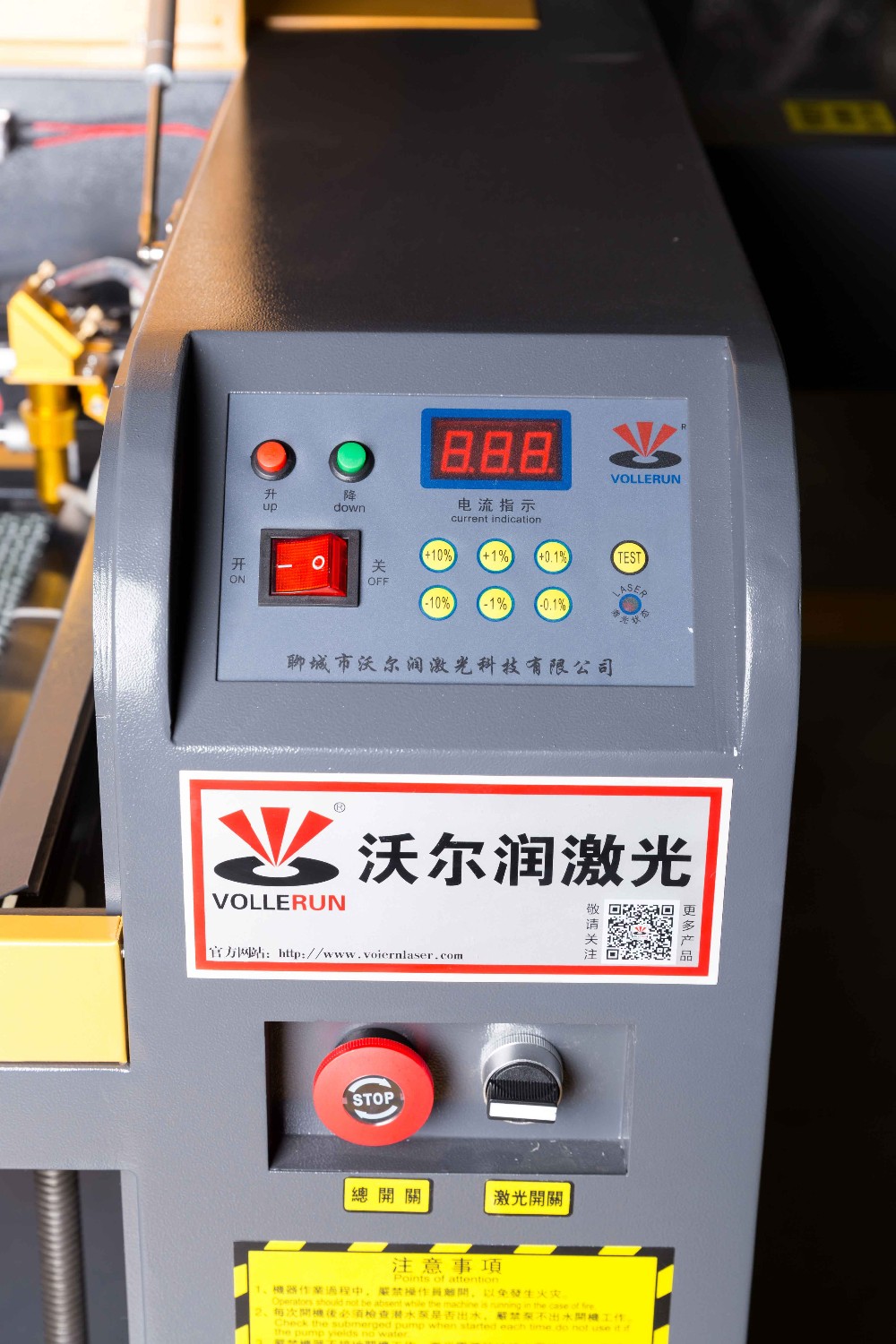

6. Control Panel and Mainboard

 -- RuiDa brand. It's famous and popular.
-- It has their own system for engraving and cutting. Don't need to install extra work software.
-- It has multi-language function.
-- It has an ability to choose intelligently a good work path to engrave and cut.

Size Information

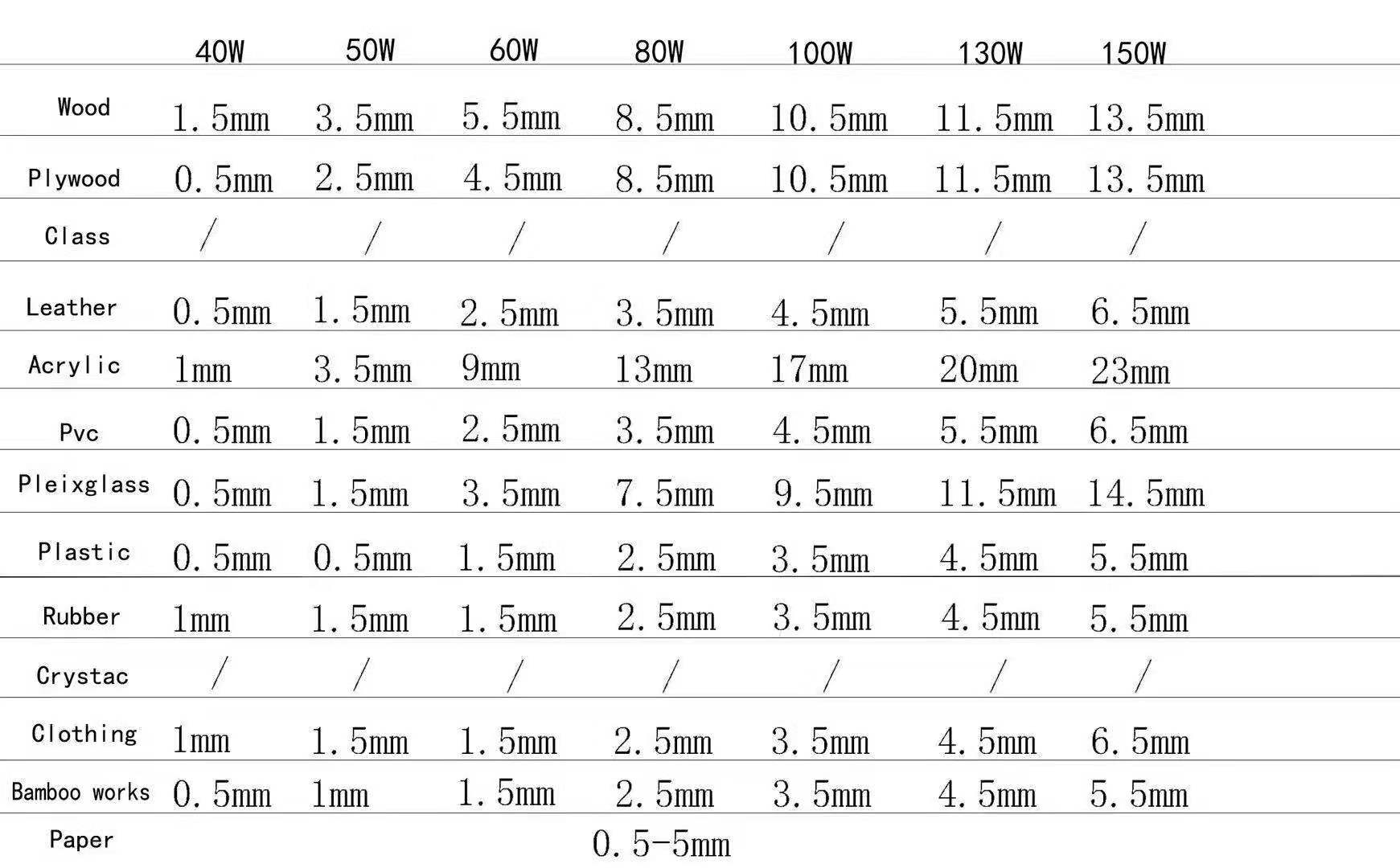

  Cutting depth of different power and material.Please choose the product according to your needs.

Parameter table

Cutting Speed	1-70mm/s
Highest Scanning Precision	≤1000DPI
Resolution Ratio	<0.01mm
Location Precision	<0.01mm
Min. Shaping Character Letter	1.0 x 1.0mm
Working Temperature	0-45°C
Working Humidity	5-95%
Power Supply	AC220V±10% /50HZ , AC110V±10%//60HZ
Laser Wave Length	10.6um
Water Cut-off Protection Device	Yes
Work Table	Multifunctional work table and honeycomb work table
Electric Up/down Working Table	Yes
Range of Electric Up-down (Z)	0-300mm
Motor	42 Stepper Motor
Digital Subdivision Stepper Drive	System Supported
DSP Interface	USB 2.0
Auxiliary Device	Exhaust Fan, Exhaust Pipe,Water Pump,Air Pump,User Manual
Optional Accessories	Simple rotation, standard chuck, chiller,auto focus system,Water Protection,CCD camera,Blade work platform
