Bottle Blow Machine

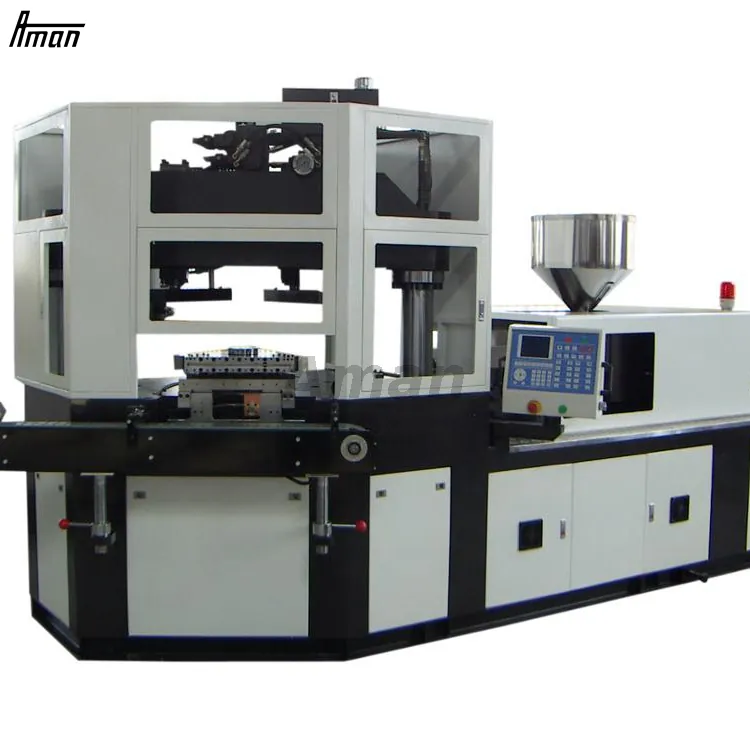

Plastic Medicine Bottle Making Machine
Dia. of screw40mmMax. retical capacity220cm³Total power for cylinder-heating6.5kwClamping force of injection mold350kn
Product description
Blow Molding Machine
Features:
1. Suitable bottle size: 3ml-1000ml
2. Material: PP/PE/PS.
3. High speed: cycle time control 9-15sec. on our injection blow molding machine.
2. Material: PP/PE/PS.
3. High speed: cycle time control 9-15sec. on our injection blow molding machine.
Advantage:
1.The bottle blown by this machine has perfect neck formation.The dimension tolerance control is 0.2mm only. the neck is very smooth, no flash can be seen.
2.The bottle bottom is very clean, only injection point can be seen, bottle weight tolerance is only 0.1 gram.
3.The bottle parting line is untouchable.
4.Wall thickness is evenly distributed.
5.No wastage at all.
6.Production is high (the machine can control cycle time from 9-15sec).
7.The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.
2.The bottle bottom is very clean, only injection point can be seen, bottle weight tolerance is only 0.1 gram.
3.The bottle parting line is untouchable.
4.Wall thickness is evenly distributed.
5.No wastage at all.
6.Production is high (the machine can control cycle time from 9-15sec).
7.The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.
| Dia. of screw | 40mm |
| Max. retical capacity | 220cm³ |
| Total power for cylinder-heating | 6.5kw |
| Clamping force of injection mold | 350kn |
| Opening stroke | 120mm |
| Clamping force of blow mold | 30kn |
| Max. plate size of die (L*W) | 300*200mm |
| Min. die thickness | 180mm |
| Motor power | 15kw |
For medical vials and eye-drop bottles, see our pharmaceutical injection blow molding machines on amanmachine.com.
