Trigger Sprayer Assembly Machines
Finished trigger sprayers with dip tubes leave the rotary table and drop into a box.
Our trigger sprayer assembly machines put trigger sprayers, also called spray guns, together from their separate parts: on a single machine, with testing on the same machine, or on a full line that ends with an inspection section. Each machine is set up for your own sprayer parts.
Machines for trigger sprayers

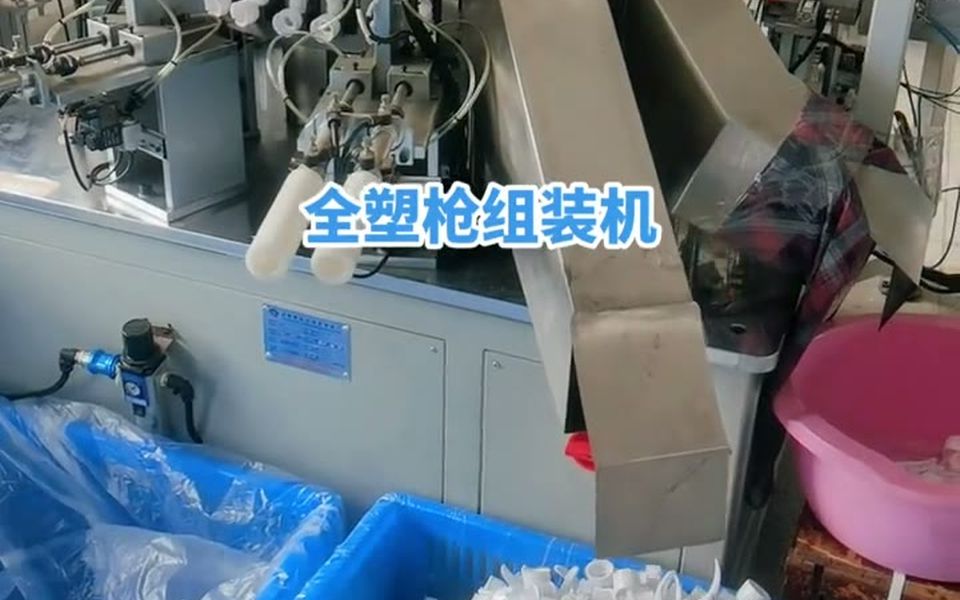

Pneumatic Trigger Sprayer Assembly Machine
Pneumatic stations bring the sprayer parts together on one stand-alone machine.
- 4,000 heads/hour (three-part all-plastic heads, Pakistan)

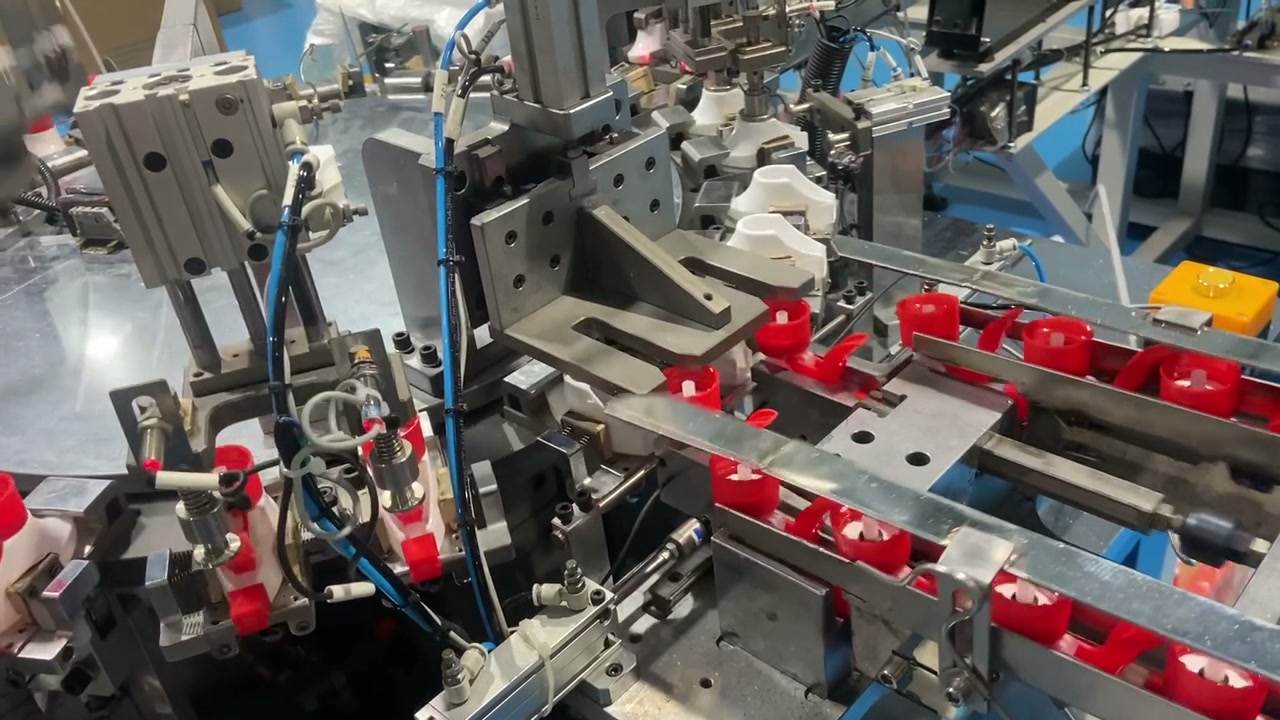

Trigger Sprayer Assembly Machine AM-TY-02
Assembles trigger sprayers from their separate parts.
- 60–120 units/min (standard model)

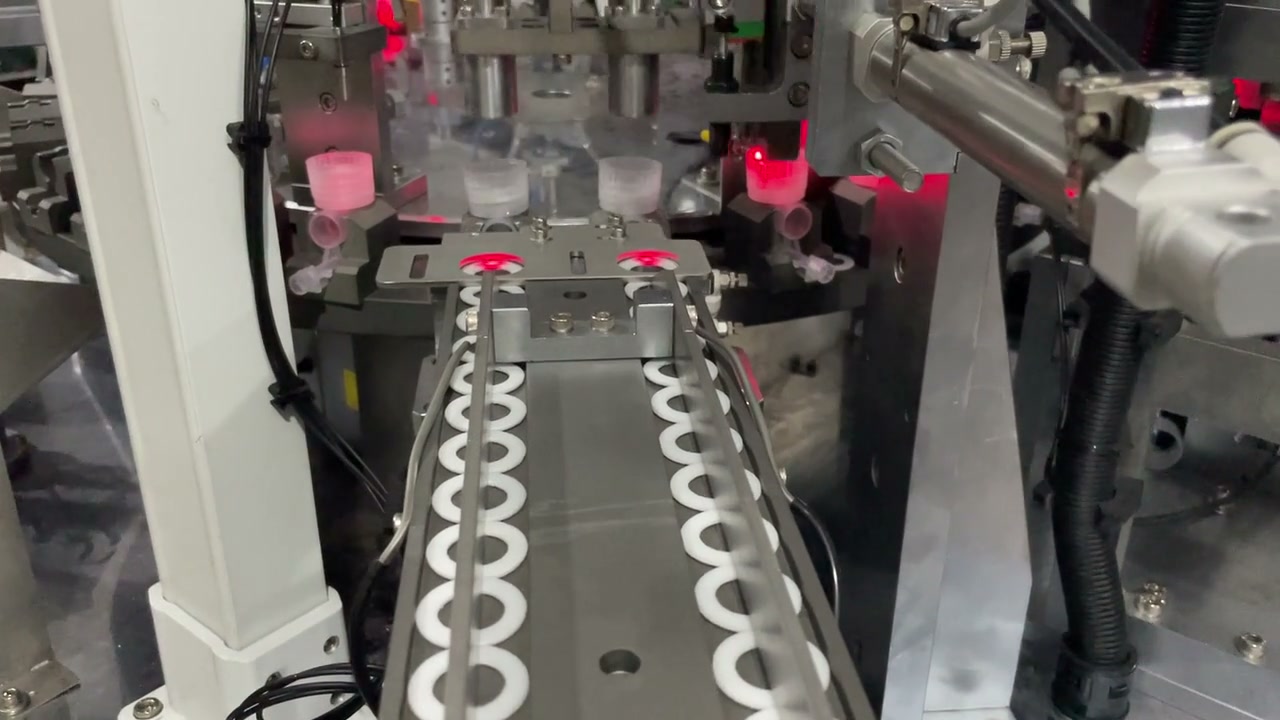

All-Plastic Trigger Sprayer Assembly & Testing Machine
Assembles all-plastic trigger sprayers and tests them on the same machine.

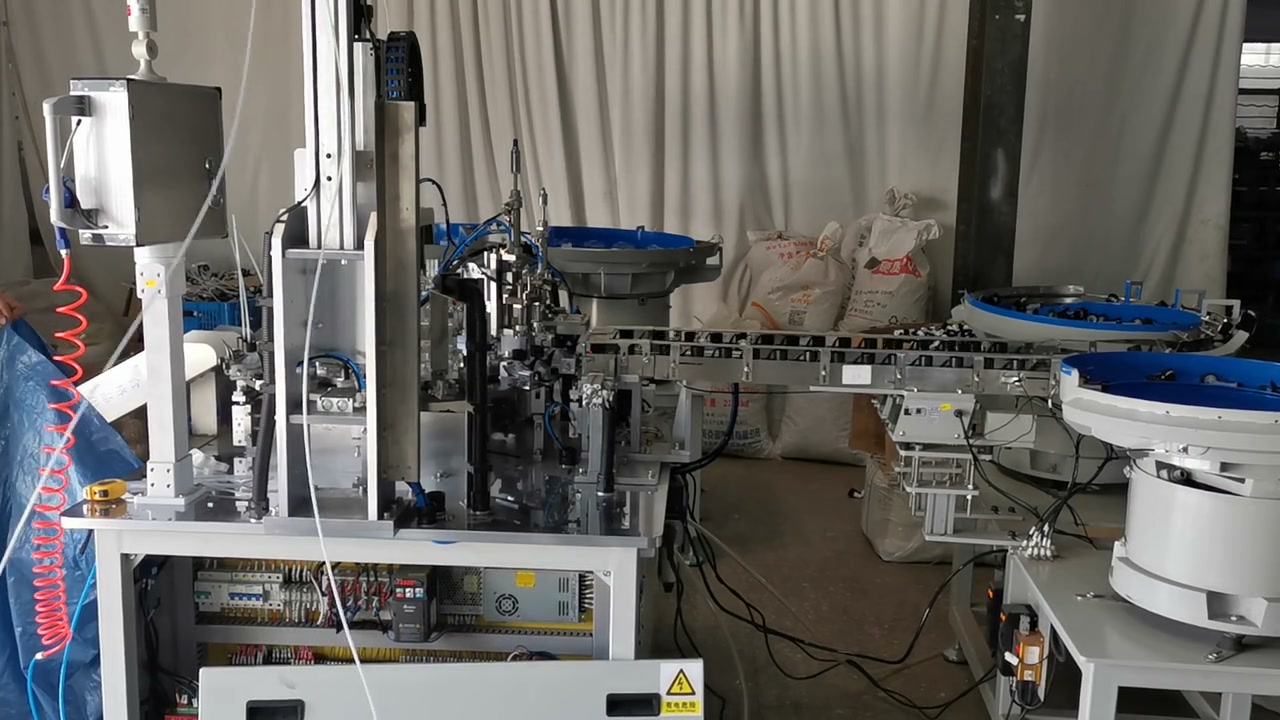

Trigger Sprayer Assembly Line with Inspection
A full line that ends with an inspection section.

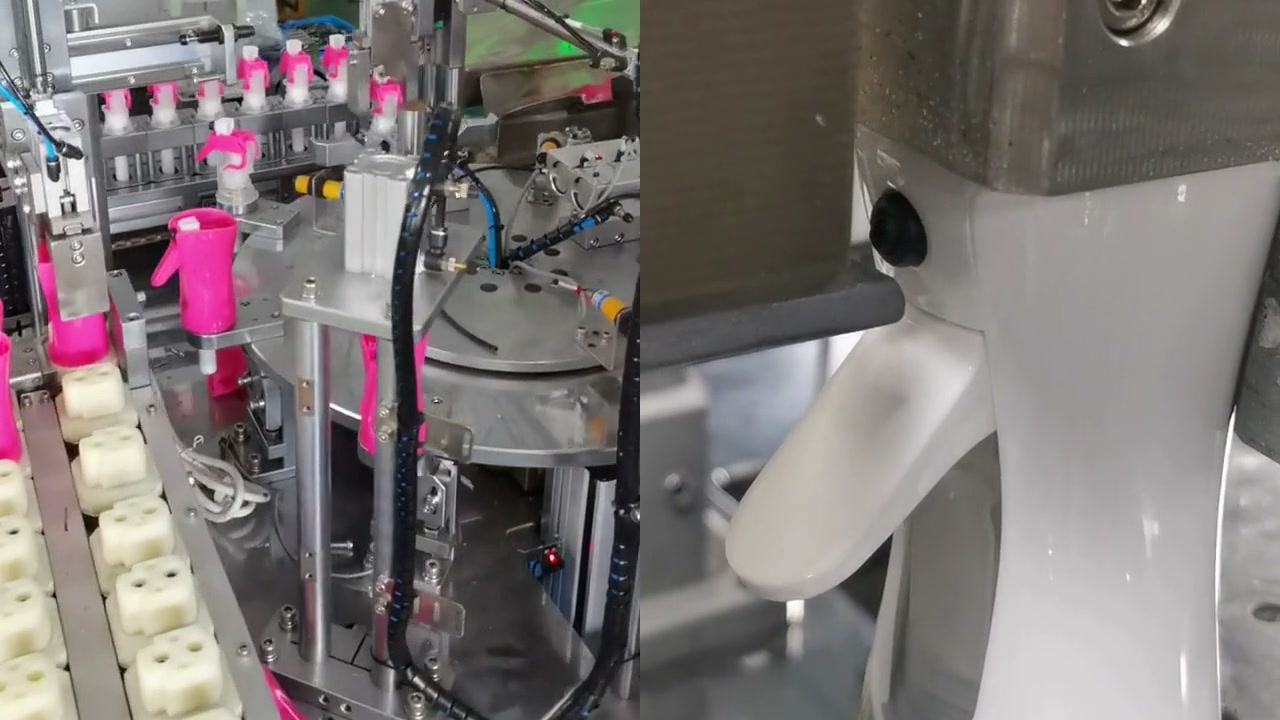

Continuous Spray Trigger Sprayer Assembly Line
Assembles continuous spray trigger sprayers on rotary-table stations.
- 40–50 pcs/min (typical)
Trigger sprayer projects we have delivered
Which machine fits your trigger sprayer?
Start with the step you want to do by machine.
| You need | Machine |
|---|---|
| The whole sprayer on one stand-alone machine | Pneumatic Trigger Sprayer Assembly Machine Pneumatic stations bring the sprayer parts together on the assembly table, and an inclined elevator can tip loose parts into the vibratory bowls. The one we supplied in Pakistan for three-part all-plastic heads is rated at 4,000 heads per hour. |
| Our catalogue model, the AM-TY-02 | Trigger Sprayer Assembly Machine AM-TY-02 Assembles trigger sprayers from their separate parts. The standard model runs 60–120 units per minute; the speed for your sprayer depends on its parts. |
| Assembly and testing on one machine | All-Plastic Trigger Sprayer Assembly & Testing Machine Assembles all-plastic trigger sprayers and tests them on the same machine, so you do not need a separate testing machine after assembly. |
| A full line that ends with inspection | Trigger Sprayer Assembly Line with Inspection A full line, not a single machine: sprayers are checked in the inspection section before they leave the line. |
| Continuous spray trigger sprayers | Continuous Spray Trigger Sprayer Assembly Line For a trigger sprayer that keeps spraying a fine mist while you pull. It has more parts than a standard trigger sprayer, so the line has more stations. A typical line runs about 40–50 sprayers per minute. |
| Testing only, after assembly | Trigger Sprayer Testing Machine Tests trigger sprayers after assembly. Tell us what each sprayer needs to be checked for. |
Every machine is set up for your own sprayer parts, so the speed depends on your sprayer. For fine mist sprayers, see our fine mist sprayer and spray pump assembly machines.
Frequently Asked Questions
How it is assembled: How a Trigger Sprayer Is Assembled, Step by Step
Send us your trigger sprayer
Drawings or photos of each part and the finished sprayer, plus your target output. We'll tell you whether it can be assembled, and how fast. Get an exact quote within 24–48 hours.
