Home/Assembly Machines/Household, Stationery, Electrical & Automotive Parts Assembly Machines/Automatic Screw Tightening & Fastening Machine
Household, Stationery, Electrical & Automotive Parts
Automatic Screw Tightening & Fastening Machine

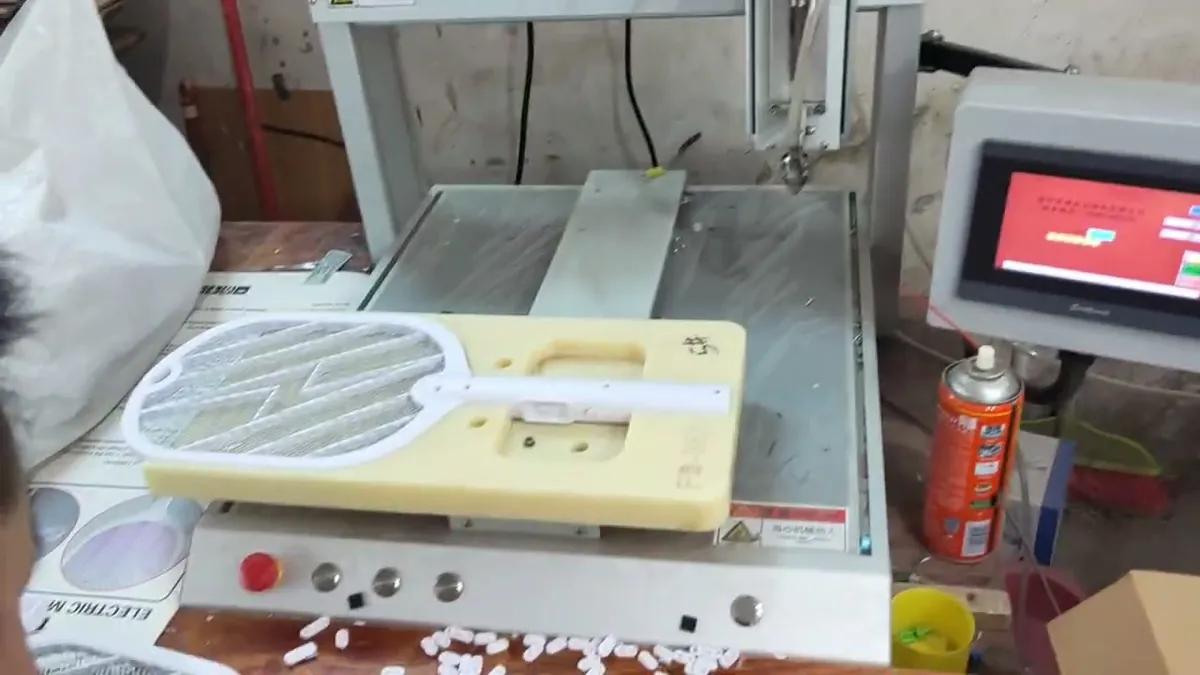

A benchtop gantry moves an electric screwdriver along a plastic handle, screw by screw.
This machine drives the screws into your parts by machine instead of by hand.

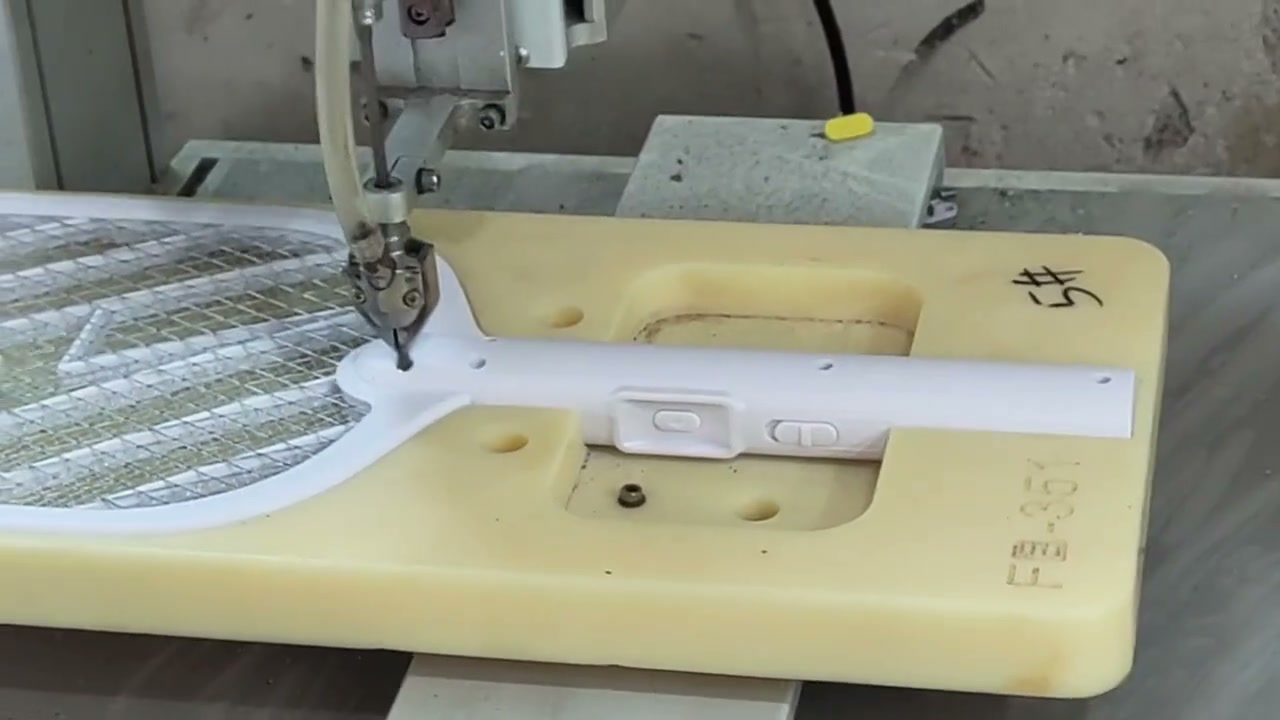

On the benchtop model, the part sits in a fixture and an electric screwdriver on a gantry moves from hole to hole, driving one screw after another.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Overview
Key Points
- Benchtop gantry with an electric screwdriver; the part is held in a fixture
- About 1.5–3 seconds per screw (typical)
- Set up for your own parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Output | About 1.5–3 seconds per screw (typical, depends on the part) |
| Layout | Benchtop gantry with one electric screwdriver |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. The time per screw depends on the screw size and the distance between holes; every machine is set up for your own part.
What It Runs
Suitable Parts
Parts held together with screws, such as plastic handles.
Answers
Frequently Asked Questions
A screw tightening machine drives the screws into your parts by machine instead of by hand. On the benchtop model the part sits in a fixture and an electric screwdriver on a gantry moves from hole to hole, driving one screw after another.
Parts held together with screws, such as plastic handles. Send drawings or photos of your parts and where the screws go, and we'll tell you whether they can be assembled by machine, and how fast.
Drawings or photos of each part and the assembled part, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your parts and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
On a typical benchtop model, about 1.5–3 seconds per screw, depending on the screw size and the distance between holes. Send us your part and where the screws go, and we'll tell you how many parts per hour yours can do.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
