Fine Mist Sprayer & Spray Pump Assembly Machines
Grippers lift small white parts from the feed track onto the rotary table stations.
Our fine mist sprayer and spray pump assembly machines put mist sprayers and perfume pumps together from their separate parts, or assemble just the pump core as a separate step, and test the sprayers after assembly. Each machine is set up for your own sprayer parts.
Machines for fine mist sprayers and spray pumps
Bowl-Fed Fine Mist Sprayer Assembly Machine
Vibratory bowls feed the parts, and a rotary table assembles each sprayer station by station.
- 60–70 pcs/min (standard model, 6-part sprayer with dip tube)

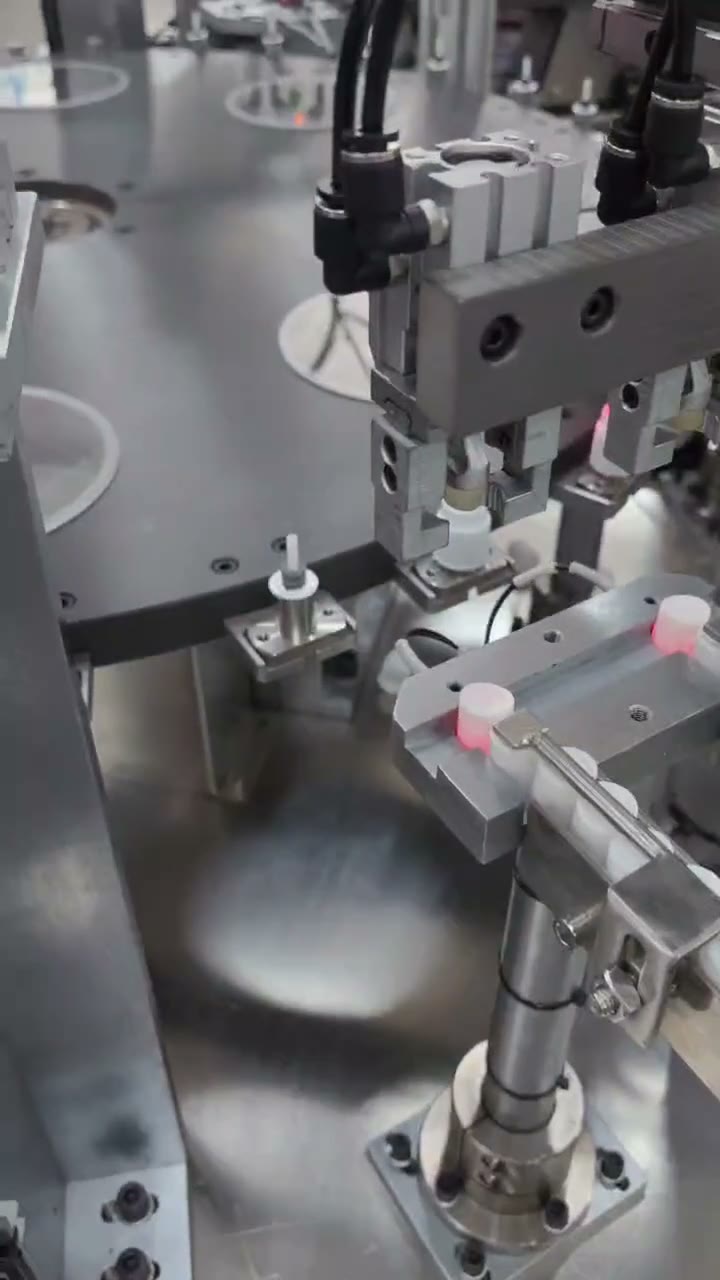

AM-TY-01 Spray Pump Assembly Machine
Assembles fine mist spray pumps from their separate parts.
Perfume Pump Assembly Machine
Assembles perfume pumps, set up for your own pump parts.

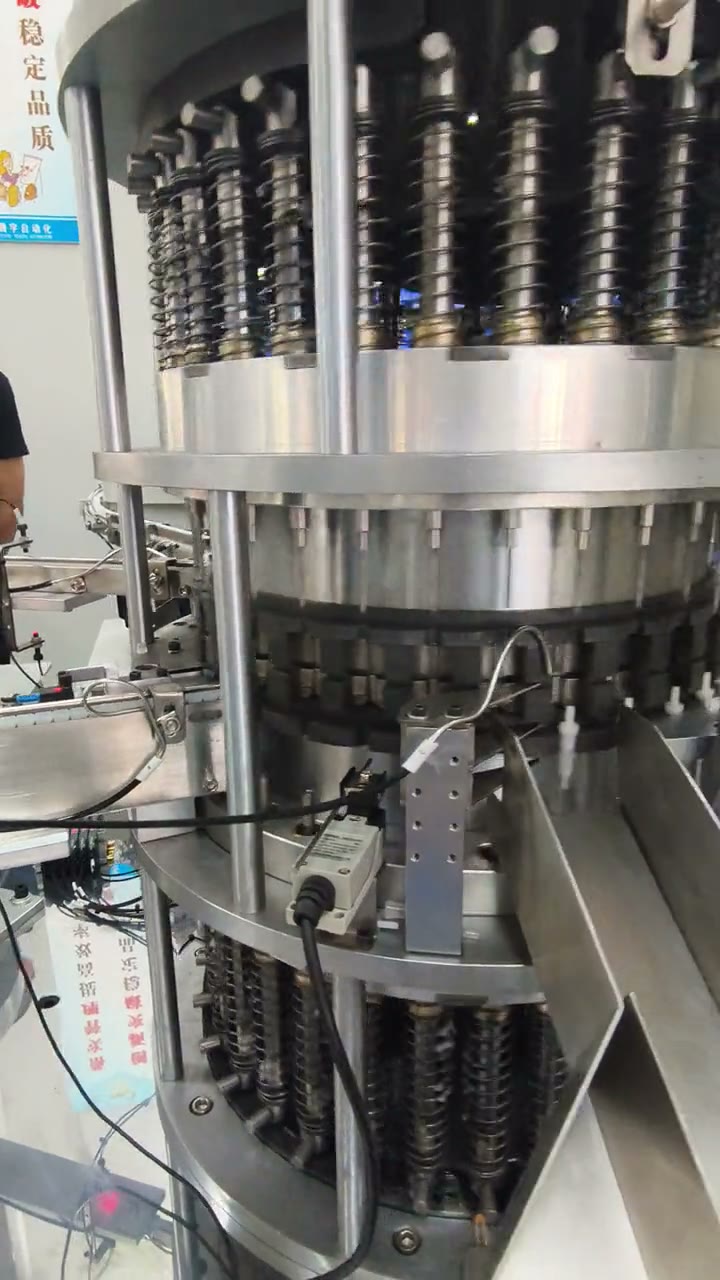

Mist Sprayer Pump Core Assembly Machine
Assembles only the pump core, one step before the full sprayer.
- 100 pcs/min (standard model, 5-part pump core)
Sprayer Testing Machine
Tests sprayers after assembly.
- 100 pcs/min (standard model, six-station tester)
Which machine fits your mist sprayer?
Start with the step you want to do by machine.
| You need | Machine |
|---|---|
| The complete fine mist sprayer (spray pump) | Bowl-Fed Fine Mist Sprayer Assembly Machine Loose parts are fed from vibratory bowls, assembled station by station on a rotary table, and finished sprayers drop into a collection bin. The standard model, for a 6-part sprayer with dip tube, runs 60–70 pieces per minute. Also offered as our AM-TY-01 model. |
| Perfume pumps | Perfume Pump Assembly Machine Assembles perfume pumps, set up for your own pump parts. Send us your pump and we'll tell you how fast it can run. |
| The pump core only | Mist Sprayer Pump Core Assembly Machine Assembles only the pump core, one step before the full sprayer, for buyers who assemble the core and the rest of the sprayer in separate steps. The standard model, for a 5-part pump core, runs 100 pieces per minute. |
| Testing after assembly | Sprayer Testing Machine Tests sprayers after assembly. The standard model, a six-station tester, runs 100 pieces per minute. Tell us what each sprayer needs to be checked for. |
Every machine is set up for your own sprayer parts, so the speed depends on your sprayer. For trigger sprayers and lotion pumps, see our trigger sprayer assembly machines and lotion pump assembly machines.
Frequently Asked Questions
How it is assembled: How a Trigger Sprayer Is Assembled, Step by Step
Send us your sprayer
Drawings or photos of each part and the finished sprayer, plus your target output. We'll tell you whether it can be assembled, and how fast. Get an exact quote within 24–48 hours.
