Watering Can Sprayer Assembly Machine

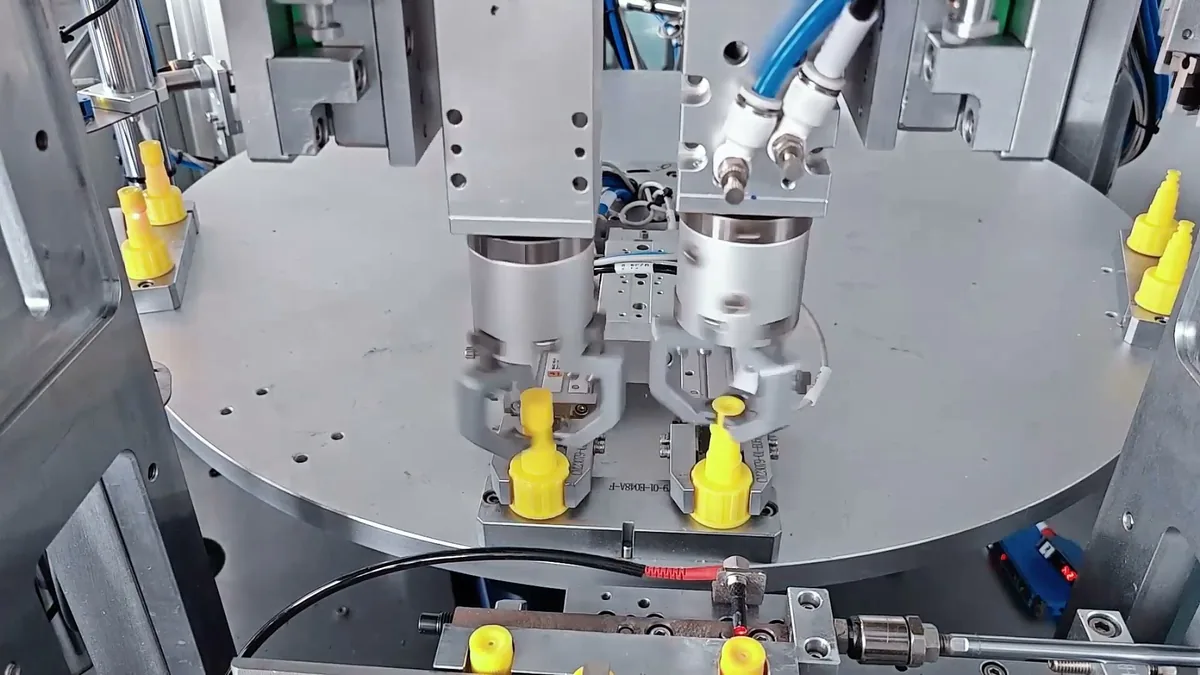

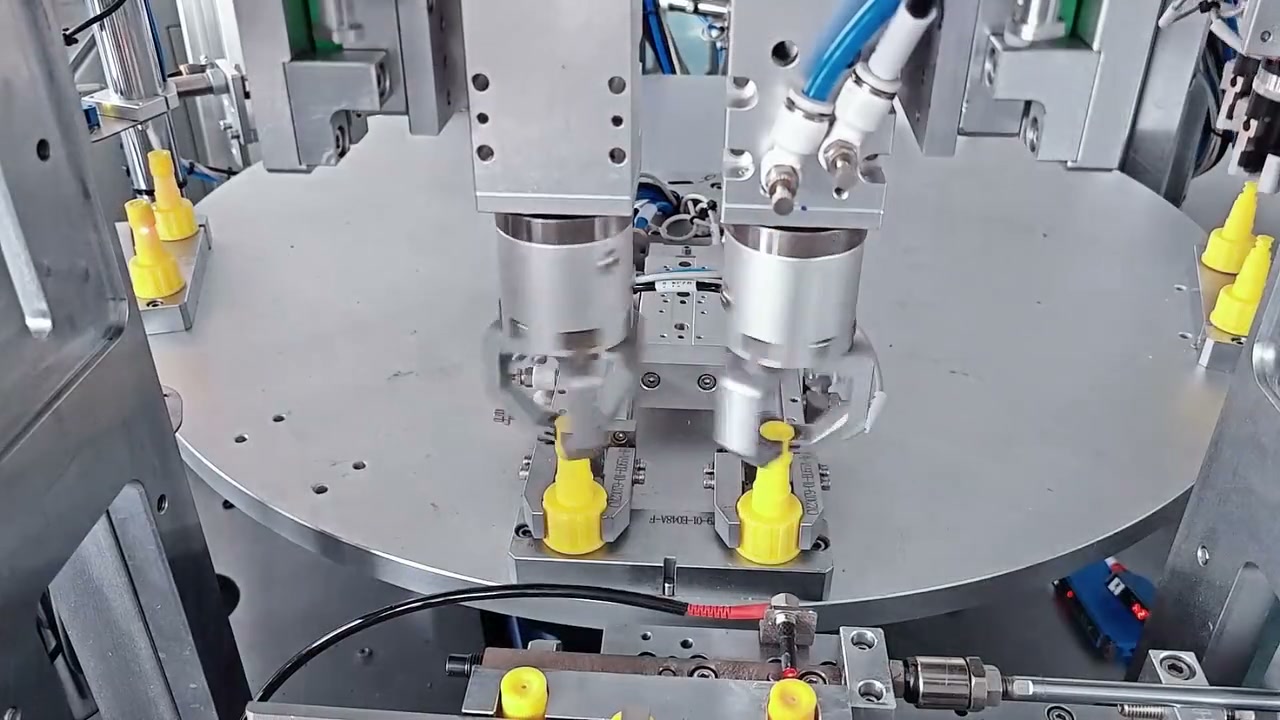

Grippers load yellow sprayer caps; pump tops move two by two down the line.
This line assembles the pump top of hand pressure sprayers, the small pump-up watering cans used in homes and gardens.

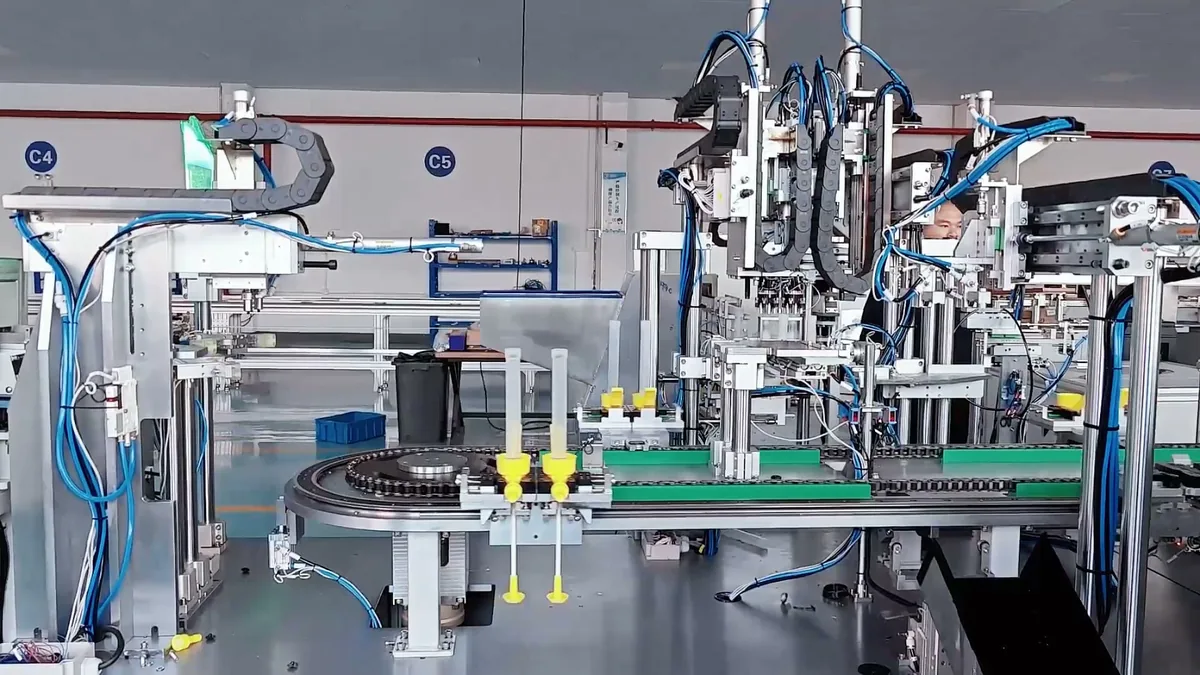

The pump top shown has a yellow cap with a lever and a spout, a white plunger rod and a clear pump tube. On a rotary table, twin grippers place the yellow caps into the fixtures, and the next stations fit the rod and the tube. The parts then travel two at a time along a chain conveyor, and finished pump tops leave on the outfeed belt. A typical line runs about 20–30 pump tops per minute.
Send drawings or photos of your sprayer parts, and we'll tell you whether we can assemble them, and how fast.
Key Points
- Assembles the pump top of hand pressure sprayers
- Twin grippers load the caps on a rotary table
- Plunger rod and pump tube fitted at the following stations
- Parts travel two at a time on a chain conveyor
- About 20–30 pump tops per minute (typical)
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 20–30 pcs/min (typical, two at a time on the line shown) |
| Sprayer parts | Cap with lever and spout, plunger rod and pump tube (on the sprayer shown) |
| Layout | Rotary table with twin grippers, chain conveyor with stations, outfeed belt |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures, from the line shown. Every line is set up for your own sprayer parts.
Suitable Parts
Pump tops for hand pressure sprayers: a cap with a lever and a spout, a plunger rod and a pump tube.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
