Catheter & Medical Tube Assembly Machines

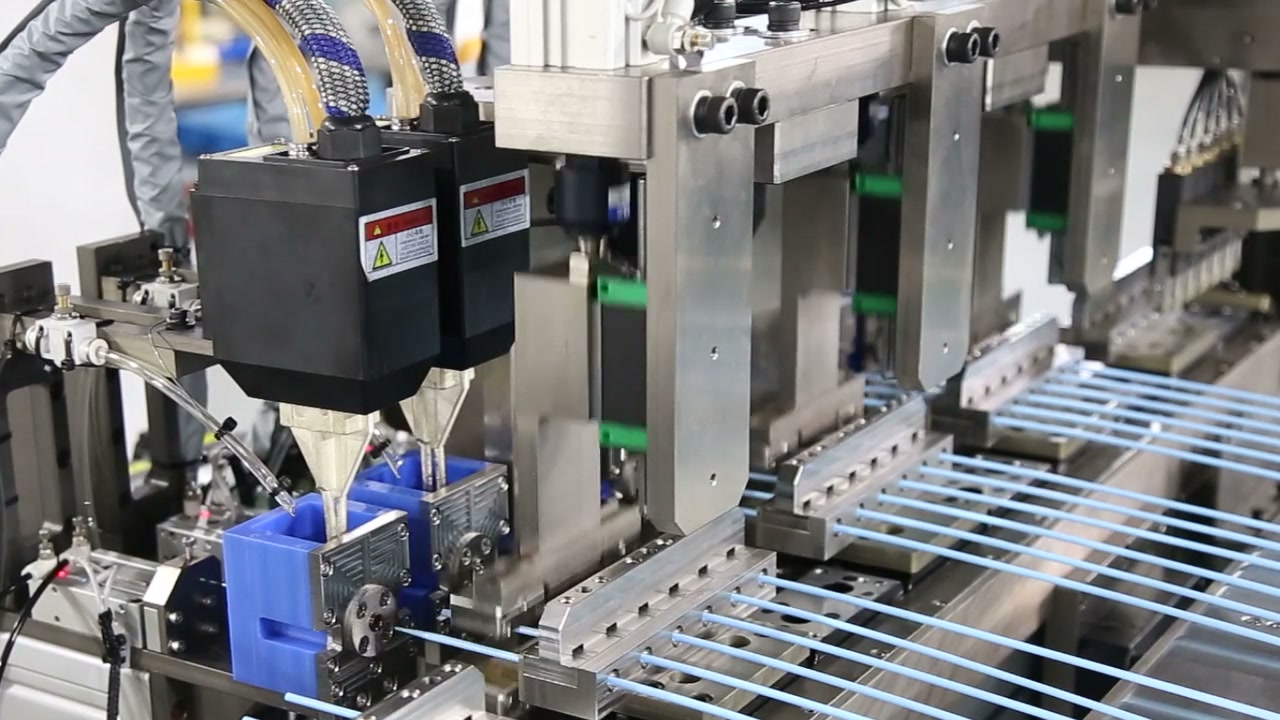

Thin blue tubes ride carriers through a row of tip-forming heads to an outfeed belt.
Our catheter machines cover three jobs: assembling catheter connectors, heat-forming the tips of medical tubes, often called catheter tipping, and closing the ends of PVC tubing by hot melting. Each machine is set up for your own parts.
Machines for catheter connectors, catheter tipping and tube end closing
Catheter Connector Assembly Machine
A vibratory bowl feeds the connectors, and grippers put each connector together on a rotary table.
- 60–80 pcs/min (standard model, two per cycle)
Catheter & Medical Tube Tipping Machine
Heat-forms the tips of medical tubes, six tubes per cycle on precision carriers.
- 60–80 pcs/min (standard model, six per cycle)
Medical PVC Tube End Closing Machine

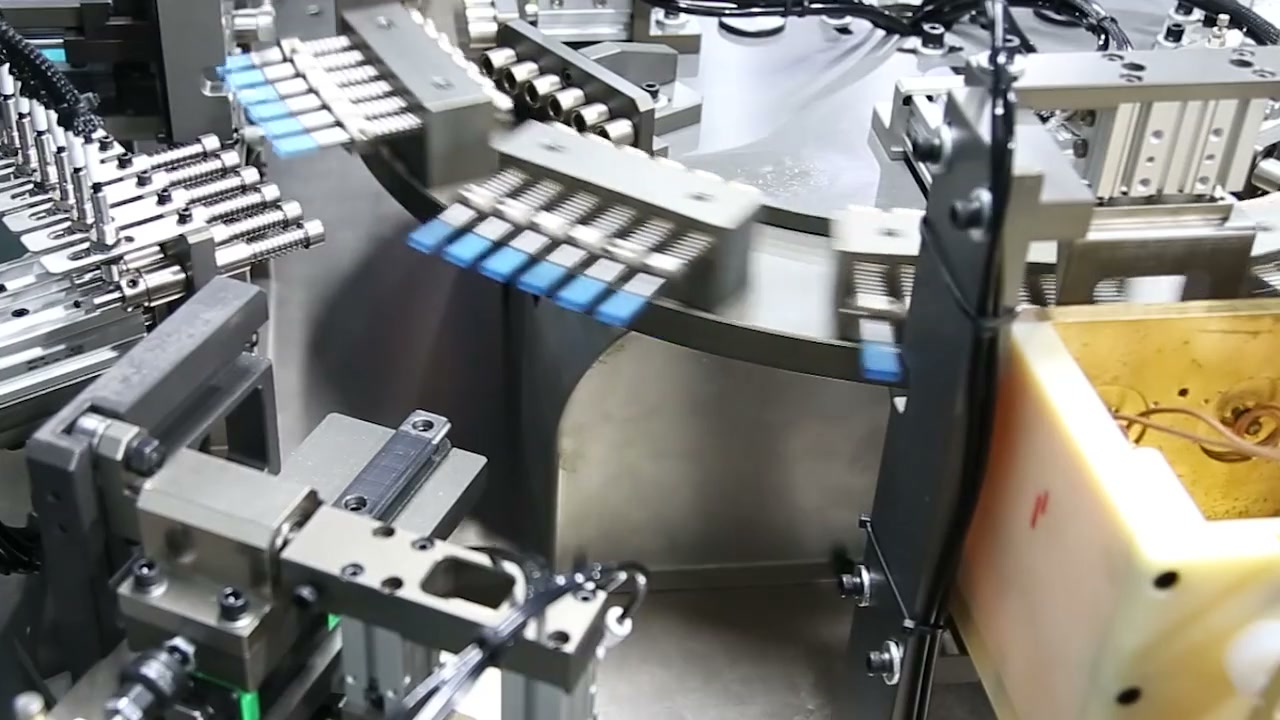

Hot-melt heads fuse the tip of each PVC tube, six tubes per cycle on a rotary table.
- 35–45 pcs/min (standard model, six per cycle)
Which machine fits your part?
Start with the job you want to automate.
| You need | Machine |
|---|---|
| Assembling catheter connectors | Catheter Connector Assembly Machine A vibratory bowl feeds the connectors, and grippers place the parts into fixtures on a rotary table, two connectors per cycle. The standard model runs 60–80 pieces per minute and measures 1800 × 2000 × 2150 mm (L × W × H). |
| Forming the tips of medical tubes | Catheter & Medical Tube Tipping Machine Tubes ride precision carriers, six per cycle, through a row of heated forming heads, and finished tubes go out on a belt. The standard model runs 60–80 pieces per minute and measures 3600 × 2500 × 1900 mm (L × W × H). |
| Closing the ends of PVC tubing | Medical PVC Tube End Closing Machine Rows of PVC tubes ride fixtures on a rotary table, six per cycle, and hot-melt heads press down to fuse the tip of each tube. The standard model runs 35–45 pieces per minute and measures 2300 × 2000 × 1700 mm (L × W × H). |
Every machine is set up for your own parts, so the speed depends on your part and output. For urine bags, drug dispensers and other medical parts, see our medical device assembly machines.
Frequently Asked Questions
How it is assembled: How Syringes and Needles Are Assembled by Machine
Send us your part
Drawings or photos of your connector parts, or of your tube and the tip you need, plus your target output. We'll tell you whether it can be done by machine, and how fast. Get an exact quote within 24–48 hours.
