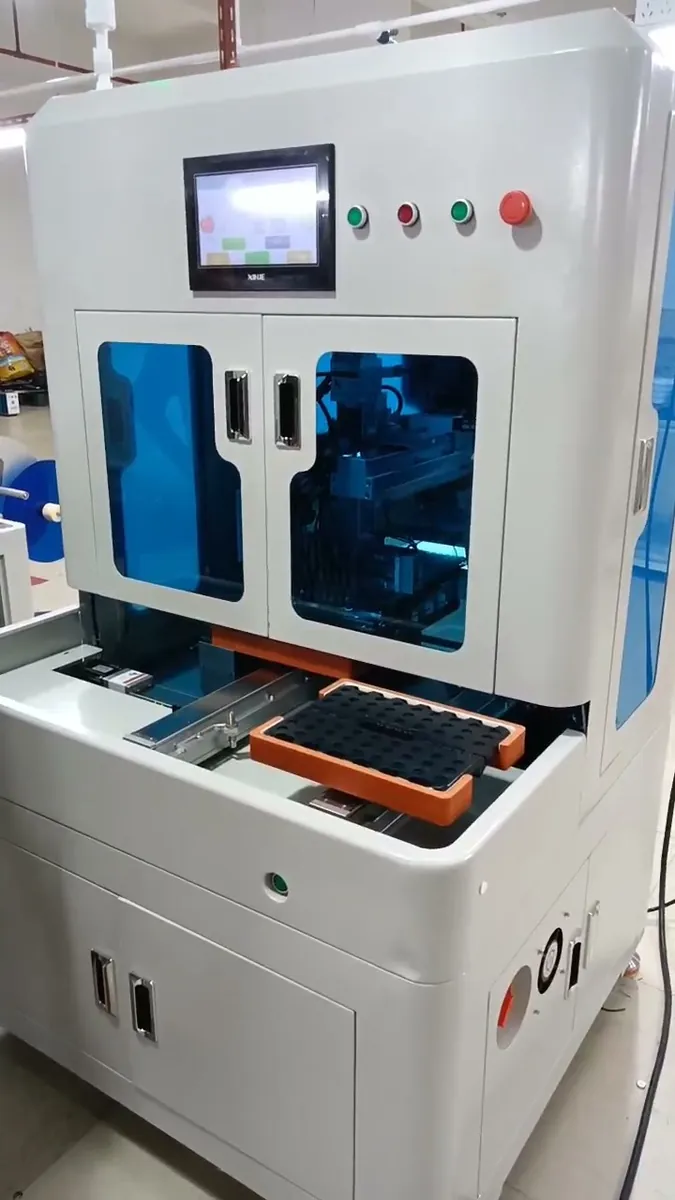

Plastic Stool Foam Pad Assembly Machine

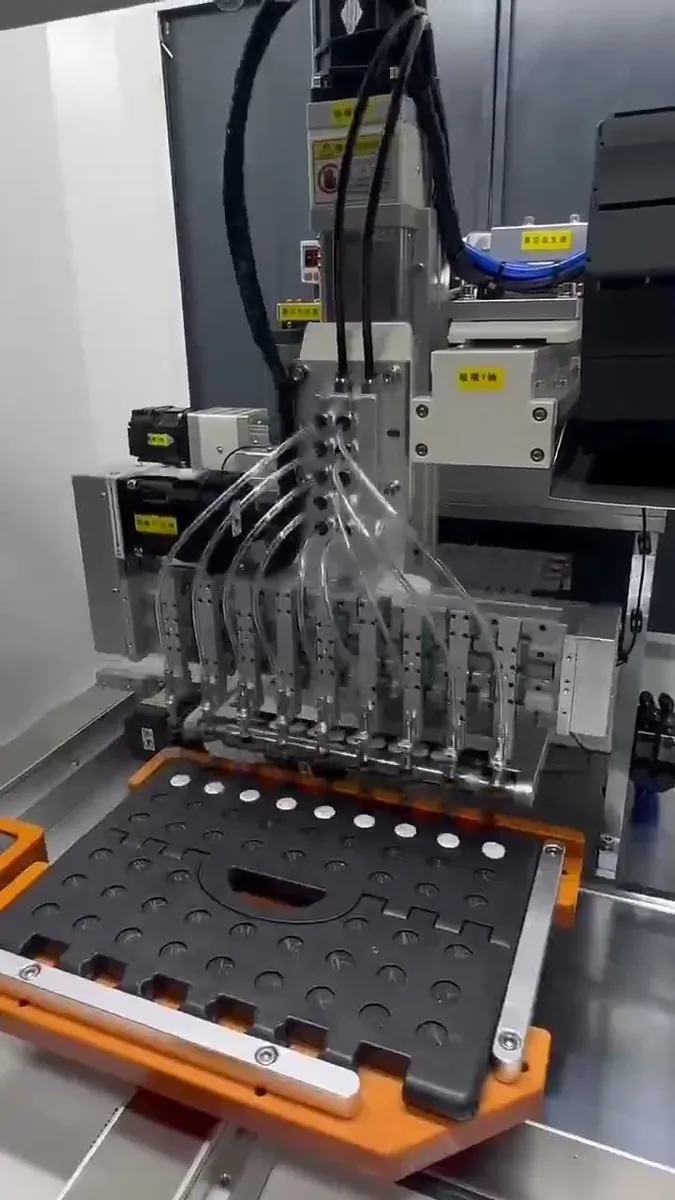

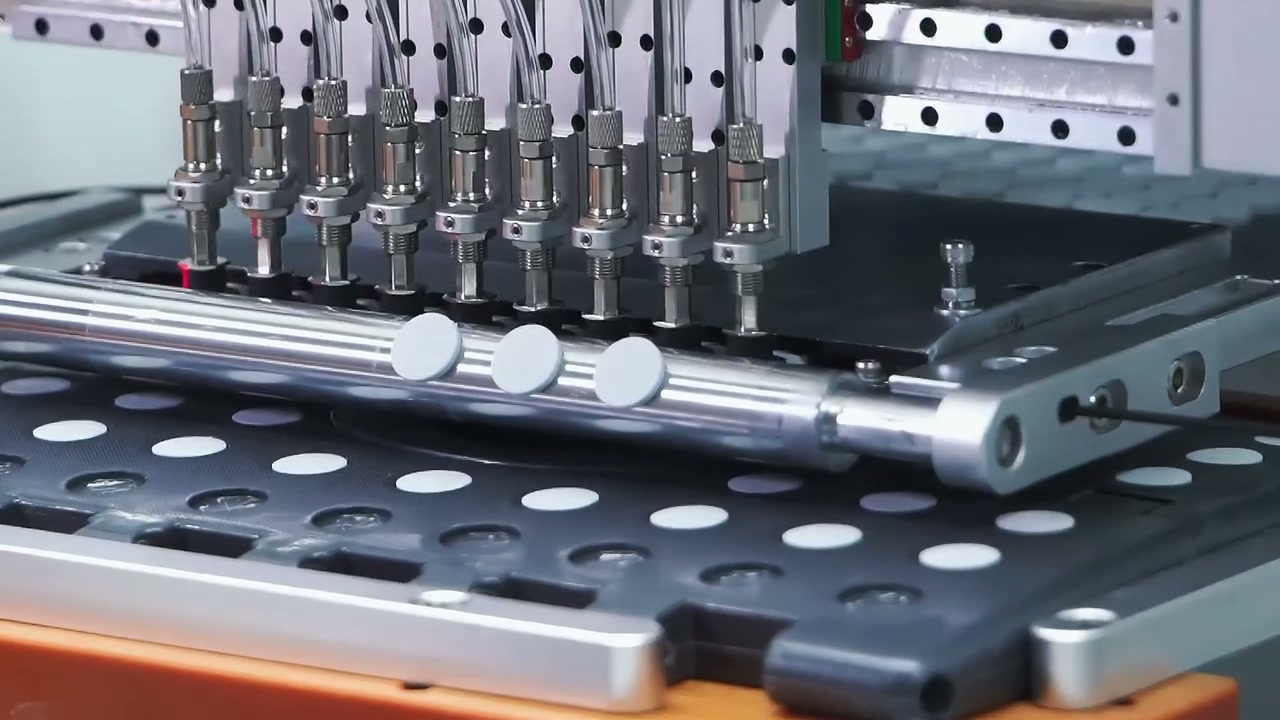

Nine suction nozzles place white pads row by row; the machine has two stations.
This machine sets EVA foam pads onto plastic stools, placing a full row of pads at a time.

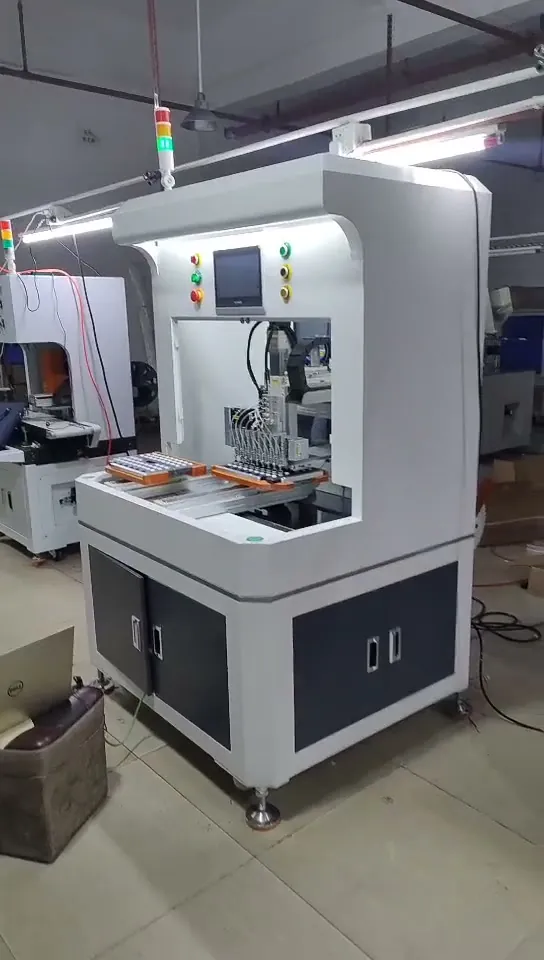

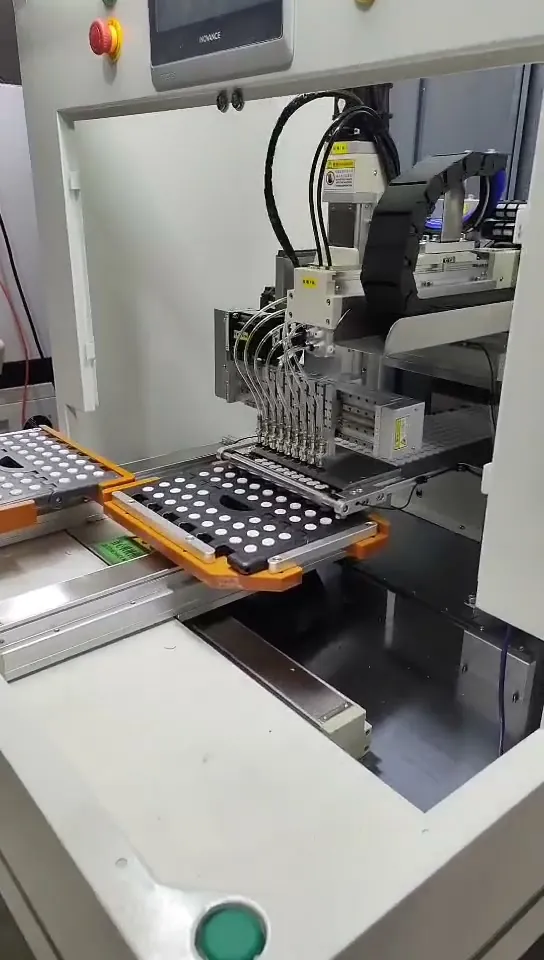

The standard model, the AM-JRF-912, is a double-station laminator: nine suction heads on a servo-driven gantry place the pads at one station while the other is loaded, up to 10,800 pads per hour.
It also fits EVA foam into blister boxes, at the same even spacing.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Key Points
- Up to 10,800 pads per hour, nine heads (standard model)
- Double station: one station runs while the other is loaded
- Set up for your own stool parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Model | AM-JRF-912 (standard model) |
| Output | Up to 10,800 pads per hour |
| Heads | Nine suction heads |
| Stations | Two (double station) |
| Motion | 7-axis servo |
| Pass rate | 99% |
| Machine size | 1200 × 1100 × 2000 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own stool and pad.
Suitable Parts
Plastic stools, including folding stools, and blister boxes that take EVA foam pads.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
