Custom Automation Equipment and Custom Assembly Machines
When your part fits no standard machine, we supply one set up around it.

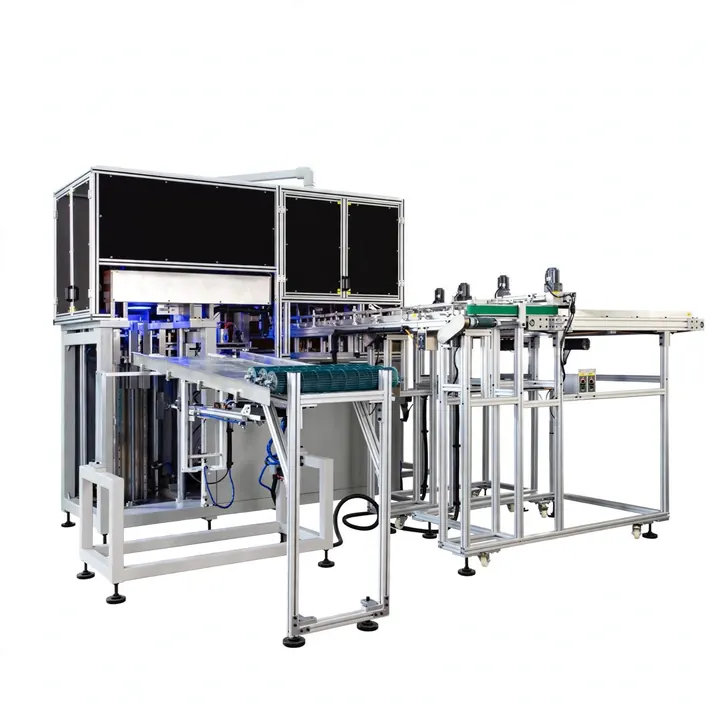

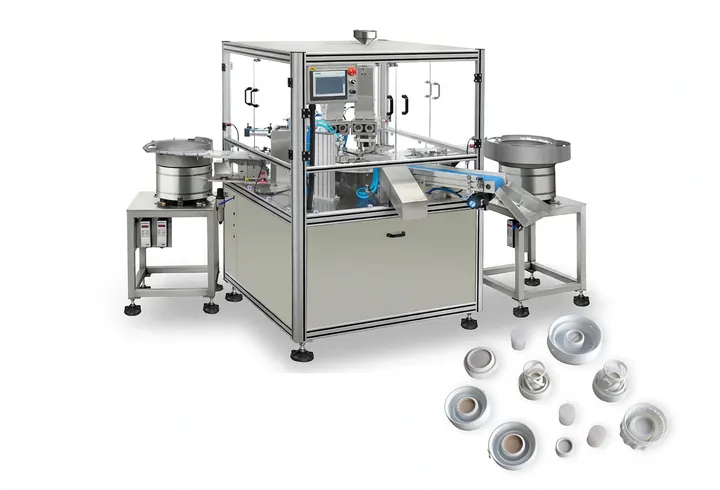

Custom automation equipment for jobs that standard machines do not cover: desiccant cap assembly, desiccant filling and capping, 5-gallon cap sealing, top and bottom capping with vision, a high-speed rotary assembly platform, box lid assembly, a custom printing and assembly line, chewing gum packaging, impeller welding, medical wire winding, lab sample cutting, robotic casting grinding, wafer loading and punching. Each machine is set up around the customer's own part and process.
Send us your part drawing or photos. We check which machine fits, then send you a quote.
Filling, Sealing and Capping

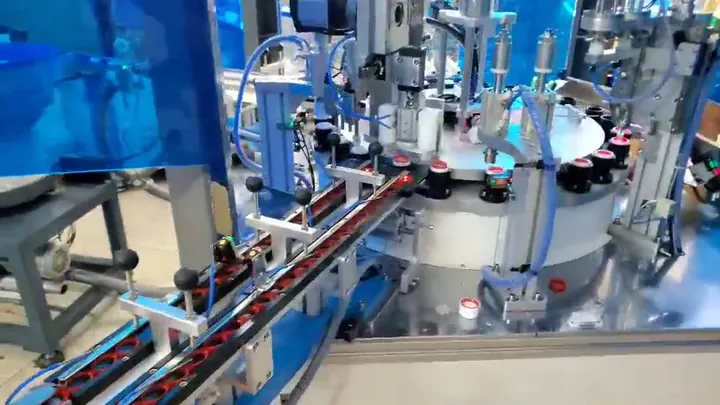

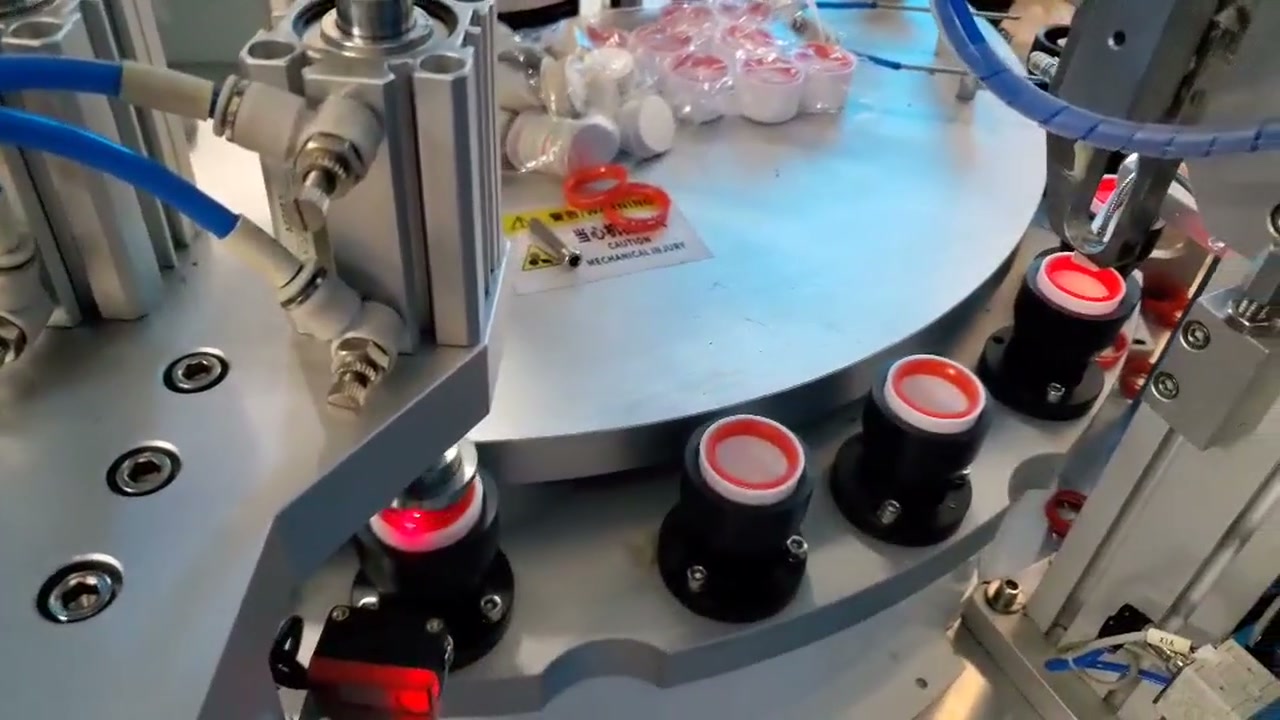

Desiccant Cap Assembly & Filling Machine
Fills desiccant and fits the outer cap, inner cap and O-ring of each cap.

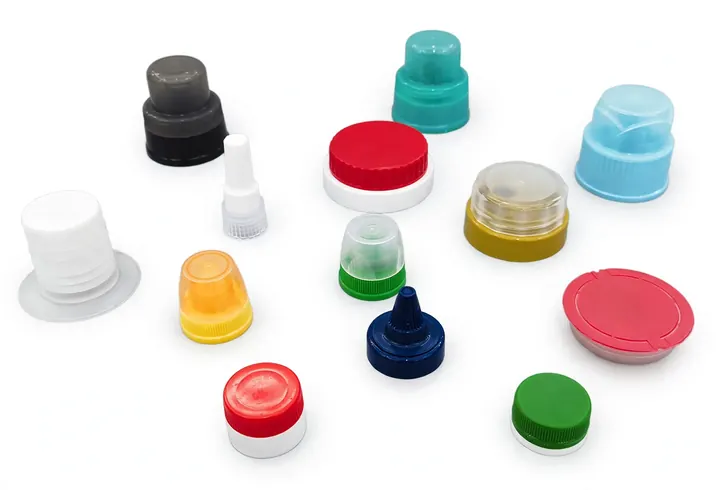

Top & Bottom Capping Machine with Vision
Fits top and bottom caps in an intermittent cycle, with vision checking.
Assembly Platforms
Rotary Assembly Platform
A high-speed rotary platform for assembling parts station by station.

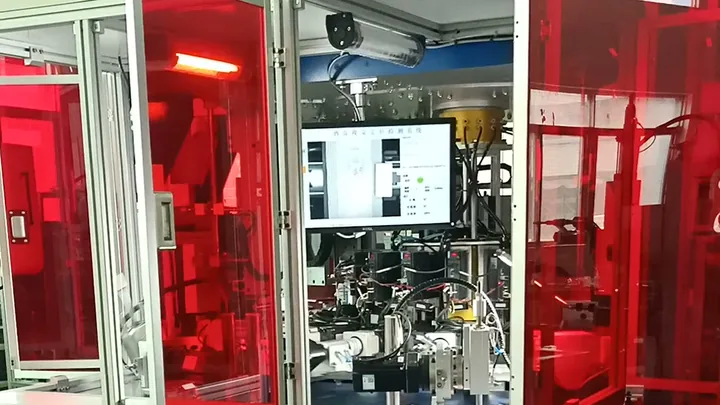

Custom Printing & Assembly Line
Screen prints, UV-cures and robot-handles spirits packaging parts in one line.
Sampling, Grinding, Punching and Handling

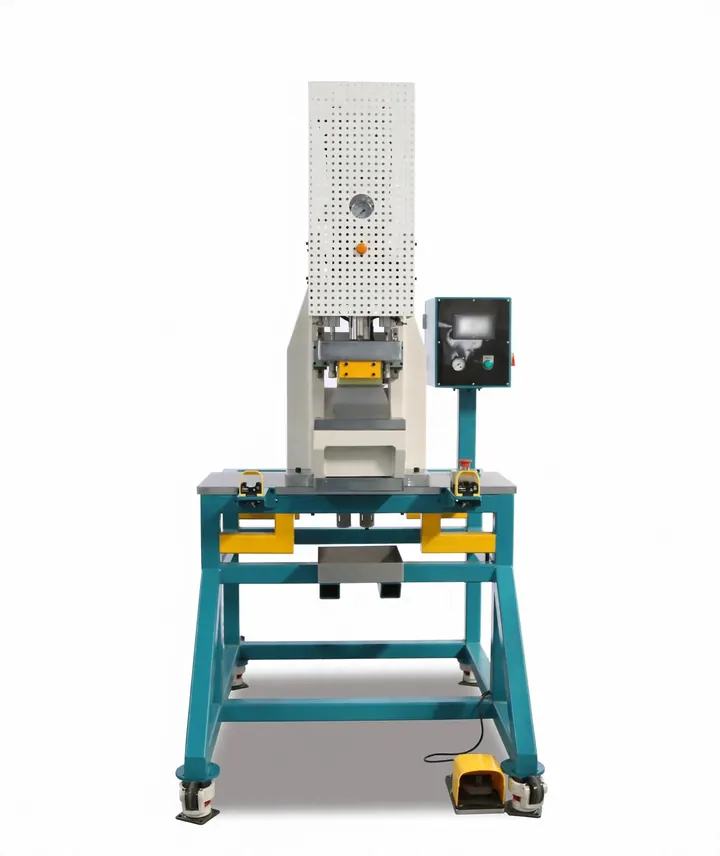

Lab Sample Cutting Press
Air-driven press that cuts test samples from sheet material.

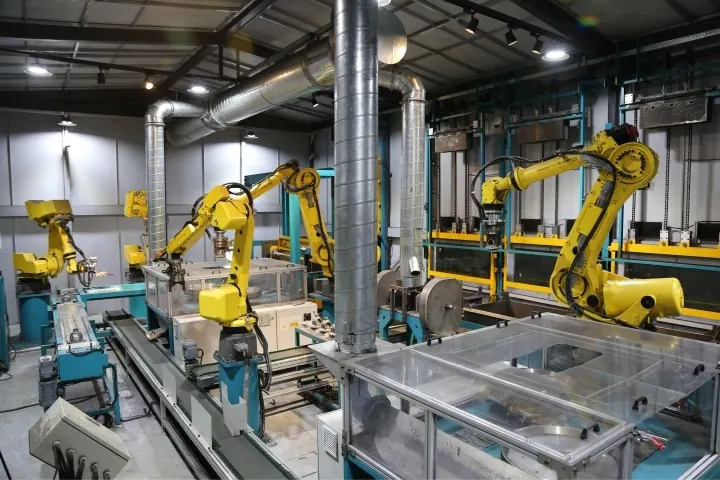

Robotic Casting Grinding Cell
Robots hold automotive castings against grinding wheels and move them between stations.

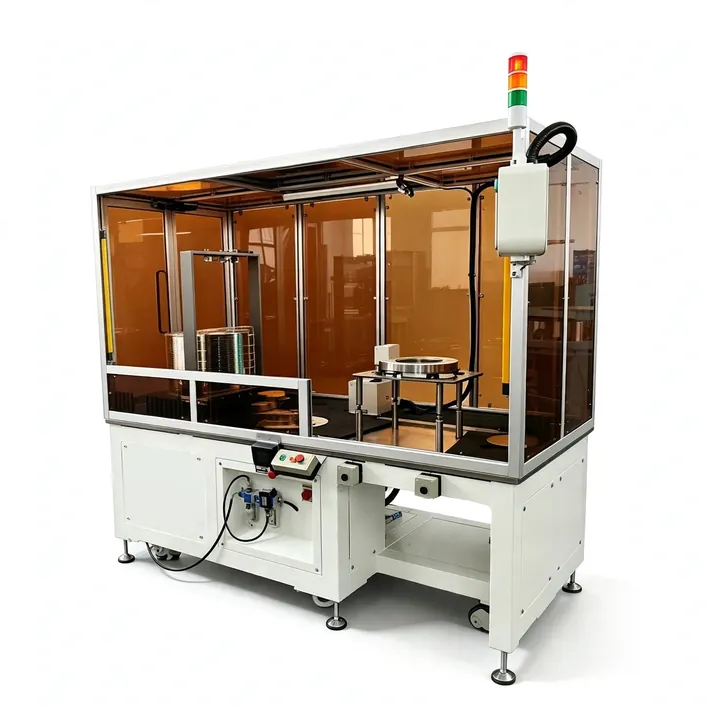

Wafer Sampling & Loading Machine
Robot arm takes wafers from the cassette for sampling inspection.
Welding and Winding

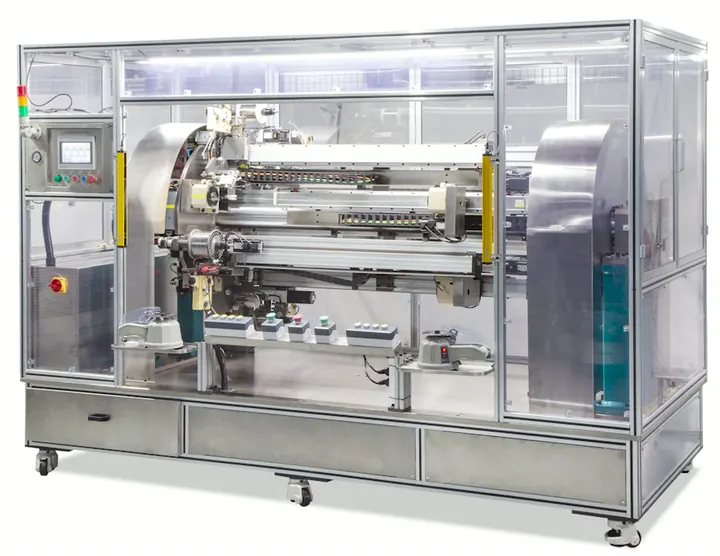

Medical Wire Winding Machine
Winds fine wire along a mandrel adjustable up to 1300 mm.
Send your part and tell us the process you need and we'll tell you which one fits.
Typical specifications
| Machine | Typical output |
|---|---|

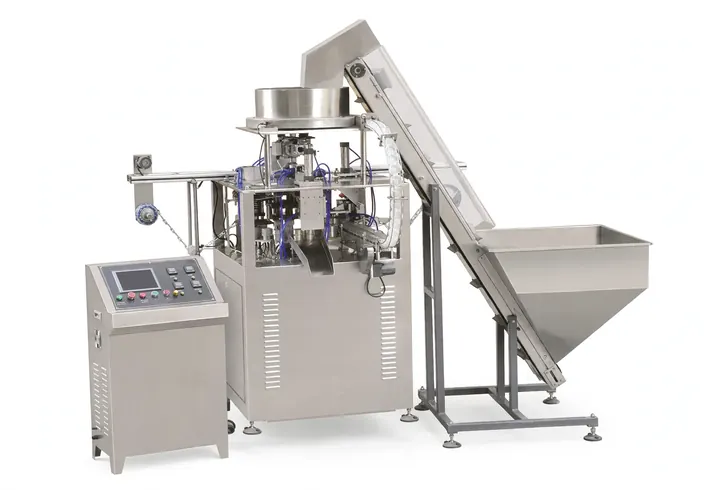

| 5-Gallon Cap Sealing Machine | 2,400 per hour (two stations) |
| Desiccant Cap Assembly & Filling Machine | About 5,000 caps per hour (typical) |
| Desiccant Filling & Capping Machine | 3,600–4,000 per hour |
| Top & Bottom Capping Machine with Vision | 6,000–10,000 per hour |
| Custom Printing & Assembly Line | About 1,200–1,800 pcs/hour (typical, depends on part size and the number of print colours) |
| Wafer Sampling & Loading Machine | 3 pcs/min |
| Rotary Assembly Platform | 20–50 pcs/min (typical, depends on part and configuration) |
| High-Speed Box Lid Assembly Machine | 20–40 pcs/min (typical, depends on part and configuration) |
| Chewing Gum Packaging Equipment | 60–120 pieces/min (typical, depends on part and configuration) |
| Configuration | Set by your part and process |
Figures are taken from each machine's own page. Every machine is set up around your own part and process.
Custom Machines We Have Supplied

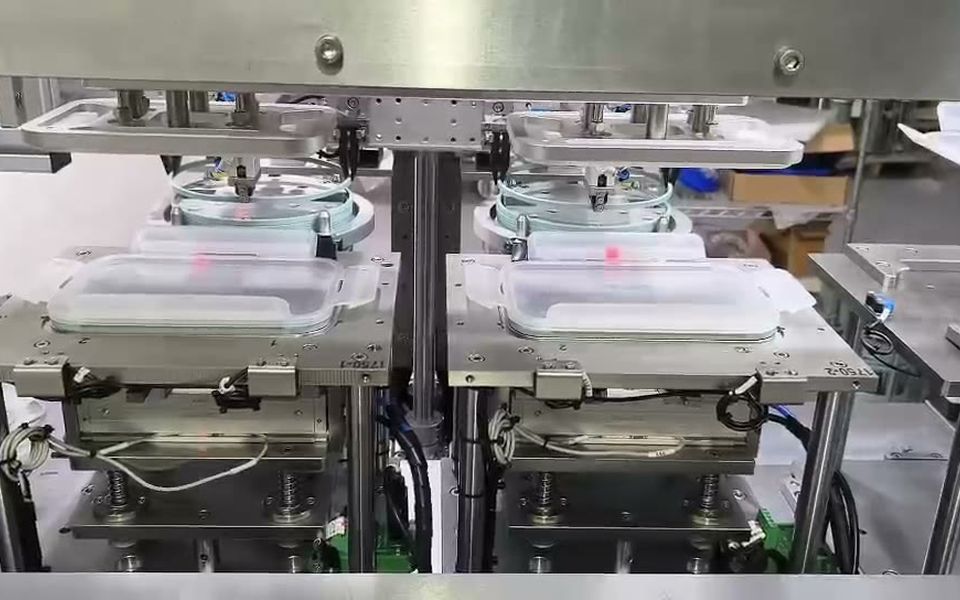

This machine was set up around that customer's container lids. Send your part and the steps you need, and we'll tell you whether a machine can do them, and how fast.
How It Works
- 1
Send your part.
Upload a drawing or photos of each part and the finished product.
- 2
We find the machine that fits.
We look at your parts and tell you which machine can assemble them, and how fast.
- 3
Get your quote.
We send an exact quote within 24–48 hours once we have your part details.
- 4
Installation and training.
We install the machine at your site, commission it and train your team on site.
Frequently Asked Questions
How to choose: How to Choose an Automatic Assembly Machine
Get an Exact Quote within 24–48 Hours
Send us your part drawing or photos and the steps you need. We check which machine fits, then send you a quote.
