Wafer Sampling & Loading Machine

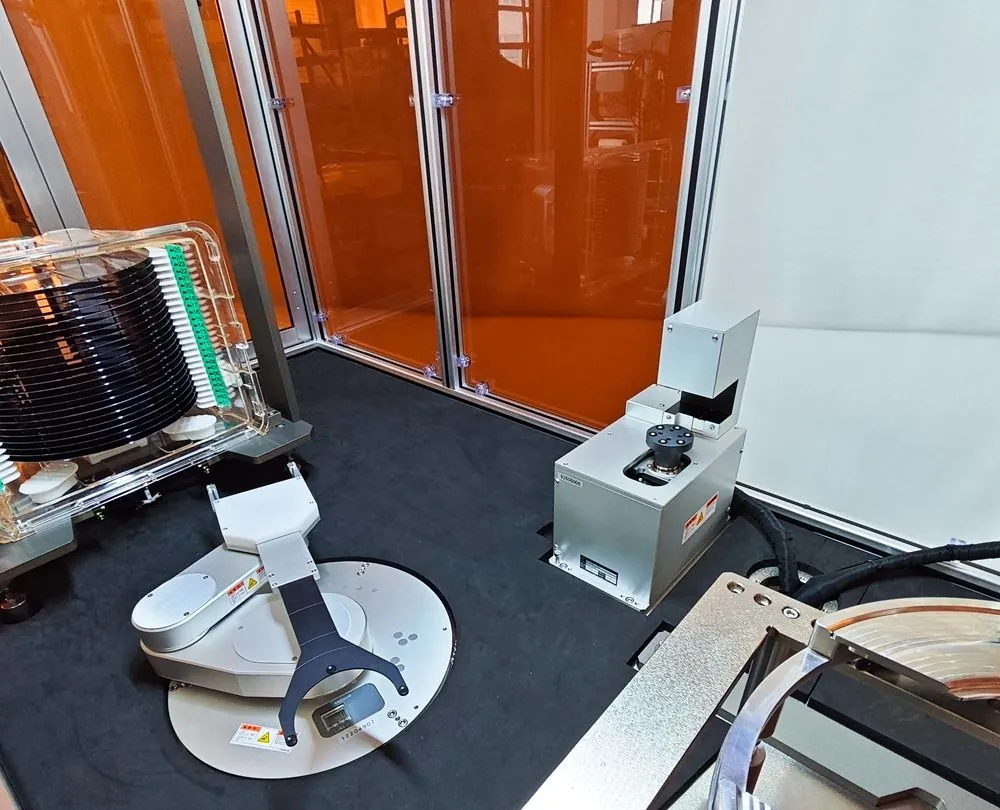

A robot arm reaches into the wafer cassette, carries each wafer to the inspection stage and comes back for the next.
This machine takes wafers out of their cassette for sampling inspection and loads them onto the inspection stage.

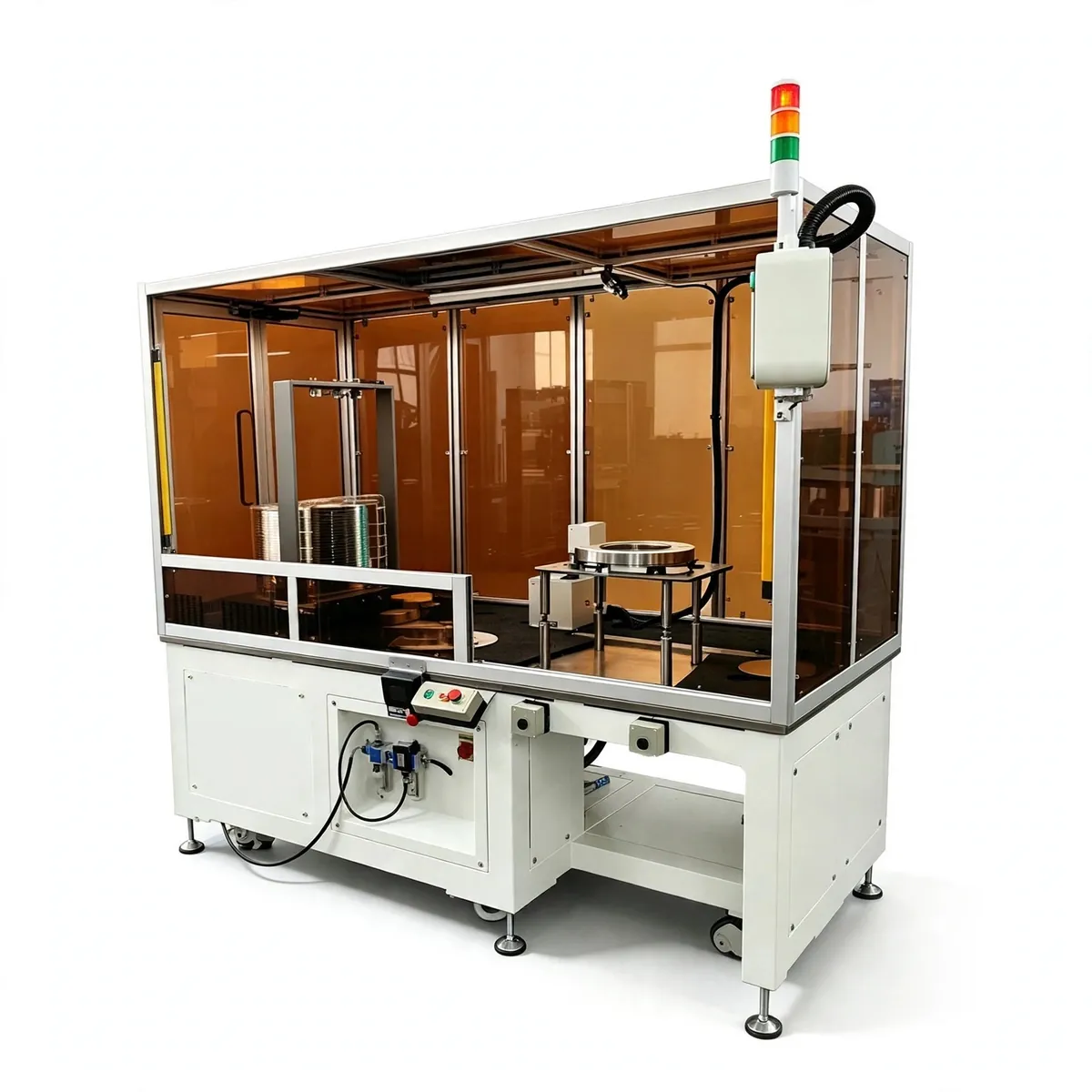

The model pictured uses a robot arm inside an amber-shielded enclosure and handles 3 wafers per minute.
Send us your wafer size, cassette type and what you need to check, and we'll tell you whether it fits.
Overview
Key Points
- Robot-arm wafer handling for sampling inspection
- 3 wafers per minute (model pictured)
- 1800 × 800 × 1800 mm
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Output | 3 pcs/min |
| Type | Handling and inspection platform |
| Power supply | AC 380 V |
| Air supply | 0.4–0.6 MPa |
| Machine size (L × W × H) | 1800 × 800 × 1800 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
What It Runs
Suitable Parts

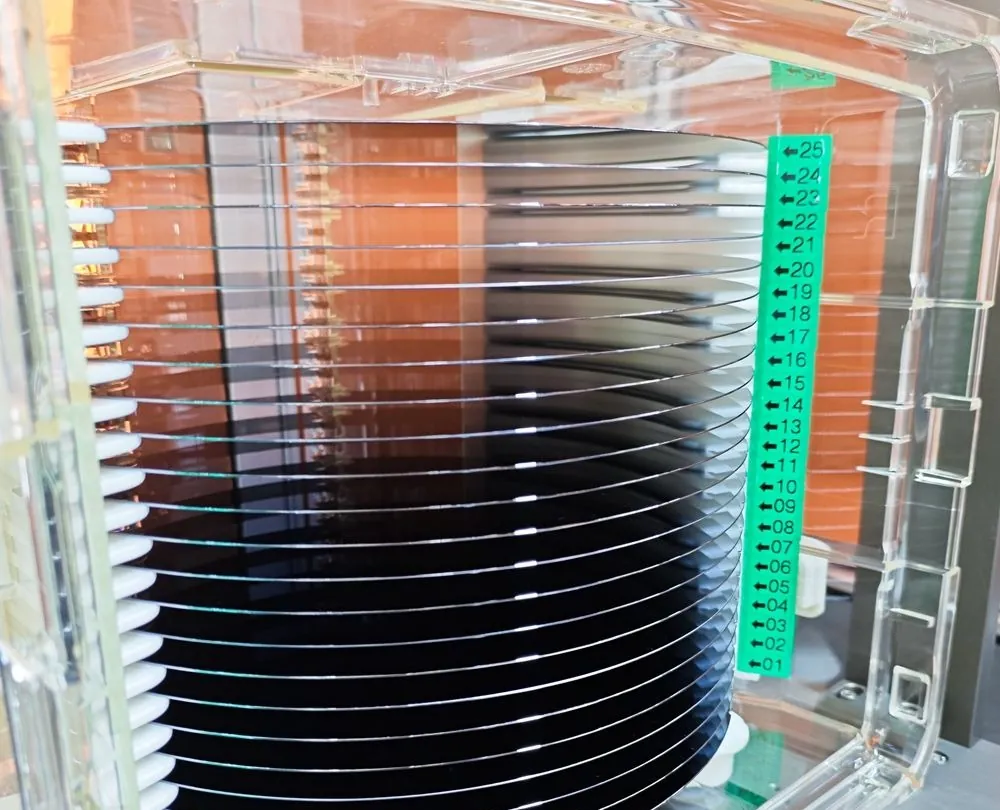

Wafers in cassettes.
Answers
Frequently Asked Questions
Your wafer size, the cassette you use, what needs checking and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on the wafer, the cassette and the checks you need. Send us those details, and we'll send an exact quote within 24–48 hours.
The model pictured handles 3 wafers per minute. Your machine is matched to your wafers and the output you need.
Each wafer sampling & loading machine is made to your parts by a long-term partner factory. We choose the machine for your part, install and commission it on site, train your team and supply the spare and wear parts, so after-sales goes through one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine fits, then send you a quote.
