Cap Slitting & Folding Machine

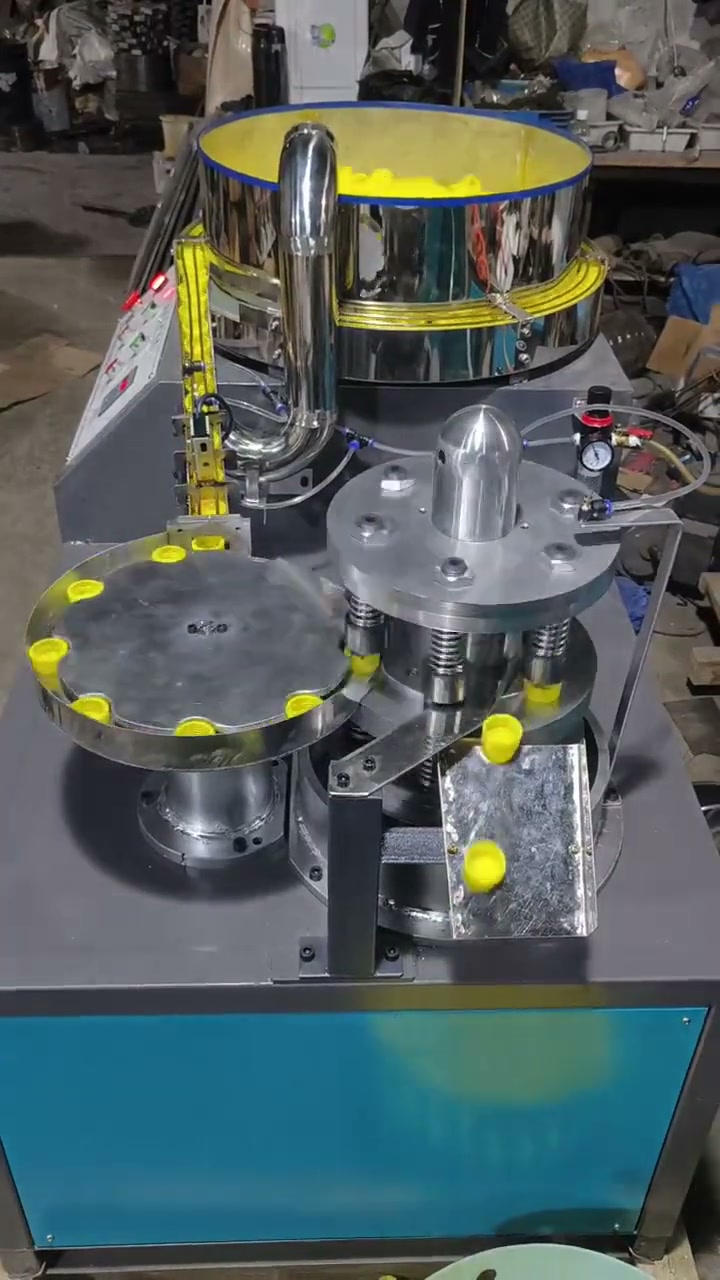

Yellow caps feed from the bowl into the turret and drop out finished.
This machine slits and folds the tamper-evident band on moulded plastic caps.

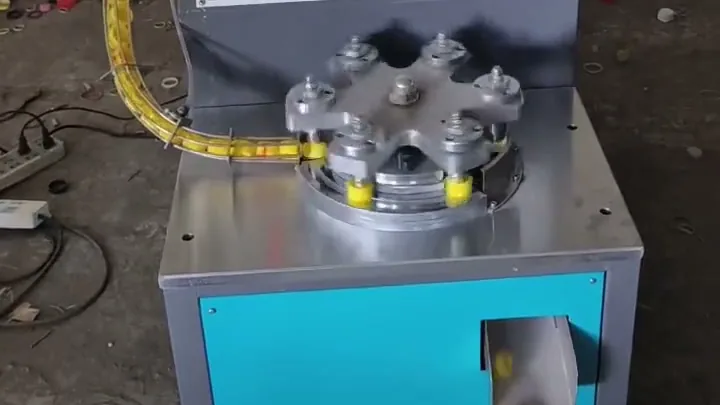

Caps run from a vibratory bowl on top of the machine down a track into a turret, where spring-loaded heads work each cap in turn before it drops into the bin. We supply a slitting machine, a folding machine, or one machine that does both, with a cap elevator that lifts caps from a floor hopper into the bowl. A typical machine runs about 15,000–25,000 caps per hour.
Send us a sample cap, or a drawing or photos of it, and we'll tell you whether it fits, and how fast.
Key Points
- Slits and folds the tamper-evident band on plastic caps
- Slitting, folding, or both on one machine
- About 15,000–25,000 caps per hour (typical)
- Caps fed from a vibratory bowl, filled by a cap elevator from a floor hopper
- Exact quote within 24–48 hours once we have your cap details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 15,000–25,000 pcs/hour (typical, depends on cap size) |
| Functions | Slitting, folding, or slitting and folding on one machine |
| Cap feeding | Vibratory bowl on the machine; cap elevator from a floor hopper |
| Power | About 1–1.5 kW (single-function machine) |
| Compressed air | About 100 NL/min |
| Weight | About 200–350 kg (single-function machine) |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up for your own cap and output.
Suitable Parts
Moulded plastic caps with a tamper-evident band.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
