Cosmetic Packaging Assembly Machines
Tube Capping Machine for Squeeze Tubes

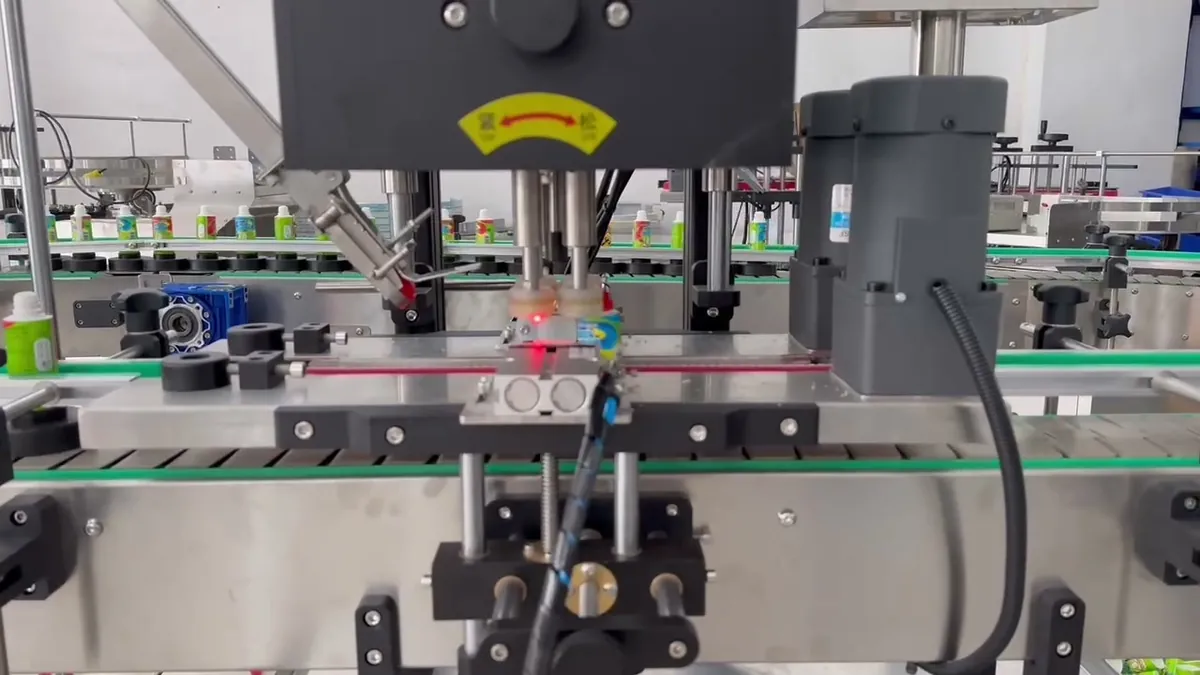

Squeeze tubes ride the conveyor under the capping head, which screws each cap on.
This machine feeds caps and screws them onto plastic squeeze tubes.
We supplied model AM-SFSG-01 to a customer in Mexico. Tubes ride a stainless steel loop conveyor in holders matched to the tube size, and a servo capping head screws each cap fully onto the neck, at 60–80 tubes per minute.
Send us a sample tube and cap, or drawings or photos, and we'll tell you whether it fits, and how fast.
Overview
Key Points
- Screw capping with an automatic cap feeder and a servo-driven capping head
- 60–80 tubes per minute (machine we supplied)
- One or two capping heads, chosen for the output you need
- Each cap screwed fully onto the tube neck, tamper-evident ring left unbroken
- Stainless steel (304) loop conveyor with holders matched to your tube
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Model | AM-SFSG-01 |
| Output | 60–80 pcs/min (machine we supplied) |
| Capping heads | One or two |
| Conveyor | 304 stainless steel loop conveyor, holders matched to your tube |
| Power supply | Built for your supply (220 V, three-phase, 60 Hz on the machine we supplied) |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the machine we supplied. Every machine is set up for your own tube and cap.
What It Runs
Suitable Parts
Plastic squeeze tubes and their screw caps, including caps with a tamper-evident ring.
Answers
Frequently Asked Questions
A sample tube and cap, or drawings or photos of them, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your tube, your cap and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
The machine we supplied runs 60–80 tubes per minute, with one or two capping heads chosen to reach the output the customer needed. Your machine is matched to your tube, cap and output.
The machine we supplied was accepted on two checks: every cap screwed fully onto the tube neck without cross-threading, and the tamper-evident ring left unbroken. Send us your tube and cap, and we'll set the machine up for them.
Each tube capping machine is made to your parts by a long-term partner factory. We choose the machine for your part, install and commission it on site, train your team and supply the spare and wear parts, so after-sales goes through one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
