Highlighter & Marker Making Machines
Seen from above, a large rotary table carries the pen parts past a ring of assembly stations, with a vibratory bowl at the back.
Our highlighter and marker making machines put markers, highlighters, fineliners and double-ended water-based pens together from their loose parts. Each machine is set up for your own pen parts, from the complete marker to the tip sleeves, end plugs and seal rings.
Machines for highlighters and markers
Marker Pen Assembly Machine
Assembles markers, highlighters, fineliners and double-ended water-based pens.
- 40–50 markers/min (standard model, whiteboard markers, 2 per cycle)
Pen Tip Sleeve & End Plug Assembly Machine
Fits the small parts of a pen: tip sleeves, grip sleeves and end plugs.
- 50–60 pcs/min (standard model, non-slip grip sleeves, 2 per cycle)

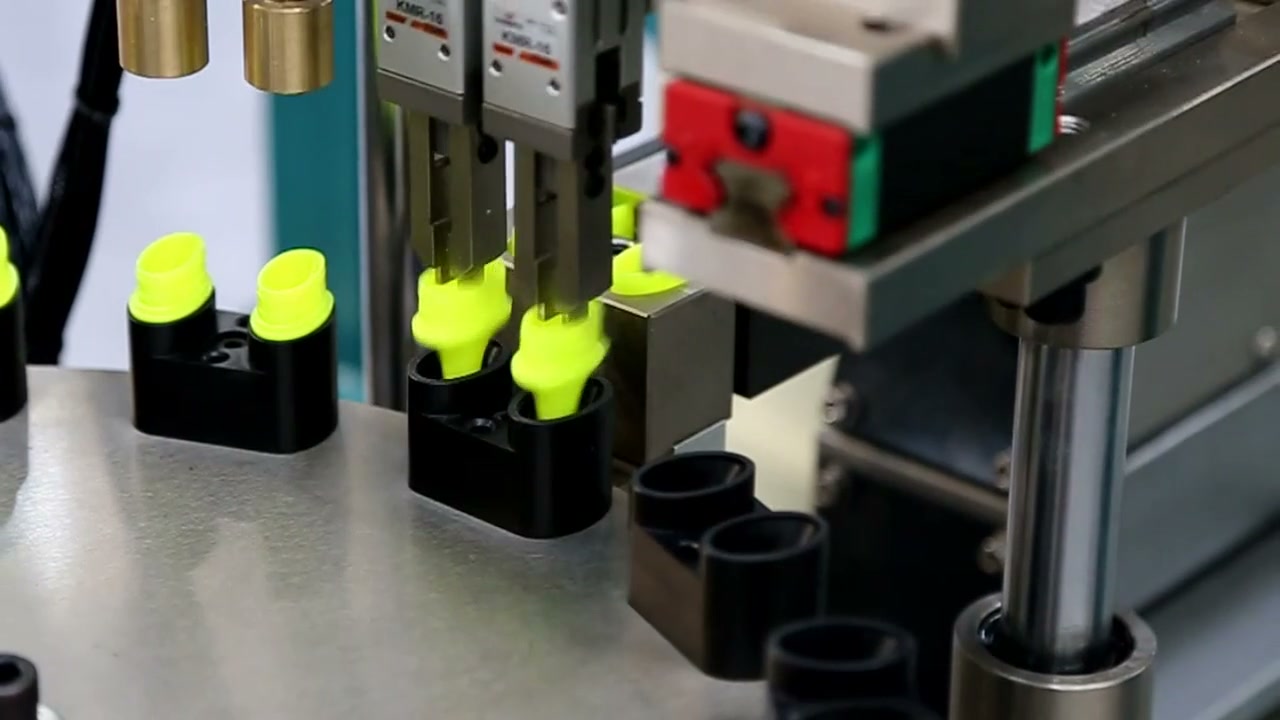

Seal Ring Assembly Machine
Fits a seal ring (O-ring) onto marker pen parts, two per cycle.
- 45–60 pcs/min (machine shown, 2 per cycle)

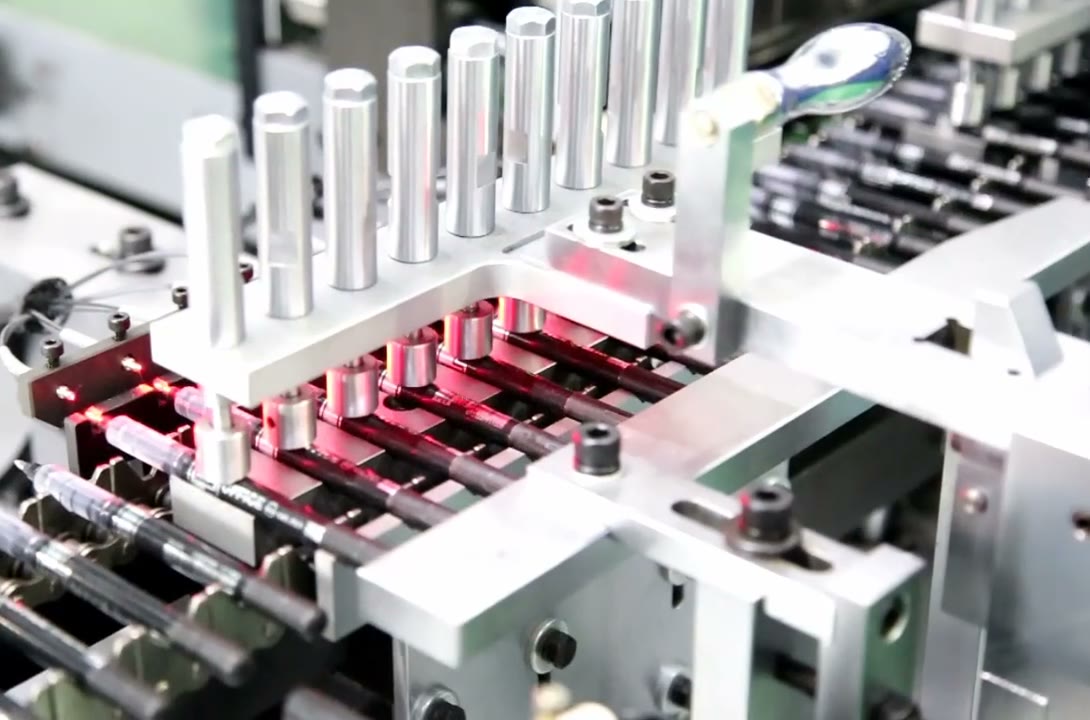

Pen Writing Test Machine
Checks refills and finished pens by drawing a test line with each one.
Which machine fits your marker?
Start with the step you want to do by machine.
| You need | Machine |
|---|---|
| The complete marker or highlighter | Marker Pen Assembly Machine Assembles markers, highlighters, fineliners and double-ended pens from their loose parts. We have supplied these machines to pen makers in Bangladesh for markers and double-ended water-based pens, in Pakistan for assembling retractable highlighter parts, and in Russia for fineliners. The standard model for whiteboard markers runs 40–50 markers per minute, two per cycle. |
| Tip sleeves, grip sleeves or end plugs | Pen Tip Sleeve & End Plug Assembly Machine Fits the small parts of a pen on a rotary table. The standard model for non-slip grip sleeves runs 50–60 pieces per minute, two per cycle. We have supplied these machines to pen makers in Pakistan and Russia. |
| Seal rings on marker parts | Seal Ring Assembly Machine Fits a clear seal ring (O-ring) into the groove of a marker pen part on a rotary table. The machine shown runs 45–60 parts per minute, two per cycle. |
| A writing test after assembly | Pen Writing Test Machine Checks refills and finished pens by drawing a test line with each one. Send us your marker and tell us what to check, and we'll tell you whether it fits. |
Every machine is set up for your own pen parts, so the speed depends on your pen. For ballpoint pens, see our ballpoint pen making machines; for refills, see our pen refill making machines.
Frequently Asked Questions
How it is assembled: How a Ballpoint Pen Is Assembled by Machine
Send us your marker parts
Drawings or photos of each part and the finished pen, plus your target output. We'll tell you whether it can be assembled, and how fast. Get an exact quote within 24–48 hours.
