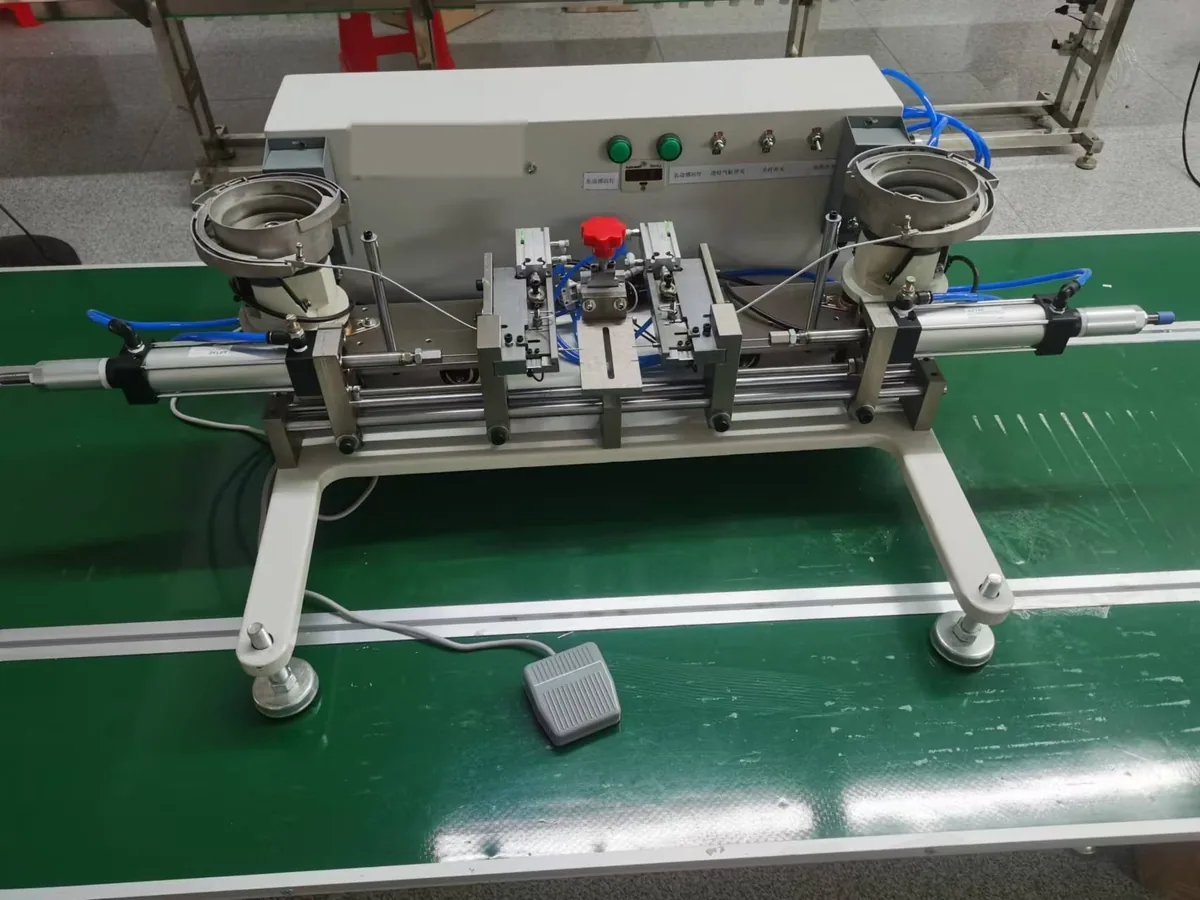

Compact Case Hinge Pin Inserting Machine
The operator places a compact case; side cylinders drive in the hinge pins.
This machine inserts the metal hinge pins that join the lid and base of compact powder and eyeshadow cases.

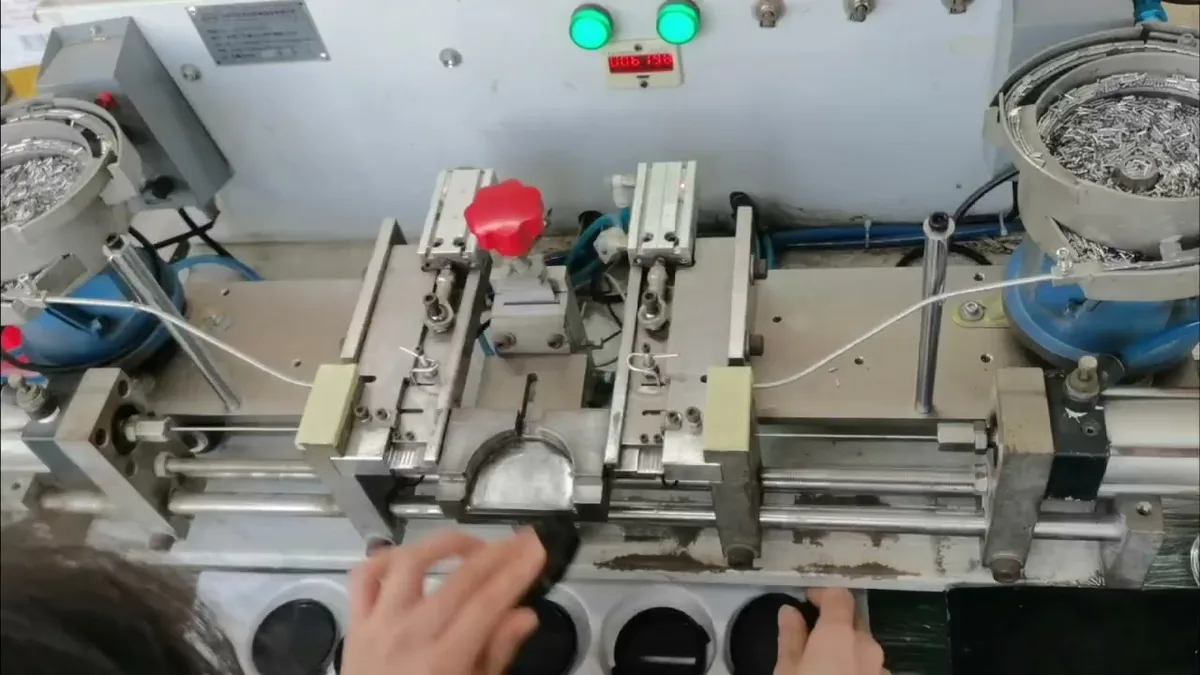

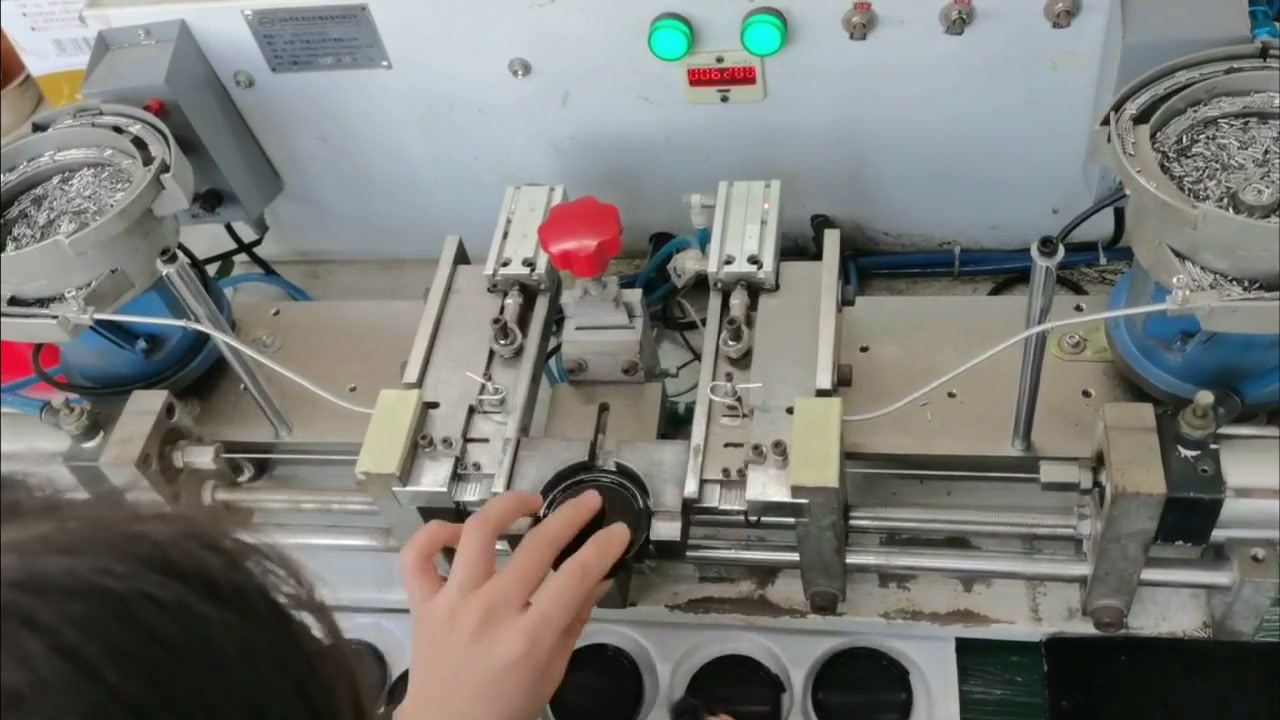

The operator places each case in the fixture in the middle of the machine. Two vibratory bowls feed pins to both sides, and side cylinders drive a pin into each side of the hinge. A typical machine pins about 15–20 cases per minute with one operator.
Send drawings or photos of your case and your pin, and we'll tell you whether we can pin them, and how fast.
Key Points
- Inserts metal hinge pins into compact cases
- Two vibratory bowls feed pins to both sides of the fixture
- The operator places each case; side cylinders drive the pins in
- About 15–20 cases per minute (typical, one operator)
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 15–20 pcs/min (typical, one operator placing the cases) |
| What it does | Drives a hinge pin into each side of the compact case hinge |
| Loading | Cases placed by hand; pins fed from two vibratory bowls |
| Layout | Bench machine with a central fixture, two side cylinders and a foot pedal |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures, from the machine shown. Every machine is set up for your own case and pin.
Suitable Parts
Compact powder and eyeshadow cases with a pinned hinge.
