Cleanroom Medical Device Assembly Line

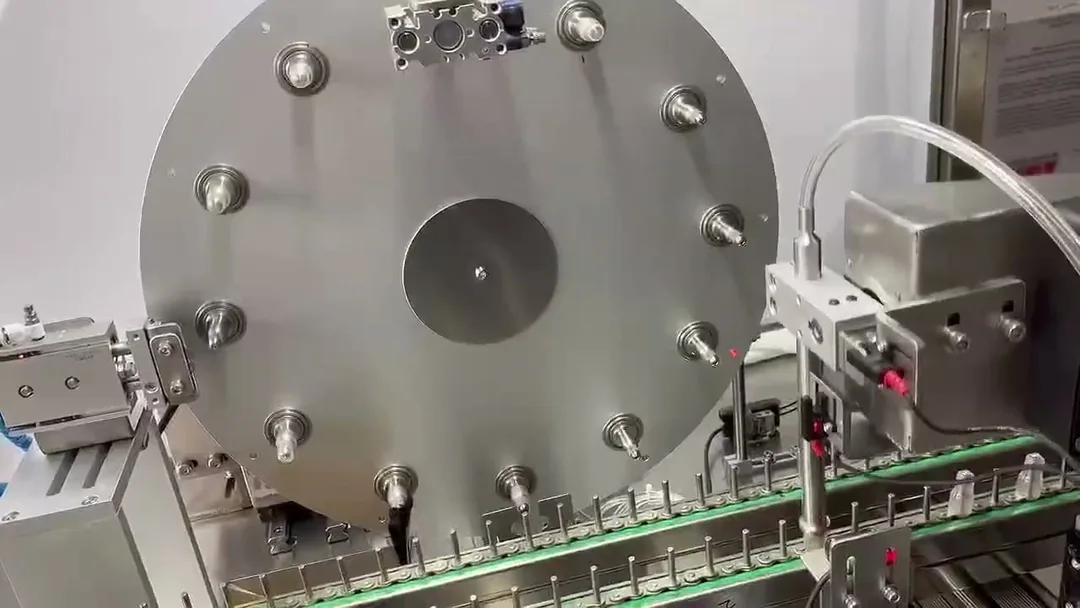

A vertical rotary disc places small clear parts onto pins on the chain conveyor.
This line assembles small plastic medical parts in a cleanroom.
A vertical rotary disc takes each part and places it onto a pin on the chain conveyor, which carries it on to the next station, with sensors at the transfer points. As with every assembly line we supply, the stations are chosen to suit your parts.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Key Points
- Runs in a cleanroom, with stainless steel stations
- Vertical rotary disc transfers parts onto a pin chain conveyor
- Pneumatic pick-and-place, with sensors at the transfer points
- Stations set up for your own parts and output
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Layout | Vertical rotary disc feeding a pin chain conveyor |
| Part handling | Pneumatic pick-and-place, sensors at the transfer points |
| Build | Stainless steel stations for cleanroom use |
| Power supply | Configured for your local power supply |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical layout. Every line is set up for your own parts and output.
Suitable Parts
Small plastic parts for medical devices and disposables.
Frequently Asked Questions
How it is assembled: How Syringes and Needles Are Assembled by Machine
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
