Desiccant Cap Assembly & Filling Machine

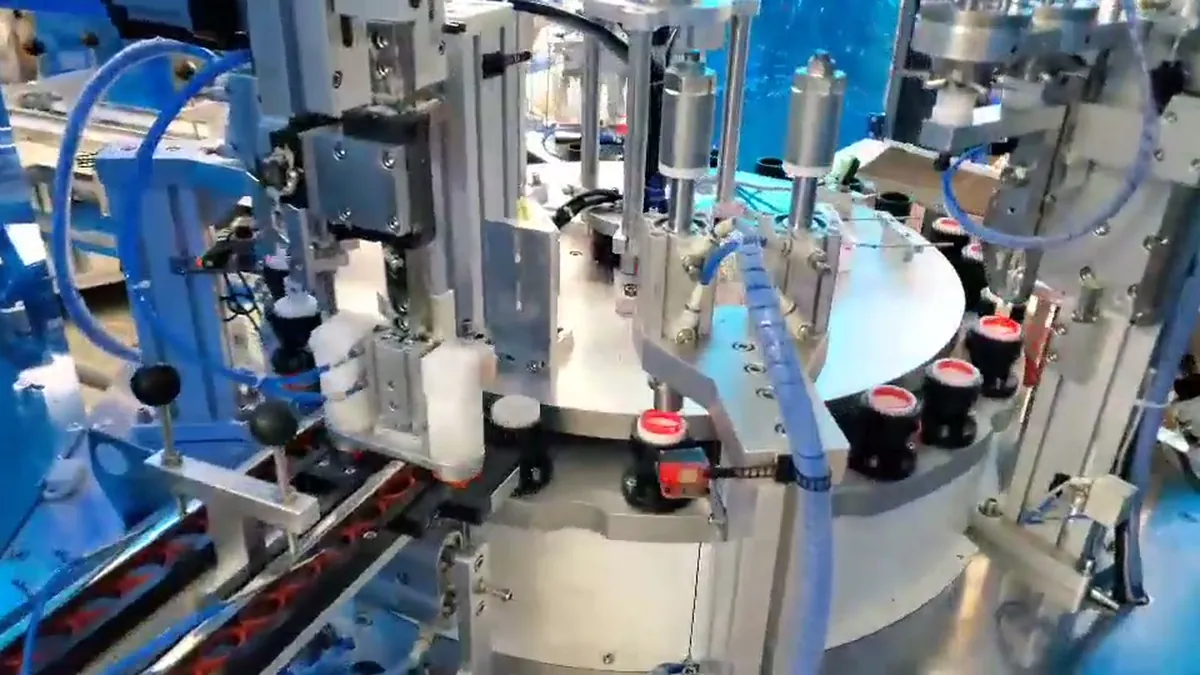

Red O-rings from a vibratory bowl are fitted to desiccant caps on a rotary table.

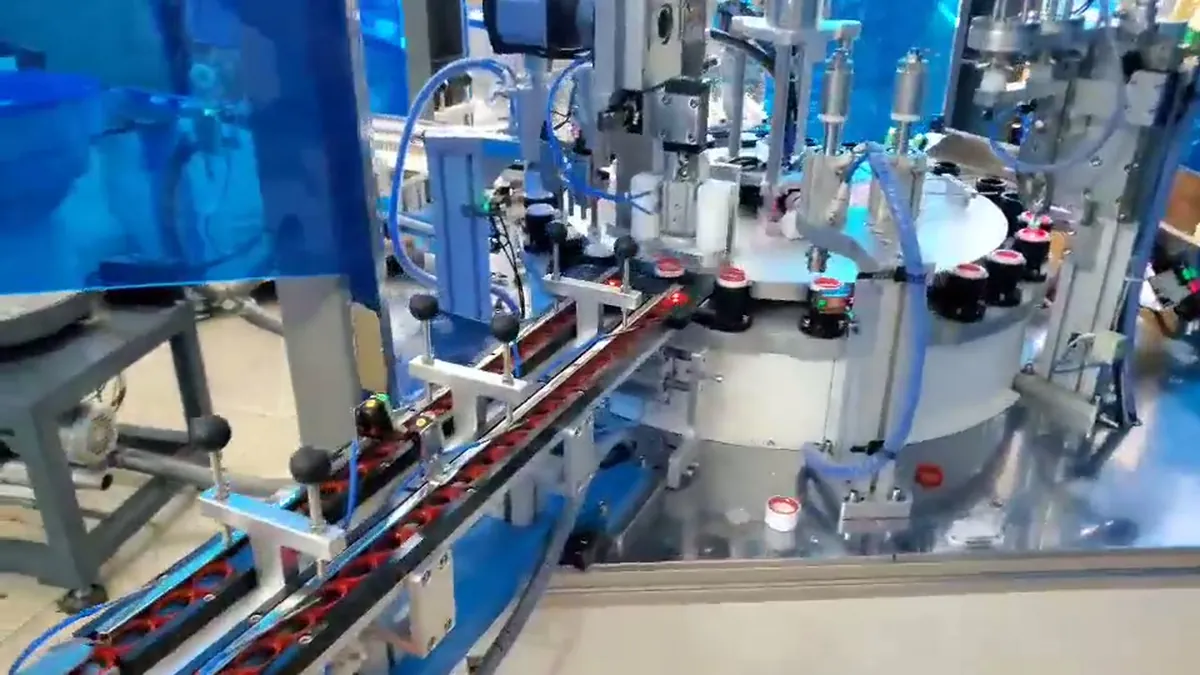

This machine fills desiccant into caps and assembles them, bringing the outer cap, the inner cap and an O-ring together on a rotary table, for caps such as those on effervescent tablet tubes.
Vibratory bowls feed the caps and the red O-rings, and stations around the table fit each part in turn. Two heads fill the desiccant, and the machine runs at about 5,000 caps per hour.
Each machine is set up around the customer's own cap. Send drawings or photos of your cap and tell us the desiccant you use, and we'll tell you whether it fits.
Key Points
- Desiccant filling with two heads
- Outer cap, inner cap and O-ring fitted on one rotary table
- Vibratory bowls feed the caps and the O-rings
- About 5,000 caps per hour
- Set up around your own cap
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 5,000 caps per hour (typical) |
| Filling heads | 2 |
| Parts fitted | Outer cap, inner cap, O-ring |
| Layout | Rotary table |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up for your own cap and output.
Suitable Parts
Desiccant caps made of an outer cap, an inner cap and an O-ring, such as caps for effervescent tablet tubes.
Frequently Asked Questions
How it works: How a Rotary Assembly Machine Works, Step by Step
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine fits, then send you a quote.
