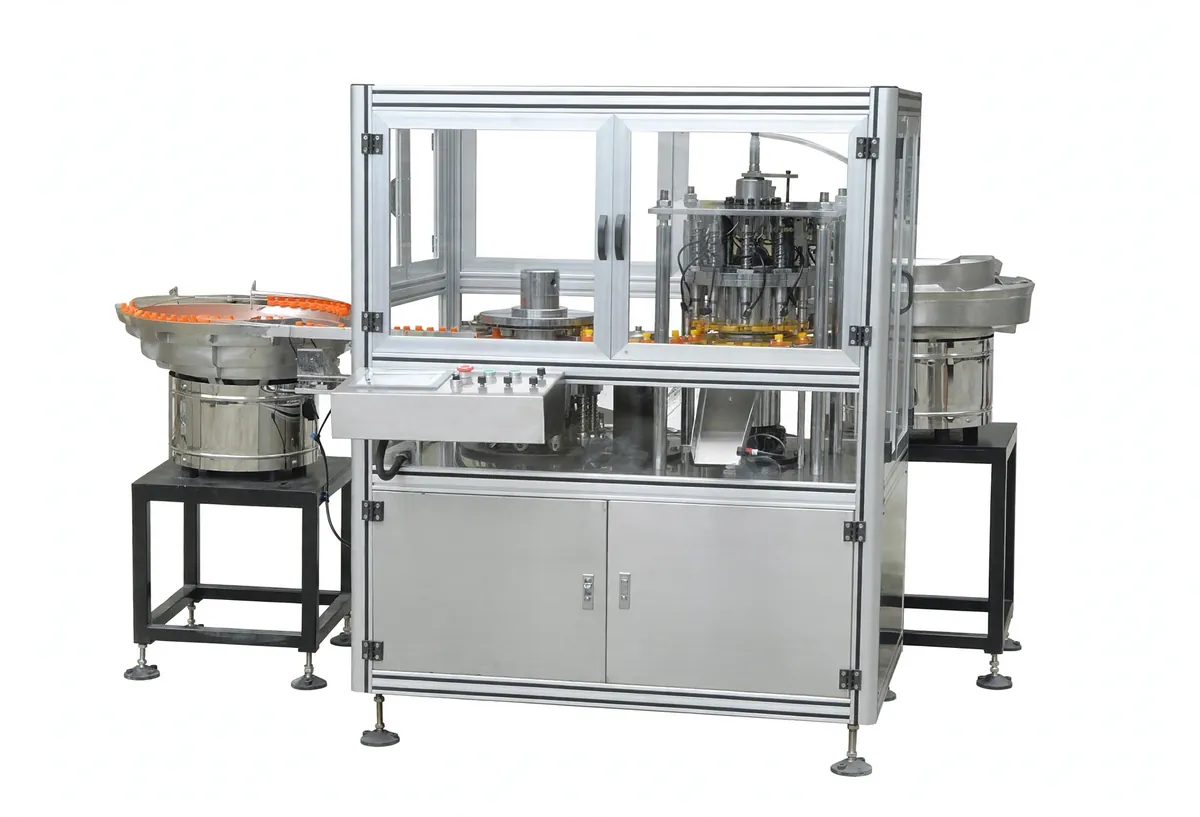

Bottle Cap & Closure Assembly Machine
A disc top cap assembly machine we supplied in the UAE: bowl feeding, a rotary table, and finished caps chuted straight into cartons.
This machine assembles plastic closures from their separate parts into finished caps.
Every machine is set up for the customer's own cap parts. Closures we have supplied machines for include two-piece push-pull caps in Indonesia, rated at 7,200 caps per hour, and two-piece disc top caps in Pakistan and the UAE.
For food caps, a rotary star-wheel machine we supplied to Ghana runs in step with a 10-cavity mould, about 1,200 caps an hour. We have also supplied disc top cap machines to Bangladesh, rated at 2,000 caps per hour.
Send drawings or photos of each part and the assembled cap, and we'll tell you whether it can be assembled, and how fast.
Key Points
- Assembles plastic closures from their separate parts
- Vibratory bowls sort the parts and feed them to a rotary index plate, where they are pressed together
- Finished caps can go down a chute straight into crates or cartons
- Set up for your own cap parts
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | 30–40 pcs/min (standard model) |
| Power supply | 220 V |
| Installed power | About 1 kW |
| Air supply | 0.5–0.7 MPa |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
Suitable Parts
Plastic closures made of more than one part, such as push-pull caps and disc top caps.
Supplied to a Customer
Indonesia · Beverage & Personal Care Packaging · Push-Pull Cap Assembly Machine
An assembly machine for two-piece plastic push-pull caps, supplied to a customer in Indonesia and rated at 7,200 finished caps per hour.
Read the case study →

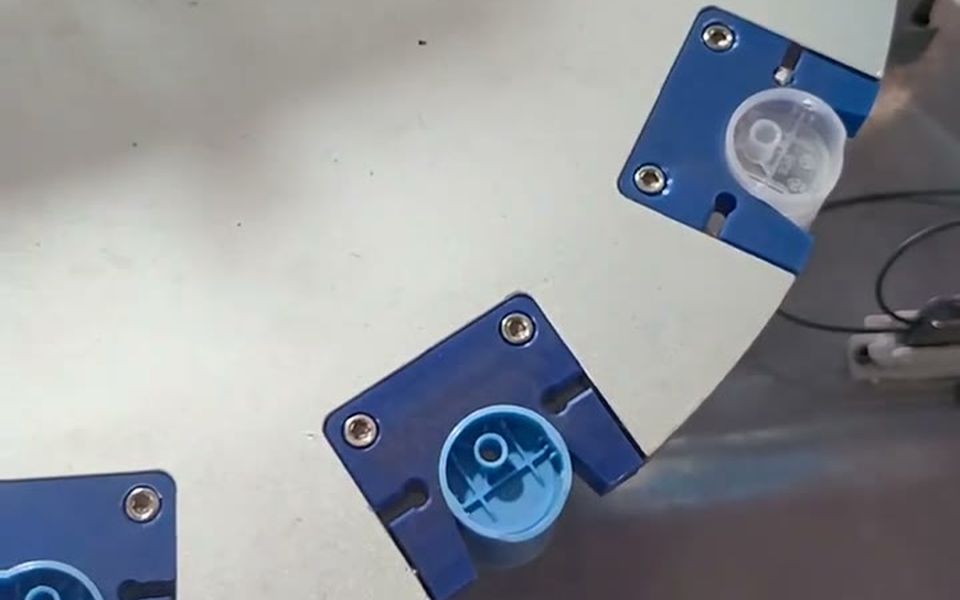

Pakistan · Personal Care Packaging · Disc Top Cap Assembly Machine
A rotary assembly machine for two-piece disc top caps, supplied to a customer in Pakistan and rated at 4,000 finished caps per hour.
Read the case study →

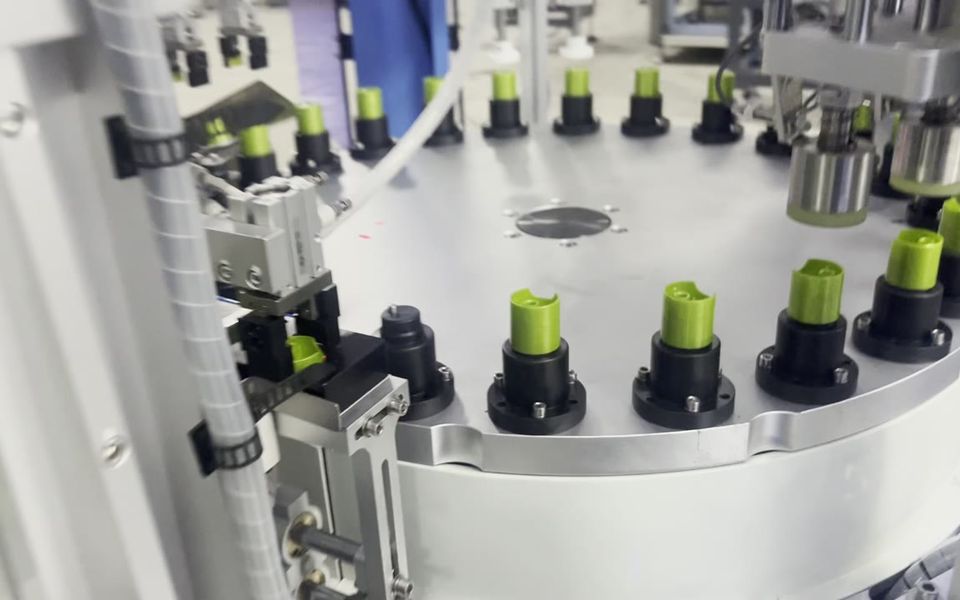

UAE · Personal Care Packaging · Disc Top Cap Assembly Machine
An assembly machine for green two-piece disc top caps, supplied to a customer in the UAE: bowl feeding, a rotary table with one fixture per cap, and finished caps chuted straight into cartons.
Read the case study →

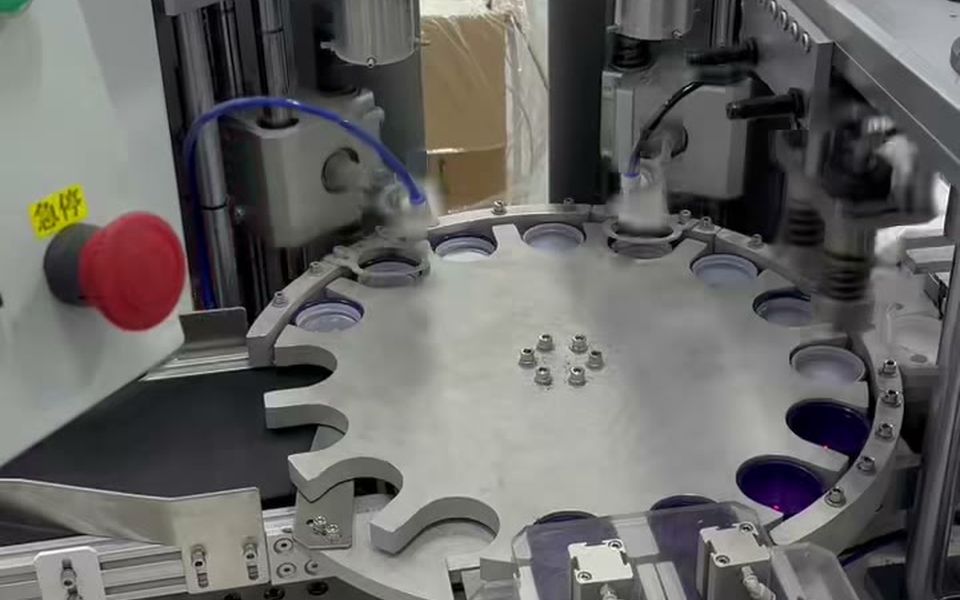

Ghana · Food Packaging · Food Cap Assembly Machine
A rotary star-wheel machine for two-part food caps, supplied to a customer in Ghana. One job, two caps: the videos show both a plain white cap and a ribbed purple screw cap coming off the line.
Read the case study →Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
