Medical Device Assembly Machines
Small medical parts assembled by machine instead of by hand.
Medical device assembly machines for consumables and their packaging parts: syringes, injection needles, eye drop caps, drug dispensers, medical filters, nasal spray pumps, rapid test cassettes, mask breathing valves, infusion bottle caps, catheter connectors and urine bags, plus surgical scrub brushes, PVC tube end closing and tipping, medical wire winding, saliva collectors, antigen test pens and insulin pen assembly. Every assembly machine is set up for the customer's own parts.
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
What do you want to assemble?
Syringes and Needles
Syringe Assembly Machine
Assembles disposable syringes on rotary turrets, about 10,000 an hour.
Injection Needle Assembly Machine
Fits hub, steel cannula and cap together, with glue and UV curing.
Caps and Valves
Assembly Lines
Cleanroom Medical Device Assembly Line
In a cleanroom, a rotary disc places small clear parts onto a pin conveyor.
Diagnostics
Rapid Test Cassette Assembly Machine
Assembles rapid test cassettes (top and bottom housing plus the test strip), with strips cut to ±0.05 mm.
- 2,600/hour (single lane)
Saliva Collector Assembly Machine
Assembles pen-style saliva sample collectors, 55–60 per minute.
Insulin Pens
Insulin Pen Barrel Assembly Machine
Assembles insulin pen barrels on a chain conveyor.

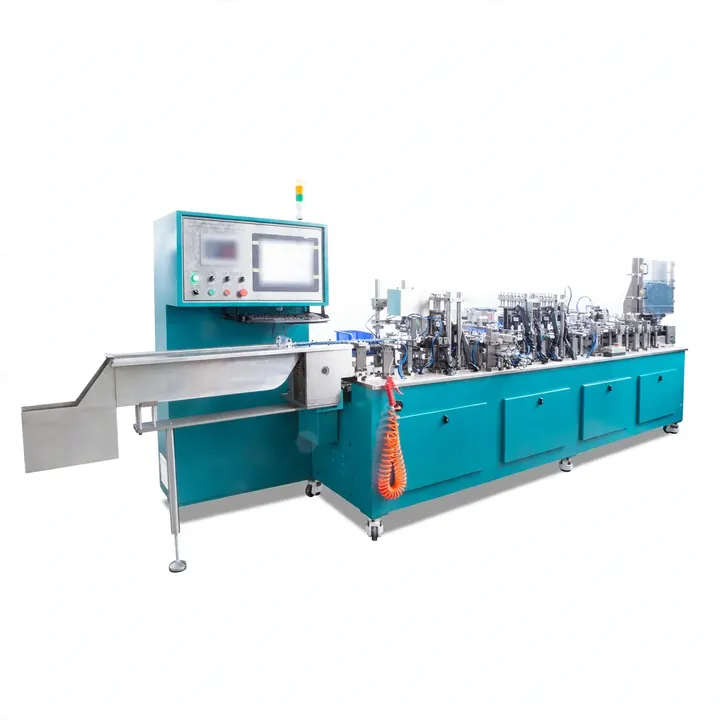

Insulin Pen Assembly & Testing Machine
Assembles and tests insulin pens on one machine.
Insulin Pen Inspection & Tray Loading Line
Checks finished insulin pens with cameras and loads them into trays.
Tubes, Cannulas and Brushes
Medical PVC Tube End Closing Machine
Heat-fuses the tip of medical PVC tubing, six per cycle.
Catheter & Medical Tube Tipping Machine
Heat-forms medical tube tips, six per cycle.
Medical Wire Winding Machine
Winds fine wire along a mandrel adjustable up to 1300 mm.
Catheter Connectors and Urine Bags
Urine Bag Assembly Machine
Makes medical urine bags from roll film, sealing in the tubes and fitting the valves.
Send your part drawing or photos and we'll tell you which one fits.
Making insulin pens, catheter connectors or medical tubes? See Insulin Pen & Pen Injector Assembly Machines → · See Catheter & Medical Tube Assembly Machines →
Typical specifications
| Machine | Typical output |
|---|---|
| Syringe Assembly Machine | About 10,000 pcs/hour (typical, depends on syringe size) |
| Injection Needle Assembly Machine | About 900–1,000 pcs/hour (typical) |
| Rapid Test Cassette Assembly Machine | 2,600 per hour (single lane) |
| Saliva Collector Assembly Machine | 55–60 pcs/min |
| Insulin Pen Barrel Assembly Machine | 50–60 pcs/min (standard model) |
| Insulin Pen Assembly & Testing Machine | 50 pcs/min (standard model) |
| Insulin Pen Inspection & Tray Loading Line | 60 pcs/min (standard model) |
| Catheter Connector Assembly Machine | 60–80 pcs/min (standard model) |
| Catheter & Medical Tube Tipping Machine | 60–80 pcs/min (standard model) |
| Medical PVC Tube End Closing Machine | 35–45 pcs/min (standard model) |
| Urine Bag Assembly Machine | 750–850 bags per hour (standard model, single cavity) |
| Configuration | Set by your part and output |
Figures are taken from each machine's own page. Every machine is set up around your own parts.
Machines We Have Supplied
This machine was set up for that customer's medicine caps. Send a drawing or photos of your medical part, and we'll tell you whether it can be assembled, and how fast.
How It Works
- 1
Send your part.
Upload a drawing or photos of each part and the assembled part.
- 2
We find the machine that fits.
We look at your parts and tell you which machine can assemble them, and how fast.
- 3
Get your quote.
We send an exact quote within 24–48 hours once we have your part details.
- 4
Installation and training.
We install the machine at your site, commission it and train your team on site.
Frequently Asked Questions
How it is assembled: Insulin Pen Assembly and Testing, Step by Step
How it is assembled: How Syringes and Needles Are Assembled by Machine
Get an Exact Quote within 24–48 Hours
Send us a drawing or photos of each part of your medical device. We check which machine can assemble it, then send you a quote.
