Valve Cartridge Assembly Machine

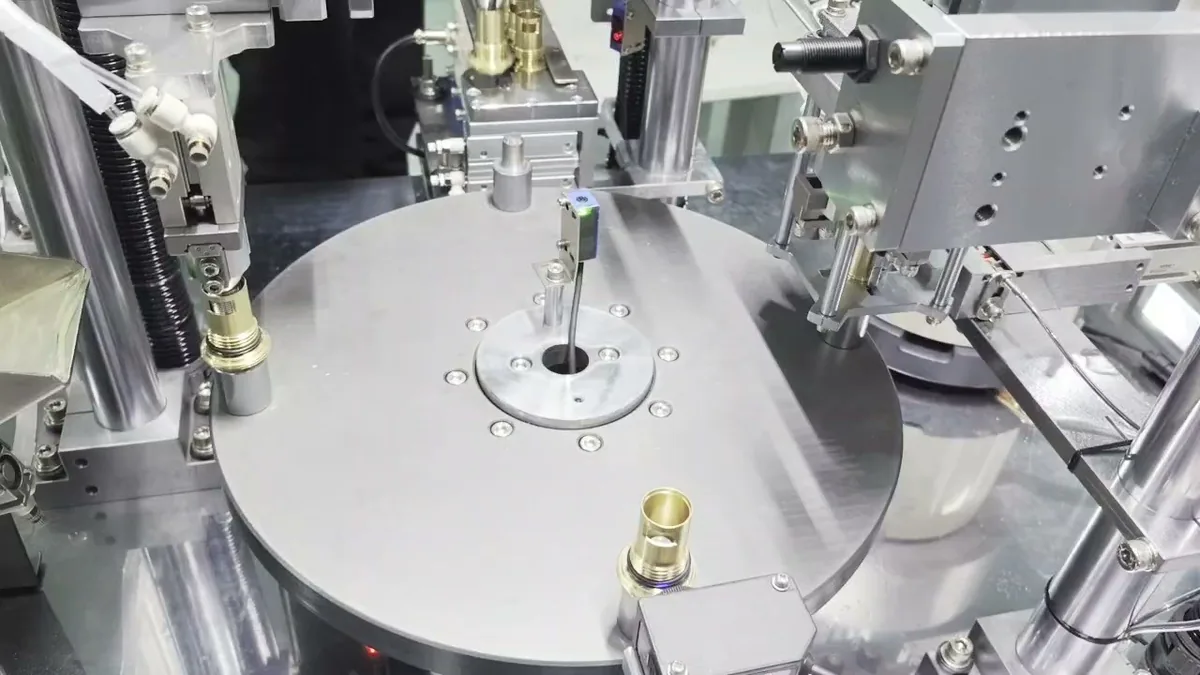

Brass valve bodies move round the indexing table as the press heads fit the parts.
This machine assembles brass spring valve cartridges for plumbing and underfloor heating valves.
Brass valve bodies stand in the nests of an indexing table and move station by station. Grippers and press heads above the table fit the spring stem, the O-ring and the washer. A typical machine finishes one cartridge about every 6 seconds.
Send drawings or photos of your cartridge parts, and we'll tell you whether we can assemble them, and how fast.
Key Points
- Assembles brass spring valve cartridges
- Valve bodies carried station by station on an indexing table
- Grippers and press heads fit the stem, O-ring and washer
- About one cartridge every 6 seconds (typical)
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 6 seconds per cartridge (typical, cartridge shown) |
| Cartridge parts | Brass body, spring-loaded stem, O-ring and washer (on the cartridge shown) |
| Layout | Indexing rotary table with grippers and press stations |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures, from the machine shown. Every machine is set up for your own cartridge parts.
Suitable Parts

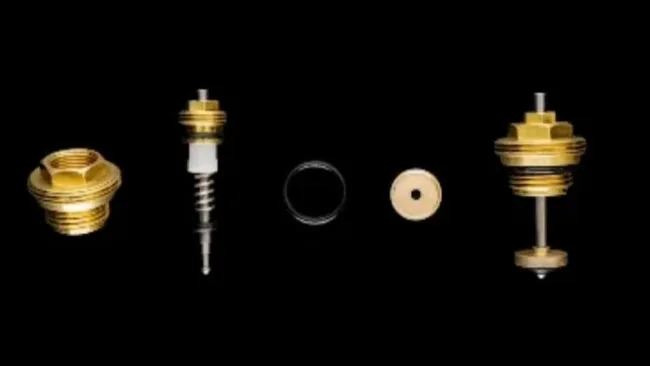

Brass spring valve cartridges: a brass body, a spring-loaded stem, an O-ring and a washer.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
