Medical Device Assembly Machines

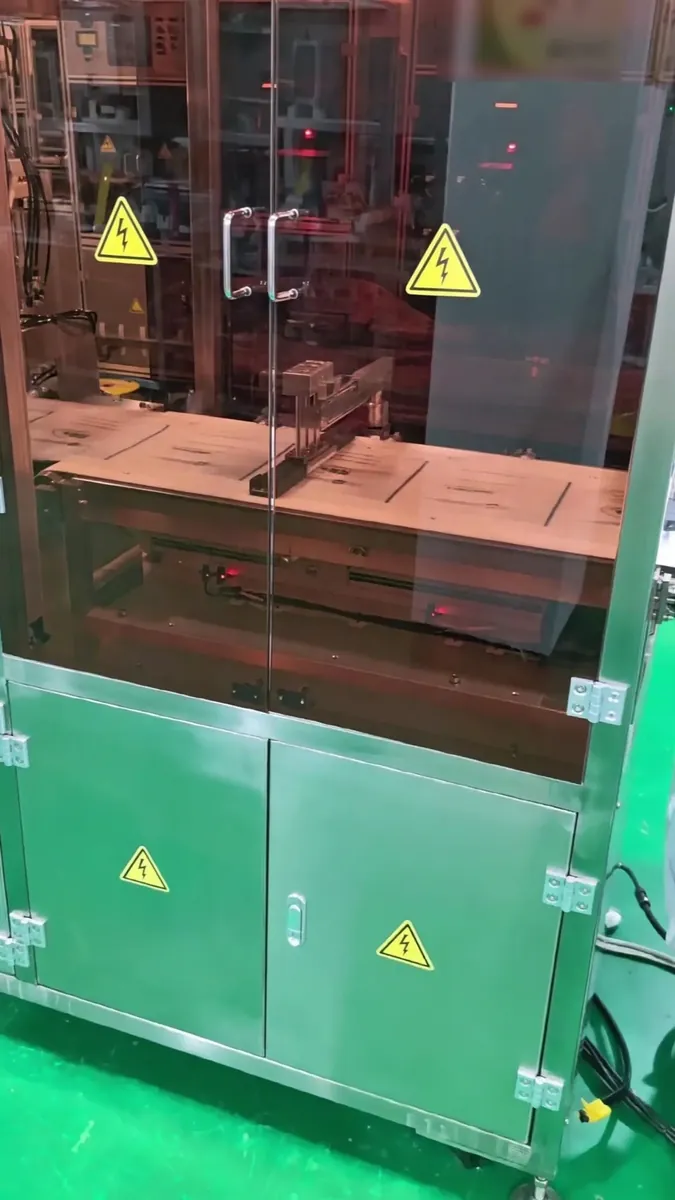

Urine Bag Assembly Machine

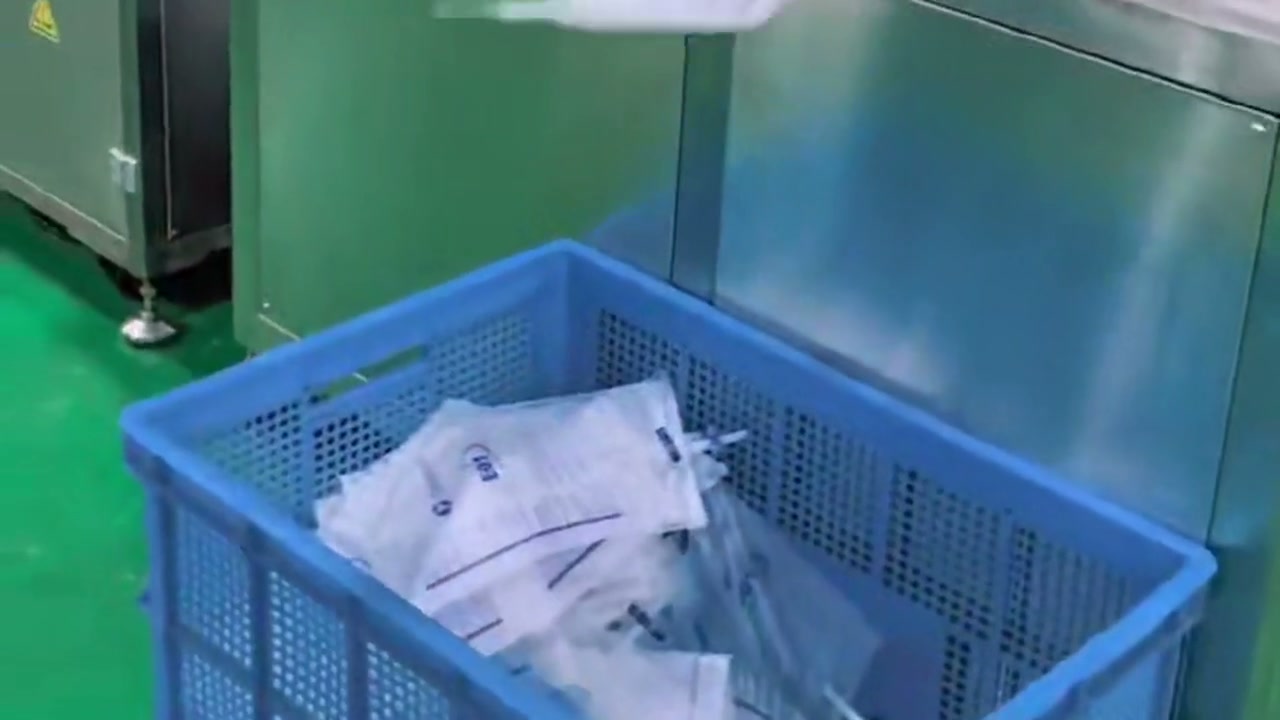

Urine bag assembly machine at work (standard single-cavity line, 750–850 bags per hour). A vibratory bowl feeds the parts and finished bags drop into a blue crate.

This line makes medical urine bags from roll film: it heat-seals the inlet tube, the check valve, the drain tube and the bag body, fits the cross valve or the pull valve, and cuts the bags apart.

The standard model is a single-cavity line that runs 750–850 bags per hour, with vibratory feeders for the tubes and valves.

Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.

Overview

Key Points

  • 750–850 bags per hour, single cavity (standard model)
  • Set up for your own bag parts
  • Exact quote within 24–48 hours once we have your part details
  • Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures

Typical specifications

ItemValue
Output750–850 bags per hour (standard model, single cavity)
Power supply380 V, 50 Hz
Air supply0.5–0.8 MPa
Line installed power30 kW
Line weight3 tonnes
Line size (L × W × H)7800 × 3500 × 1900 mm
Warranty2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse)

Figures are for the standard model. The line is set up for your own bag, tubes and valves.

What It Runs

Suitable Parts

Medical urine bags.

Answers

Frequently Asked Questions

Drawings or photos of each part and the assembled bag, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on how many parts the bag has and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
The standard model, a single-cavity line, runs 750–850 bags per hour. Your line is matched to your bag and the output you need.
It makes medical urine bags from roll film: it heat-seals the inlet tube, the check valve, the drain tube and the bag body, fits the cross valve or the pull valve, and cuts the bags apart. Vibratory feeders supply the tubes and valves. Send drawings or photos of each part and the finished bag, and we'll tell you whether it can be assembled, and how fast.
The standard model needs 380 V at 50 Hz, 0.5–0.8 MPa air and 30 kW installed power, and weighs 3 tonnes. The line measures 7800 × 3500 × 1900 mm (L × W × H). Your layout depends on your bag, so send your drawings and we'll confirm.

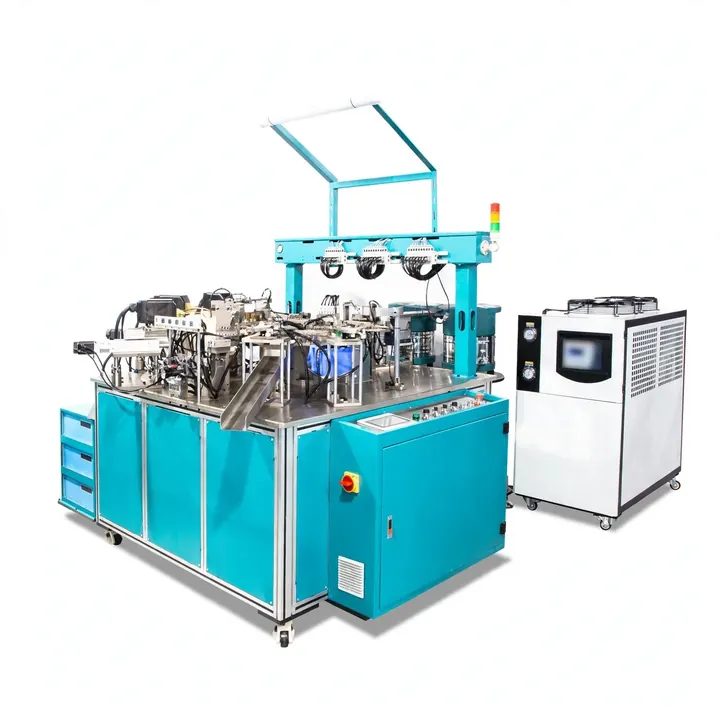

We supply a catheter connector assembly machine at 60–80 connectors per minute, a medical tube tipping machine at 60–80 per minute, six at a time, and a PVC tube end closing machine at 35–45 per minute (standard models). See more on our medical device assembly machines page.
