Cap Liner Inserting Machine

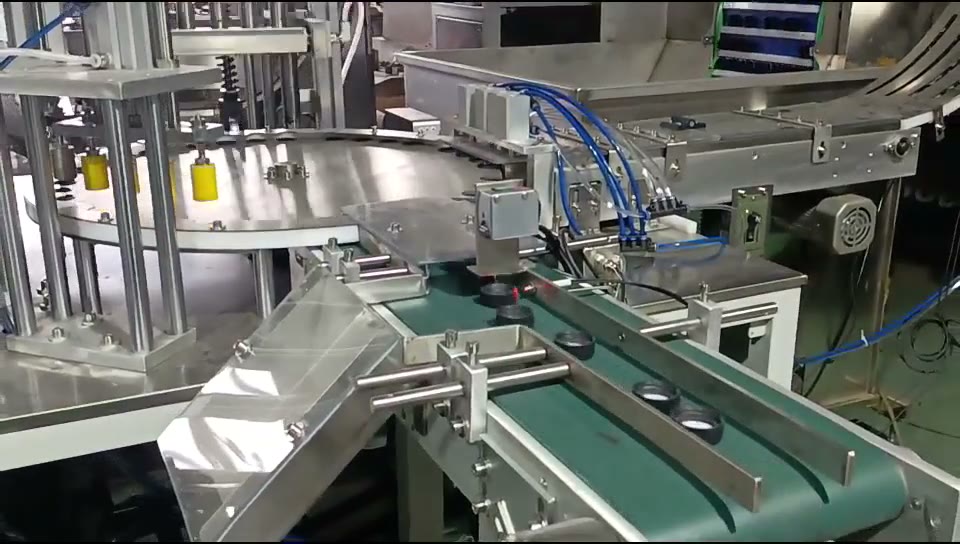

Lined black caps leave the rotary table on a green belt below the press heads.
This machine puts pre-cut liners into caps: a vacuum pick-up takes each liner and places it in the cap.
The standard model runs at 100–160 pieces per minute.
Every machine is set up for the customer's own caps. Send your cap drawing and the liner material, and we'll tell you whether it fits.
We have supplied liner inserting machines to Bangladesh, set up for the customer's own caps and now running at the customer's site.
Key Points
- Inserts pre-cut liners into caps
- Vacuum pick-up takes out each liner for inserting
- 100–160 pieces per minute on the standard model
- Set up for your own caps
Typical specifications
| Item | Value |
|---|---|
| Output | 100–160 pcs/min |
| Power supply | 220 V |
| Installed power | 1.5 kW |
| Machine size (L × W × H) | 3000 × 1000 × 1500 mm |
| Weight | 450 kg |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
Suitable Parts
Caps with liners that are already cut.
Frequently Asked Questions
How to choose: Cap Lining Machines: Which Type Do You Need?
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
