Stapler Channel Assembly Machine
Stapler channel parts move along a belt onto a rotary table, where stations above the table put each channel together.
This machine assembles the lower staple channel of a stapler: the channel in the stapler's base that holds the staples. The channel is put together as its own sub-assembly first, then goes on to the stapler's final assembly with the other parts.

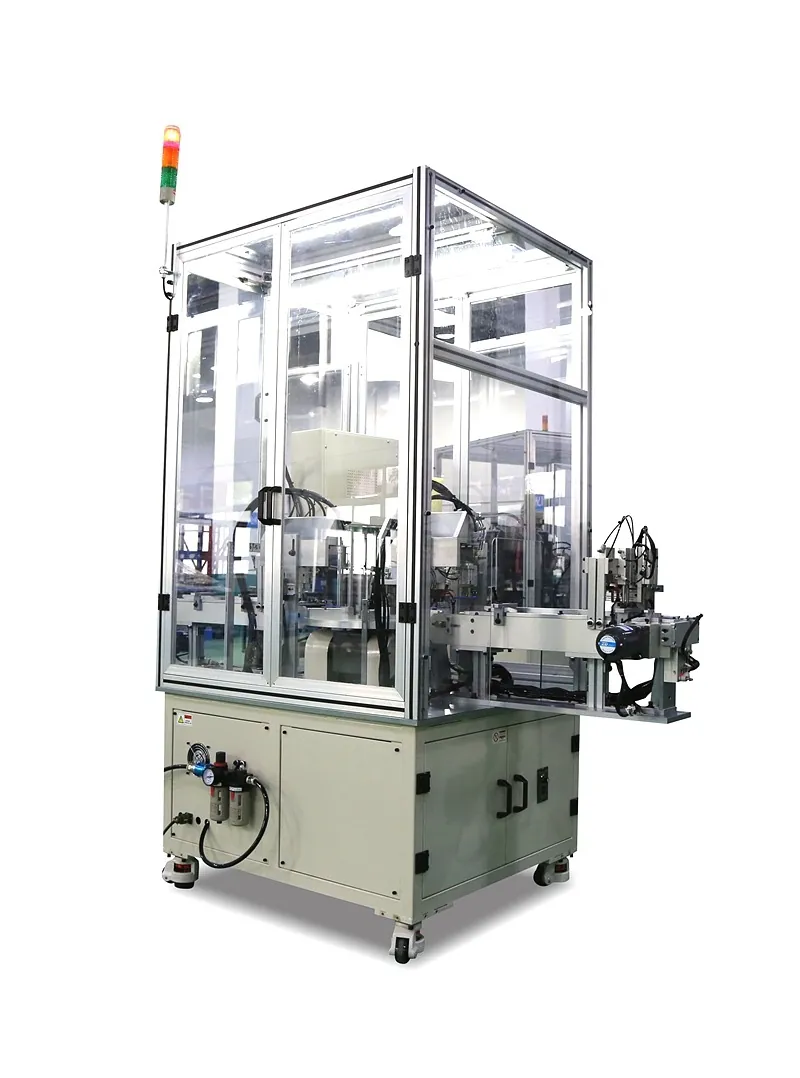

The parts ride a belt onto a rotary table, and stations above the table put each channel together inside a guarded cabinet.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Key Points
- Assembles stapler channels
- Belt feed and rotary table, inside a guarded cabinet
- Set up for your own stapler parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | One every 4 seconds, about 15 pcs/min (standard model) |
| Layout | Rotary table |
| Machine size (L × W × H) | 2000 × 900 × 2000 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
The configuration is set by your stapler parts and output.
Suitable Parts
Stapler channels.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
