Matrix Tray Loading Machine AM-ZT400

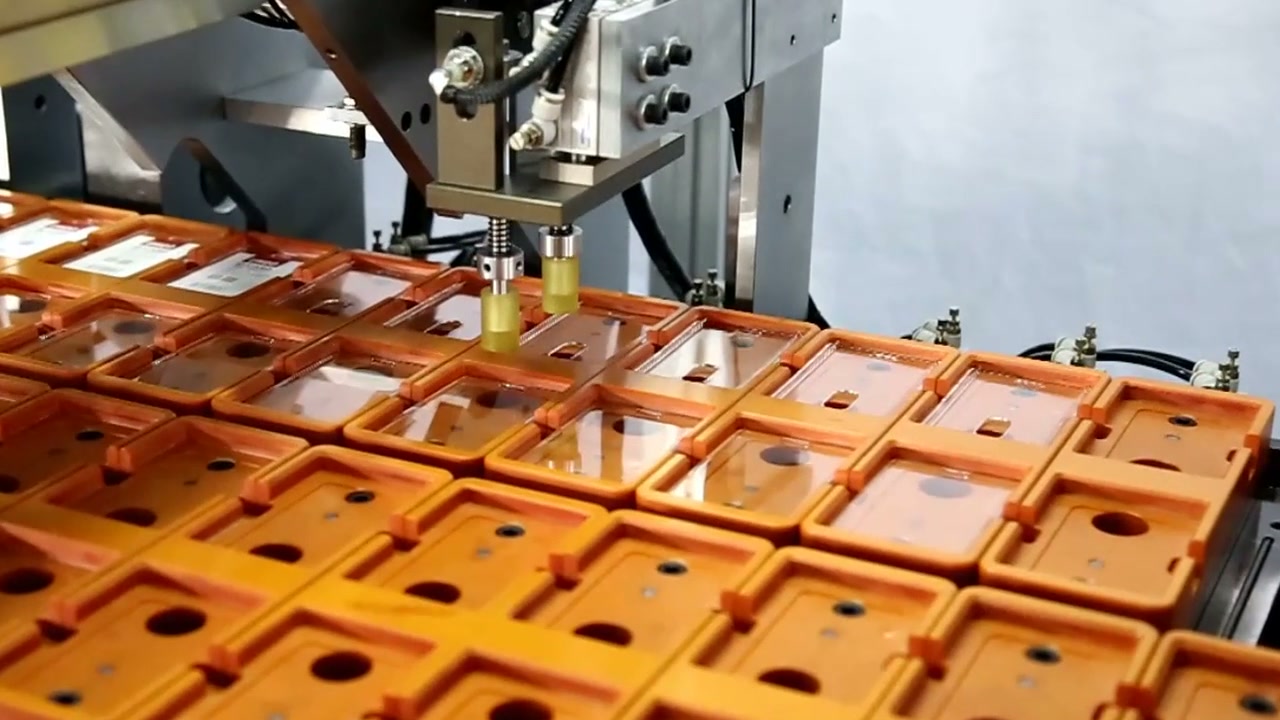

Pick-and-place heads fill a matrix of orange trays, row by row.
This machine loads products into trays in rows and columns.

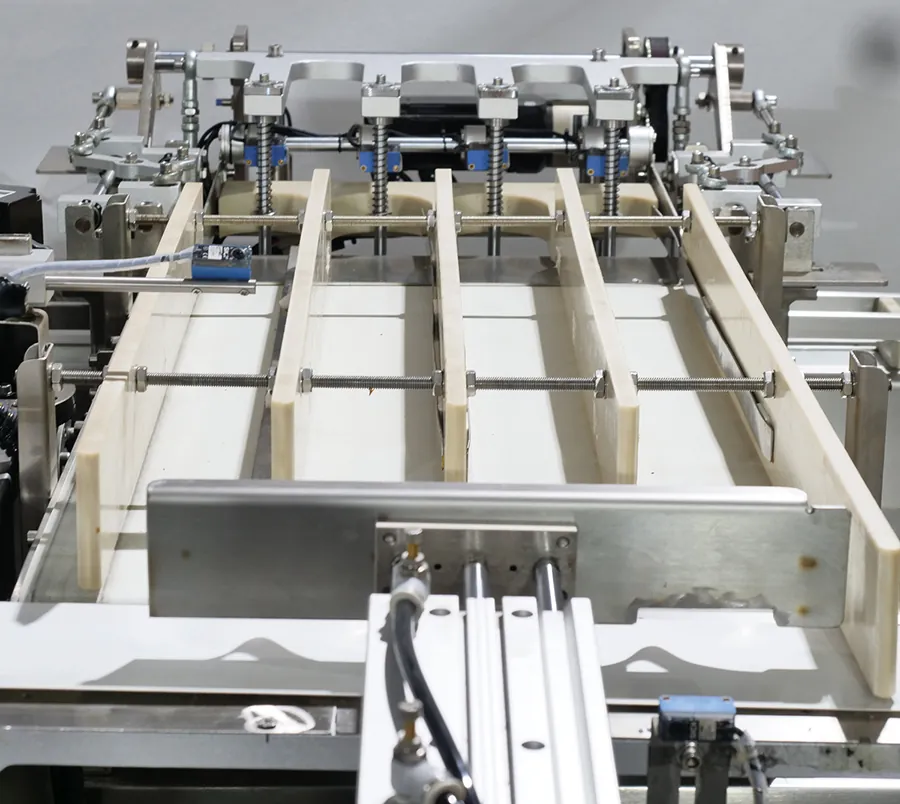

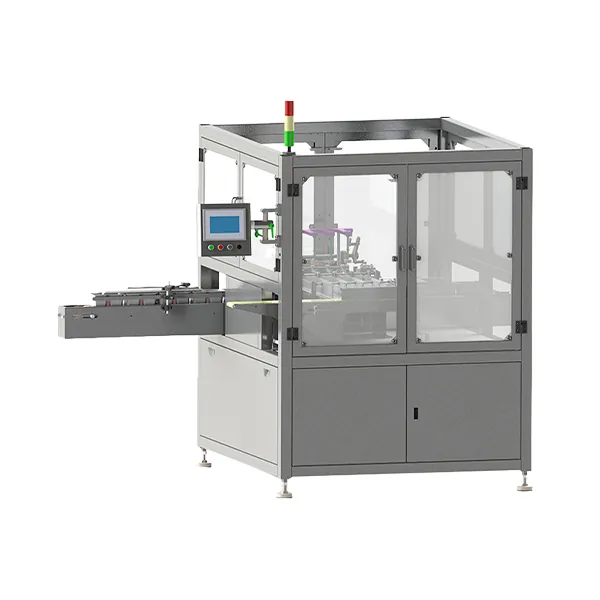

It is a fully enclosed machine, with a pusher that lines the products up before loading.
Send photos of your product, the case or tray it goes into and your target output, and we'll tell you whether it fits.
Overview
Key Points
- Set up around your product, case or tray and output
- Exact quote within 24–48 hours once we have your product details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Typical output | 60–120 pcs/min (depends on part and configuration) |

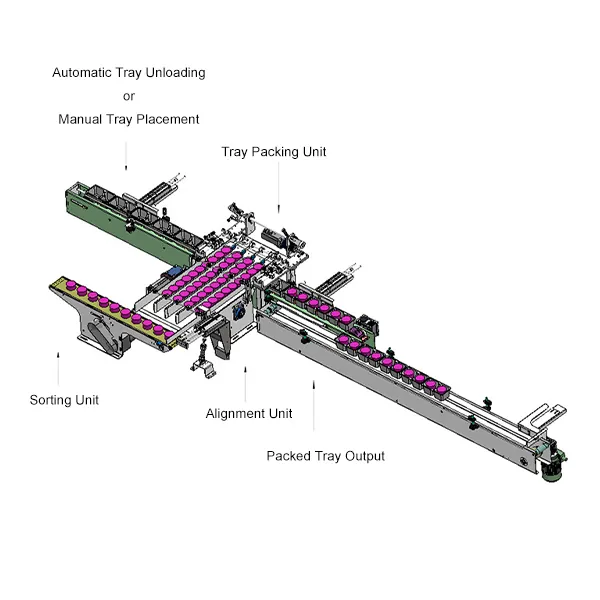

| Layout | Fully enclosed; a pusher lines the products up, pick-and-place heads fill the trays row by row |
| Configuration | Set by your part and output |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up around your own product, tray and output.
What It Runs
Suitable Parts
Products loaded into trays in rows and columns.
Answers
Frequently Asked Questions
Photos and the size of your product, the case or tray it goes into, and your target output.
It depends on your product, the case or tray layout and the output you need. Send us those details, and we'll send an exact quote within 24–48 hours.
The AM-ZT400 loads products into trays in rows and columns. It is a fully enclosed machine, with a pusher that lines the products up before loading, and pick-and-place heads fill a matrix of trays row by row. Send photos of your product and tray, and your target output, and we'll tell you whether it fits.
The AM-ZT400 is a fully enclosed machine that loads products into trays in rows and columns; the AM-ZT500 is an in-line machine with an upright tray magazine that packs products into trays in a matrix layout. Tell us your product and tray and we'll tell you which fits.
Typical output: 60–120 pcs/min (depends on part and configuration). The figure depends on your product, the tray layout and the number of rows and columns. Send photos of your product and tray, and your target output, and we'll confirm the speed.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
