Robotic Packaging Machines

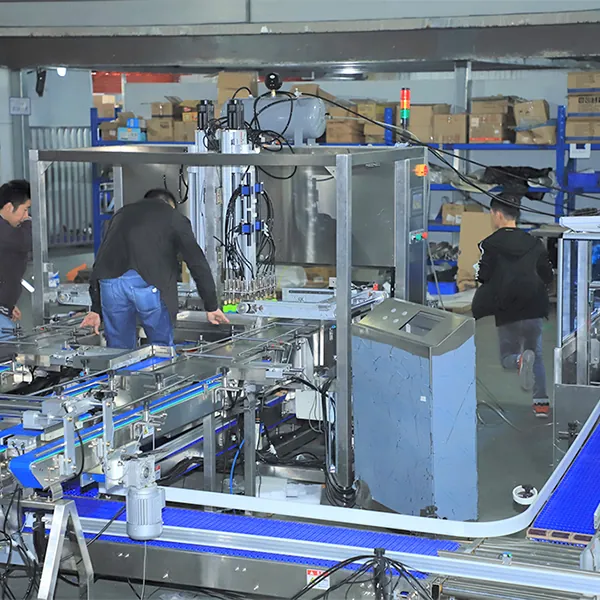

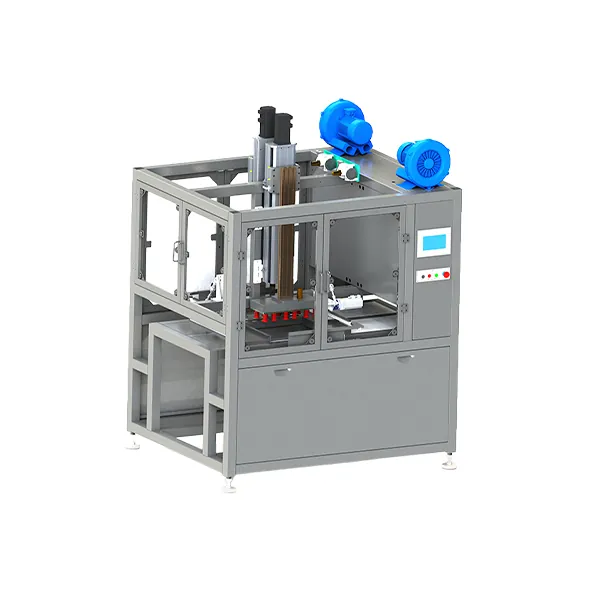

Cartesian Robot Case Packer AM-ZX150
A Cartesian (gantry) robot that places products into cases.
The gantry spans the conveyor line and reaches down into deep cases.
Send photos of your product, the case or tray it goes into and your target output, and we'll tell you whether it fits.
Overview
Key Points
- Reaches down into deep cases and carries heavier loads than a delta robot
- Set up around your product, case or tray and output
- Exact quote within 24–48 hours once we have your product details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Packing speed | 4–8 cycles/min |
| Power supply | 380 V, three-phase |
| Installed power | 2.5 kW |
| Air supply | 0.6–0.8 MPa |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
What It Runs
Suitable Parts
Products packed into cases, including deep cases.
Answers
Frequently Asked Questions

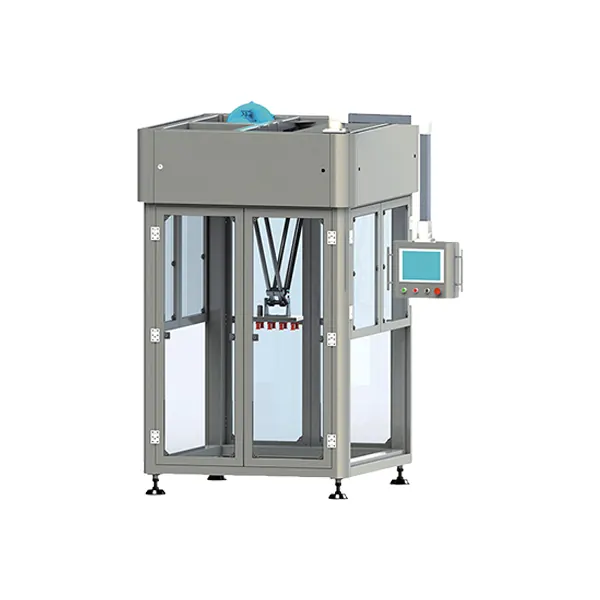

A delta robot is fast and suits small, light products picked from a conveyor, but its vertical reach is short, so it is a poor fit for deep cases. A Cartesian (gantry) robot is slower but carries heavier loads and reaches down into deep cases. Tell us your product and output, and we'll tell you which one fits.
Photos and the size of your product, the case or tray it goes into, and your target output.
Typical packing speed is 4–8 cycles per minute on 380 V three-phase, 2.5 kW installed power and 0.6–0.8 MPa air. Yours is matched to your product, case and the output you need. Send photos of your product, the case or tray and your target output.
The gantry spans the conveyor line and reaches down into deep cases. It also carries heavier loads than a delta robot. Send photos of your product, the case or tray and your target output, and we'll tell you whether it fits.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
How to choose: Delta, Cartesian or Articulated Robot for Packing?
Get a Quote
Request a Quote for This Machine
Send us photos of your product and your target output. We check which machine fits, then send you a quote.
