Junction Box Assembly Machine

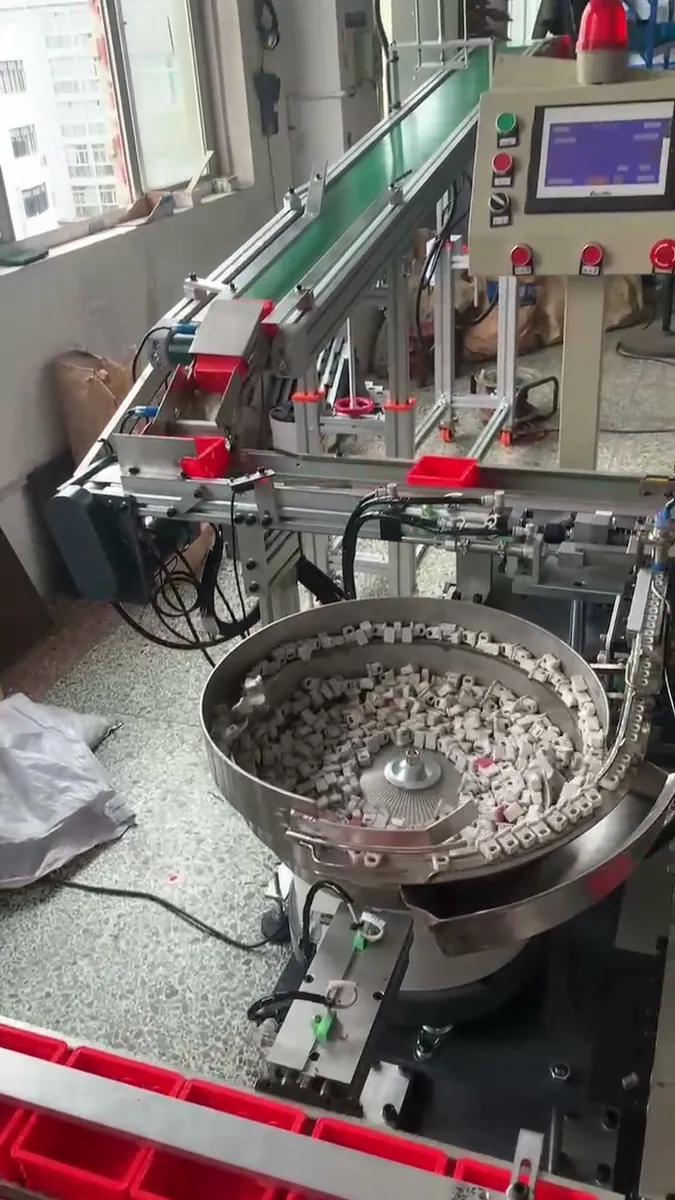

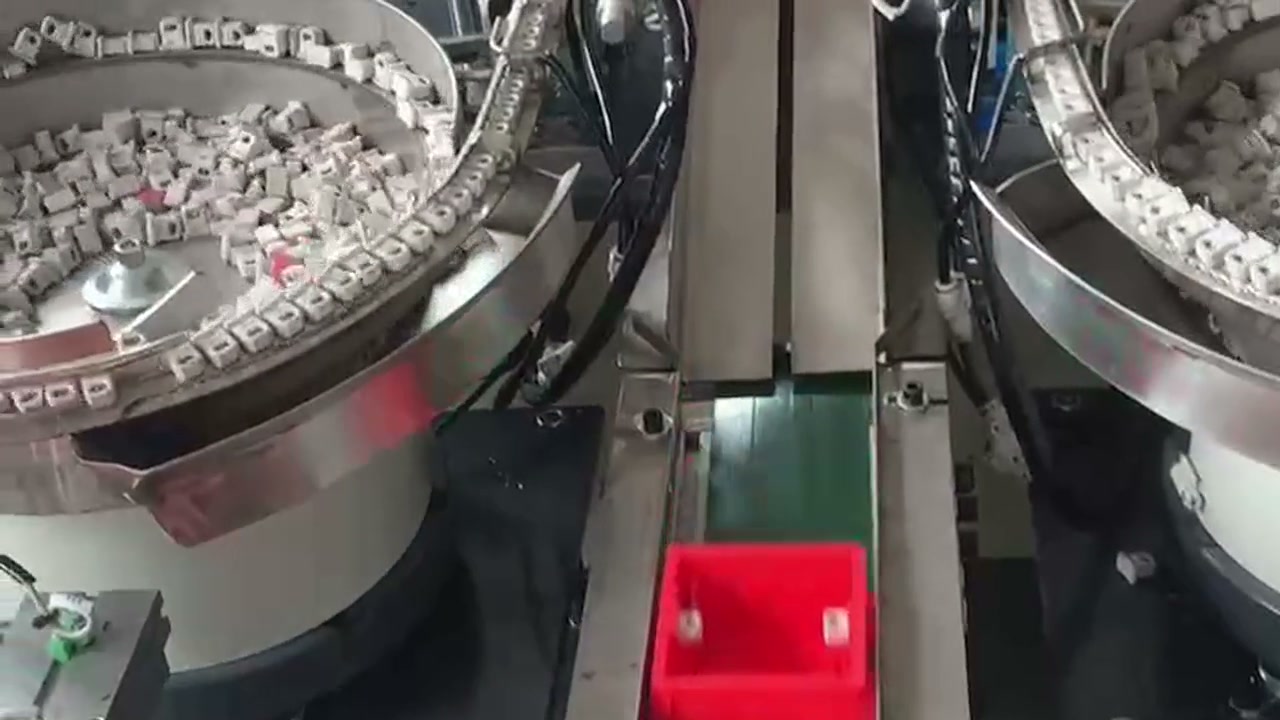

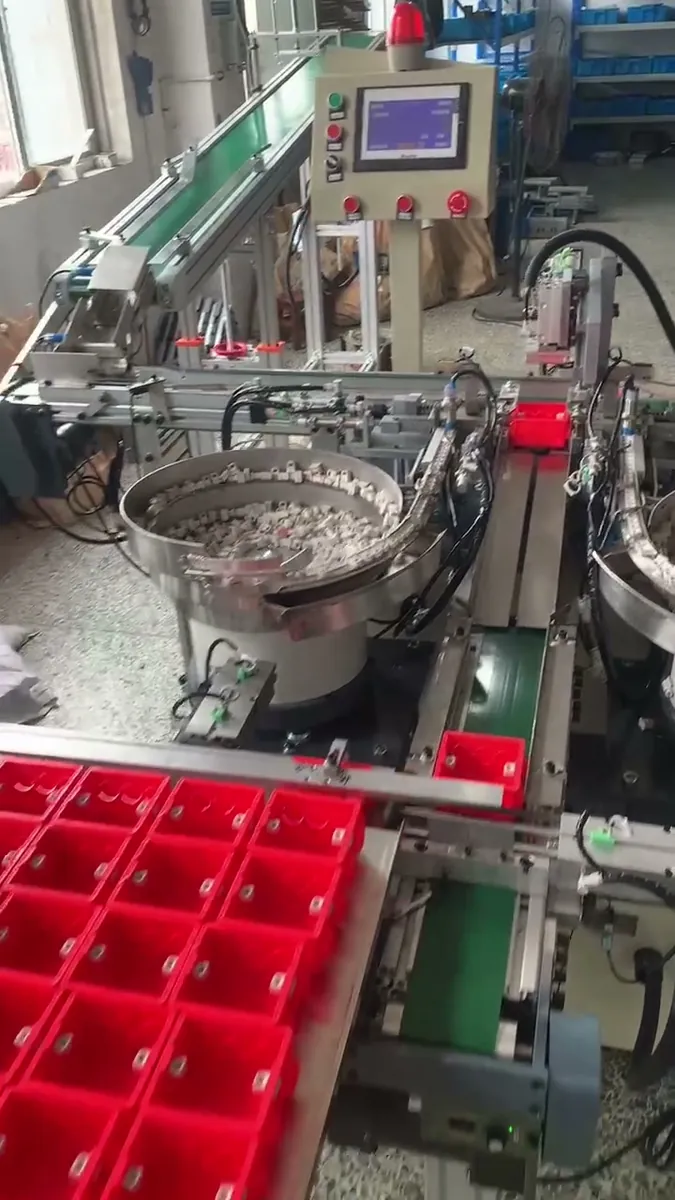

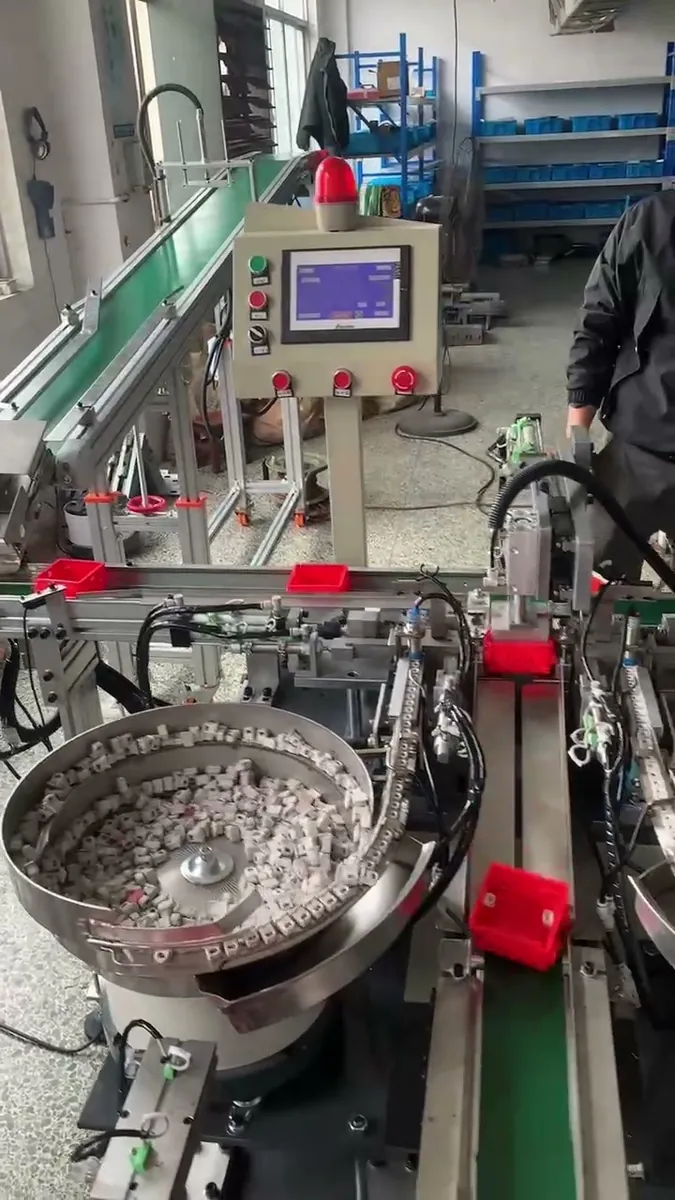

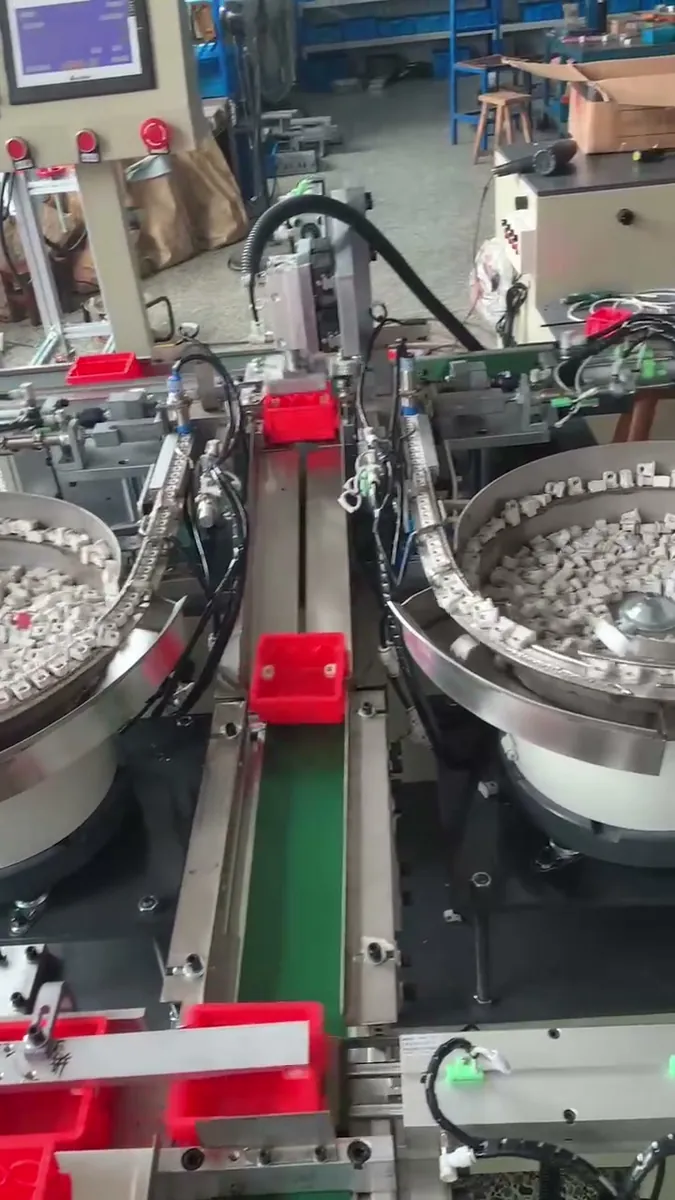

Two vibratory bowls feed small parts while red junction boxes ride a green belt.

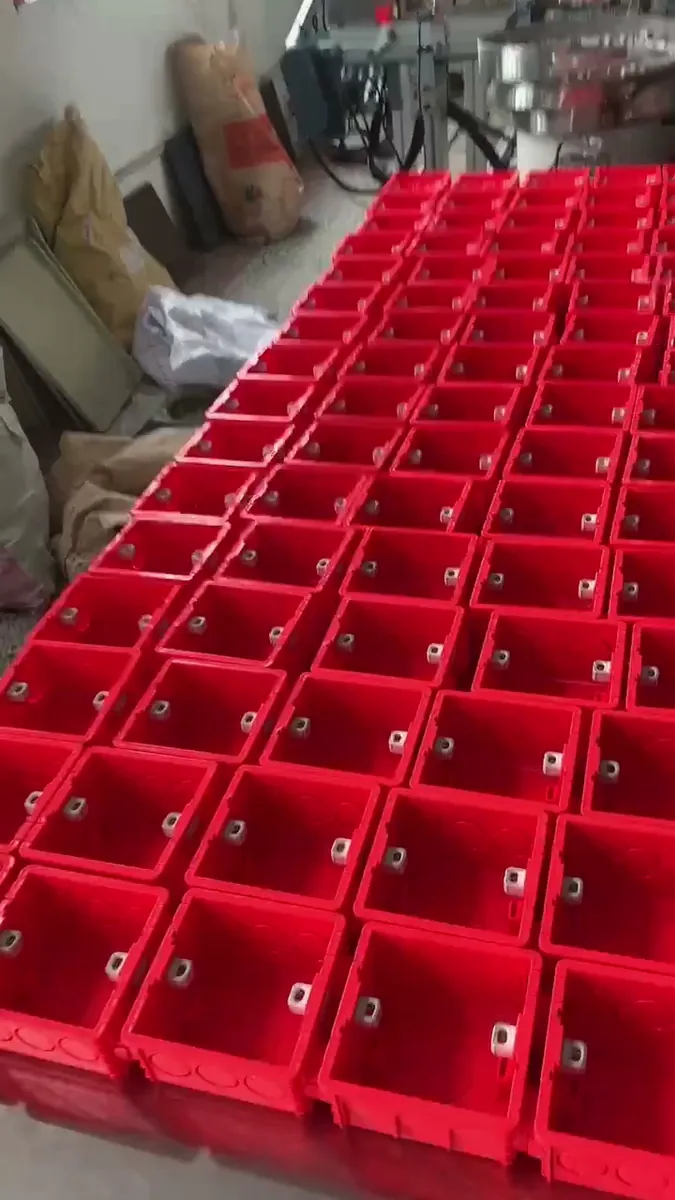

This machine assembles five-part electrical junction boxes.
We supplied a line for five-part junction boxes to a customer in Bangladesh: a belt brings the boxes to the stations, and two vibratory bowls feed the small parts. A typical machine runs about 15–25 boxes per minute.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Overview
Key Points
- Belt infeed for the boxes, two vibratory bowls for the small parts
- About 15–25 boxes per minute (typical)
- Set up for your own box parts
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Output | About 15–25 pcs/min (typical) |
| Power supply | 220 V |
| Installed power | About 1 kW |
| Air supply | 0.5–0.7 MPa |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up for your own box parts and output.
What It Runs
Suitable Parts
Electrical junction boxes.
Answers
Frequently Asked Questions
Drawings or photos of each part and the assembled box, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on how many parts the box has and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
About 15–25 junction boxes per minute is typical. Typical utilities are 220 V, about 1 kW and 0.5–0.7 MPa of air. Yours is set up for your own box parts and output, so send your box drawings, target output and plant voltage.
A belt brings the boxes to the stations, and two vibratory bowls feed the small parts. We supplied a line for five-part junction boxes to a customer in Bangladesh. Send drawings or photos of your box parts and we'll tell you whether they can be assembled.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
