Wall Switch Assembly Machine

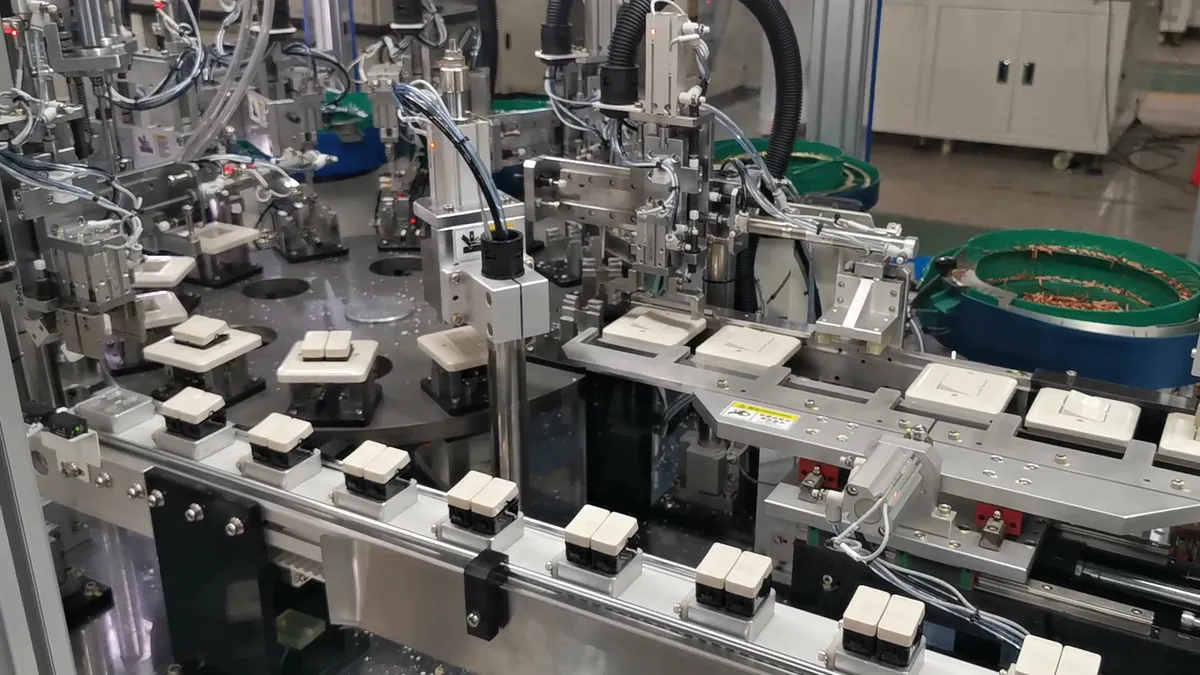

Grippers assemble switch modules on a rotary table, then fit each one into its frame.
This machine assembles wall switches, putting their seven parts together.

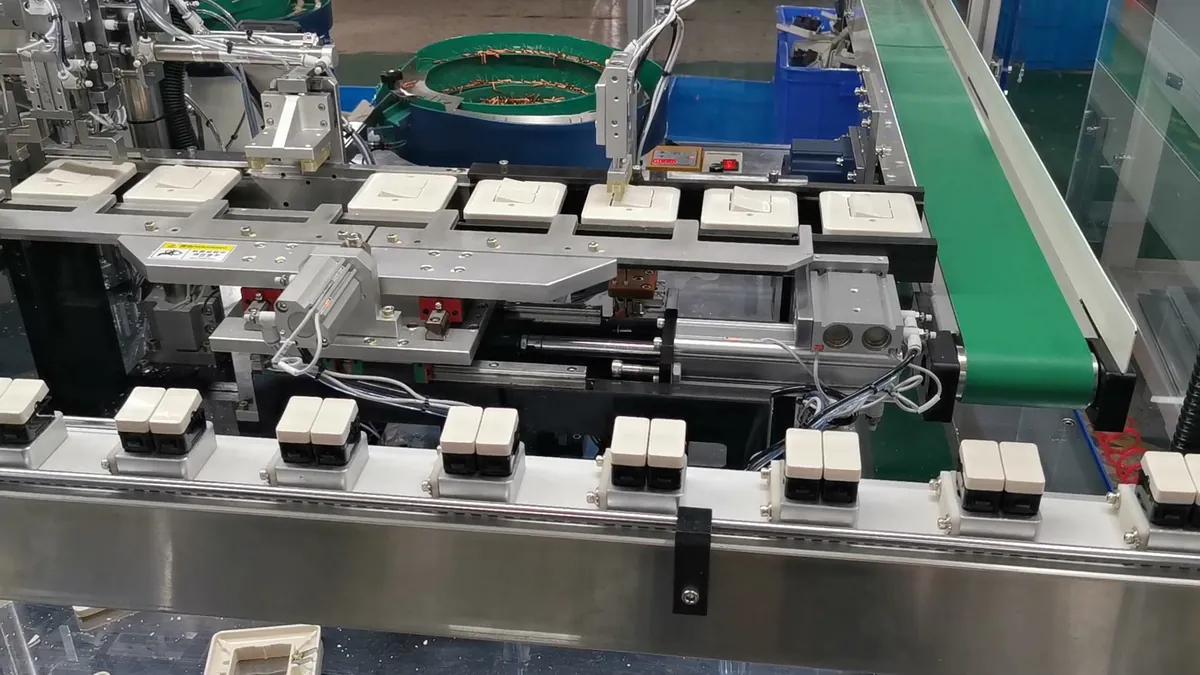

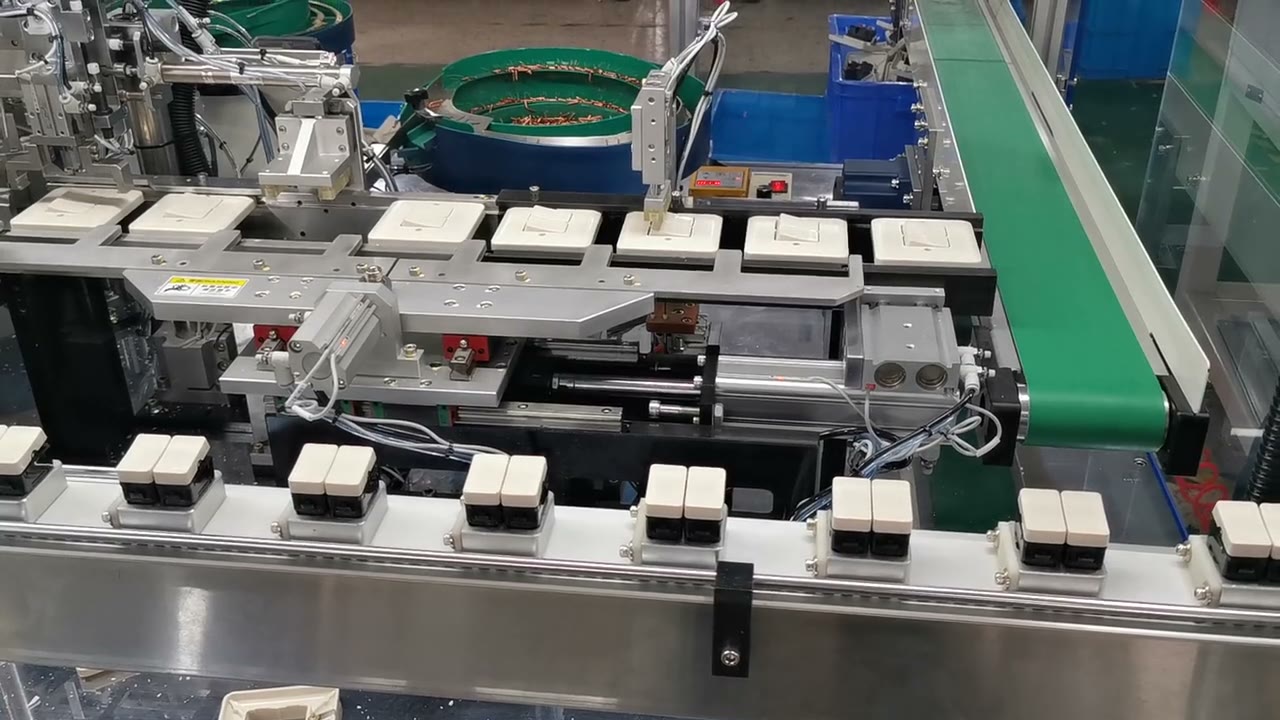

Grippers set the switch parts into fixtures on a rotary table, a pressing station fits each switch into its frame, and a vibratory bowl feeds the small parts. A typical machine runs about 1,200 switches per hour.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Overview
Key Points
- Rotary table with grippers and a pressing station
- About 1,200 switches per hour (typical)
- Set up for your own switch parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Output | About 1,200 pcs/hour (typical) |
| Power supply | 220 V |
| Installed power | About 1 kW |
| Air supply | 0.5–0.7 MPa |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up for your own switch parts and output.
What It Runs
Suitable Parts
Wall switches.
Answers
Frequently Asked Questions
Drawings or photos of each part and the assembled switch, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on how many parts the switch has and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
About 1,200 wall switches per hour is typical. Typical figures are 220 V, about 1 kW and 0.5–0.7 MPa air. Yours is set up for your own switch parts and output, so send your switch drawings, target output and plant voltage.
Grippers set the switch parts into fixtures on a rotary table, a pressing station fits each switch into its frame, and a vibratory bowl feeds the small parts. Send drawings or photos of your switch parts and we'll tell you whether they can be assembled.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
