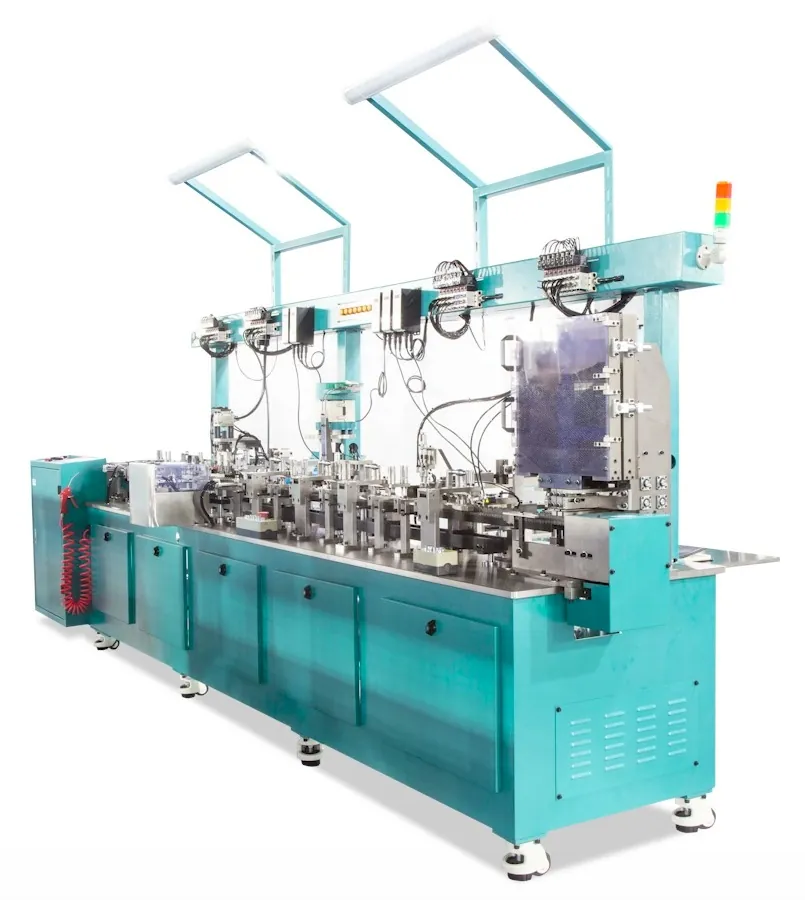

Pen Refill Assembly Machine
Pressing stations work along a chain conveyor as the refill parts move through the machine, with a blue bin at the side.
This machine assembles pen refills.
We have supplied refill assembly machines to pen makers in Pakistan and Bangladesh, for gel and ballpoint refills, including metal-tube, needle-tip, bullet-tip and high-capacity refills, and marker refills.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Used for: Pen refill making machines
Overview
Key Points
- 180–220 gel refills per minute on the standard model
- Gel, ballpoint and marker refills
- Versions for metal-tube, needle-tip, bullet-tip and high-capacity refills
- Set up for your own refill parts
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Gel refills | 180–220 per minute, 4 at a time; 3400 × 1400 × 2500 mm |
| High-capacity gel refills | 120–160 per minute, 4 at a time; 4750 × 1320 × 1780 mm (with bowls) |
| Ballpoint (oil-based ink) refills | 100–120 per minute, 4 at a time; 3400 × 1450 × 1950 mm (with bowls) |
| Marker refills | 40–60 per minute, 2 at a time; 4500 × 1800 × 1500 mm (with bowls) |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
What It Runs
Suitable Parts
Gel, ballpoint and marker refills.
Answers
Frequently Asked Questions
Drawings or photos of each part and the assembled refill, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your refill and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
Typical speeds of the pen refill assembly machine are 180–220 gel refills per minute, four at a time; 120–160 per minute for high-capacity gel refills; 100–120 for ballpoint (oil-based ink) refills; and 40–60, two at a time, for marker refills. Send your refill drawings and target output and we'll confirm the speed.
It assembles gel, ballpoint and marker refills, including metal-tube, needle-tip, bullet-tip and high-capacity refills. We have supplied these machines to pen makers in Pakistan and Bangladesh. Send drawings or photos of your refill parts and we'll tell you whether they can be assembled.
The standard gel refill machine measures 3400 × 1400 × 2500 mm, and the high-capacity gel version measures 4750 × 1320 × 1780 mm with bowls. Send your refill drawings and target output, and we'll confirm the machine for your refill.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
