Marker Pen Assembly Machine

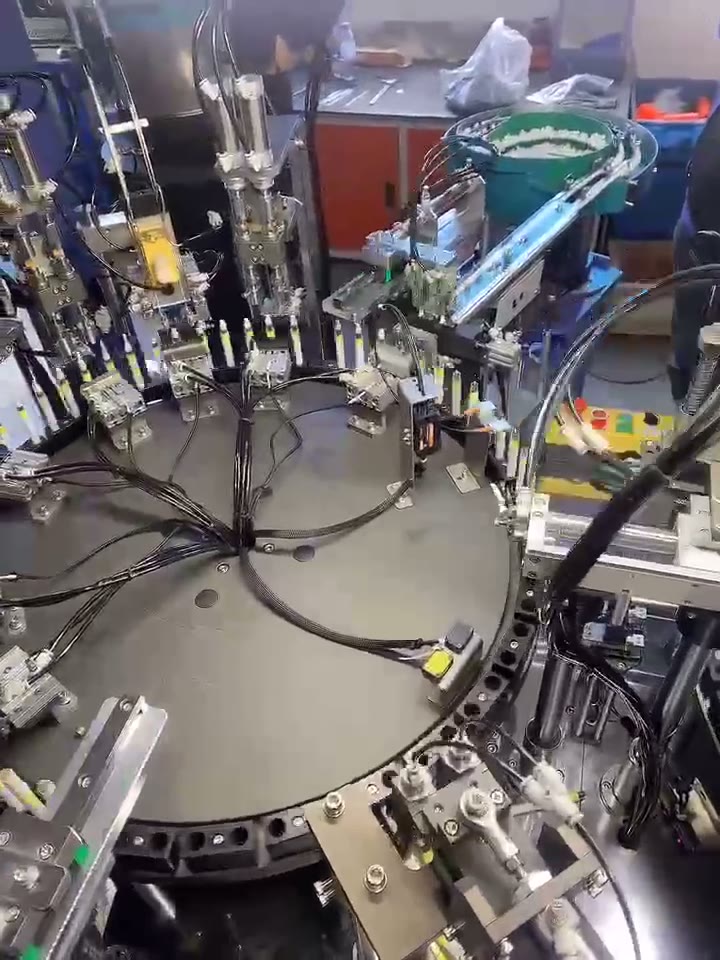

Seen from above, a large rotary table carries the pen parts past a ring of assembly stations, with a vibratory bowl at the back.

This machine assembles markers, highlighters, fineliners and double-ended water-based pens.

We have supplied these machines to pen makers in Bangladesh (markers and double-ended water-based pens), Pakistan (for assembling retractable highlighter parts) and Russia (fineliner pens).

Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.

Used for: Highlighter & marker making machines

Overview

Key Points

  • Speed depends on the pen; see the specifications table
  • Markers, double-ended water-based pens, highlighters and fineliners
  • Set up for your own pen parts
  • Exact quote within 24–48 hours once we have your part details
Key Figures

Typical specifications

ItemValue
Double-ended whiteboard markers40–60 per minute, 2 at a time; 5200 × 900 × 1650 mm
Whiteboard markers40–50 per minute, 2 at a time; 5300 × 1700 × 2300 mm
Double-ended markers (triangular barrel)40–60 per minute, 2 at a time; 5580 × 1540 × 1900 mm
Markers, ultrasonic welding30–50 per minute, 2 at a time; 6500 × 2900 × 2500 mm
Marking pens35–50 per minute, 2 at a time; 6450 × 1800 × 1800 mm
Fineliners40–60 per minute, 2 at a time; 4780 × 1500 × 1710 mm
Warranty2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse)

Sizes are length × width × height.

What It Runs

Suitable Parts

Markers, double-ended water-based pens, highlighters and fineliners.

Answers

Frequently Asked Questions

Drawings or photos of each part and the assembled pen, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your pen and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
Marker pen assembly machine speeds depend on the pen, in pens per minute: double-ended whiteboard markers 40–60 (2,400–3,600 an hour), marking pens 35–50 (2,100–3,000 an hour), fineliners 40–60 (2,400–3,600 an hour) and ultrasonic-welded markers 30–50 (1,800–3,000 an hour). Most assemble two pens at a time. Send photos of your pen parts and we'll tell you which machine fits.
It assembles markers, double-ended water-based pens, highlighters and fineliners, including whiteboard markers and triangular-barrel markers. We have supplied these machines to pen makers in Bangladesh (markers and double-ended water-based pens), Pakistan (retractable highlighter parts) and Russia (fineliner pens). Send photos of your pen parts and we'll tell you which machine fits.
It is the assembly step: it puts together the parts of the pen. Moulding the plastic parts is a separate step. If you also need moulds for the parts, tell us when you send your drawing.

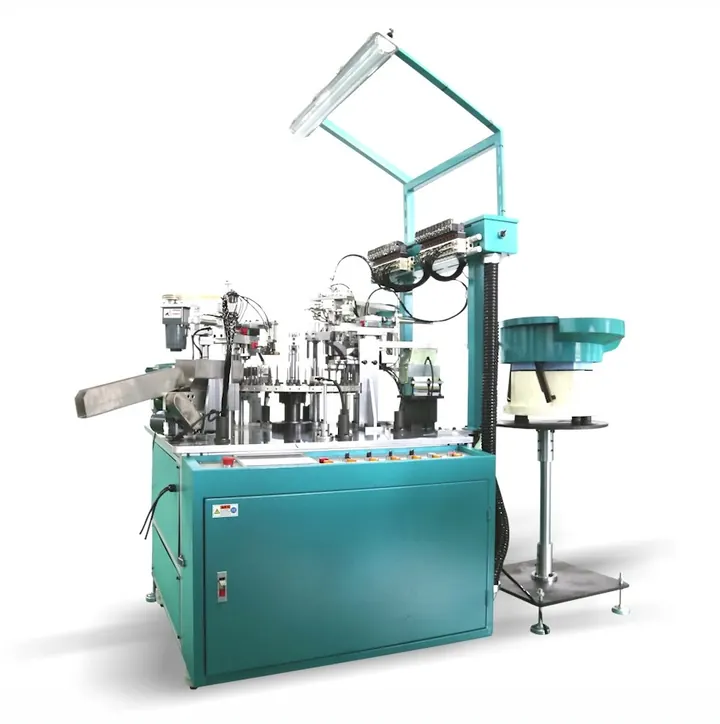

We also supply a Pen Tip Sleeve & End Plug Assembly Machine, a Seal Ring Assembly Machine, which fits seal rings onto marker pen parts, and a Pen Writing Test Machine. See all of them on our Highlighter & Marker Making Machines page. Send photos of your pen parts, and we'll tell you which machines fit.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
