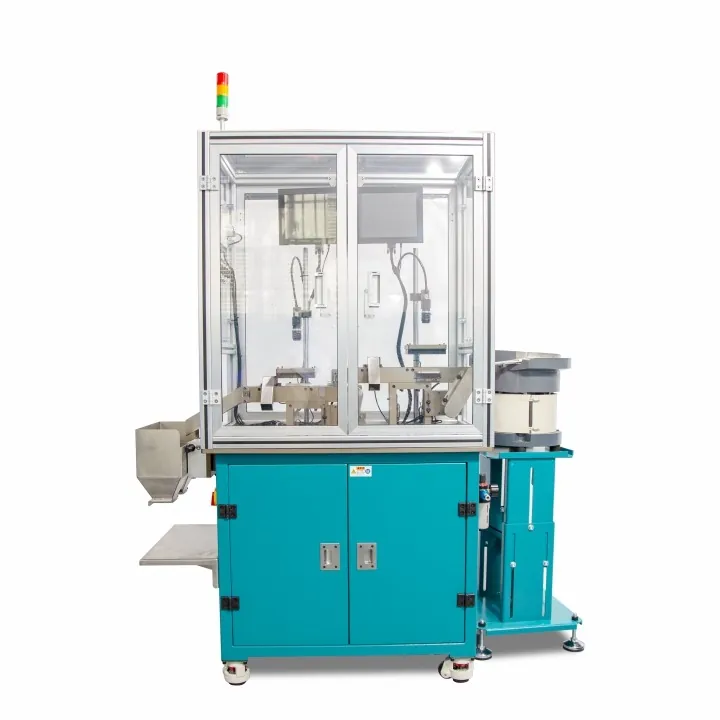

Aluminium Battery Electrode Inspection Machine
A vibratory bowl feeds electrode pieces; two cameras check each, and the screen shows OK.
This machine checks aluminium battery electrode pieces with cameras, one piece at a time.

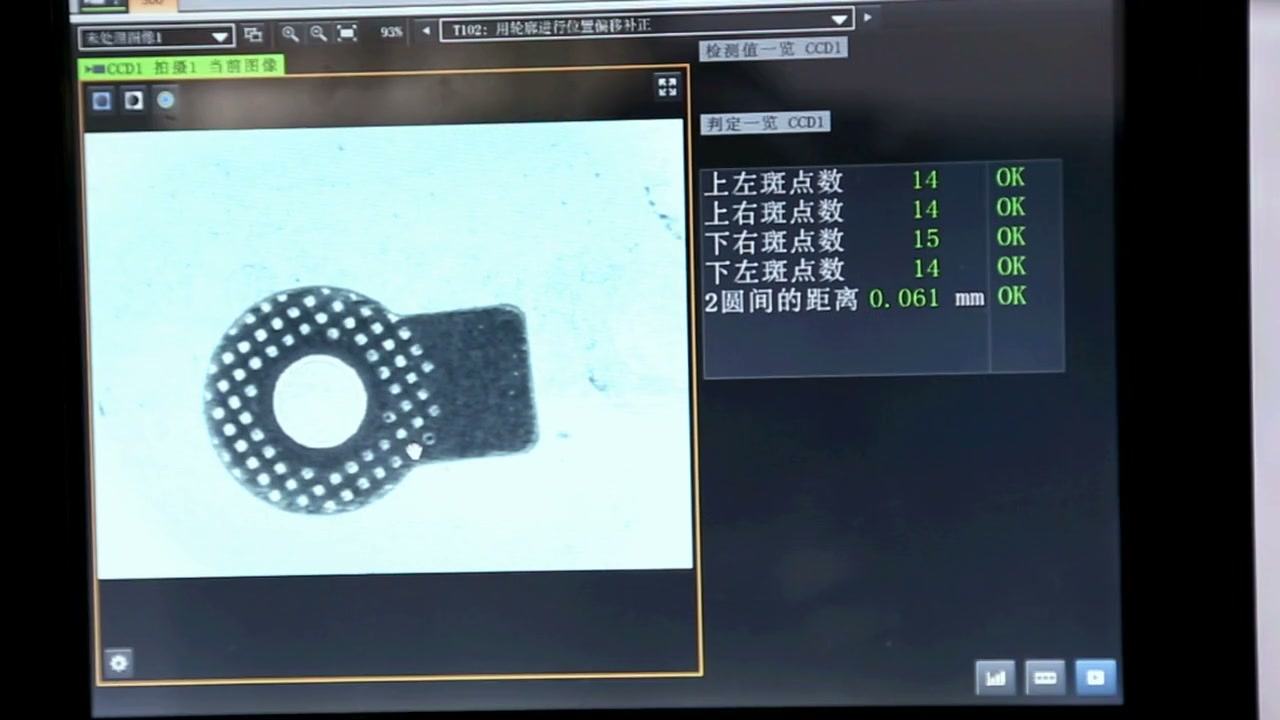

A vibratory bowl feeds the pieces to two camera stations, and the screen shows each piece's image, the dot count in each area and the distance between its two circles, with the result. The standard model checks 200–250 pieces per minute on a belt, in a cabinet 1200 × 550 × 1850 mm.
Send photos of your part and tell us what needs checking, and we'll tell you whether it fits.
Key Points
- Two camera stations check every piece
- Vibratory bowl feeding
- 200–250 pieces per minute (standard model)
- Belt-type transfer
- Compact cabinet: 1200 × 550 × 1850 mm
- Set up for your own electrode piece and the checks it needs
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | 200–250 pcs/min (standard model) |
| Transfer | Belt conveyor |
| Machine size (L × W × H) | 1200 × 550 × 1850 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own part and the checks it needs.
Suitable Parts
Aluminium battery electrode pieces.
Frequently Asked Questions
How it works: How a Vision Inspection Machine Checks Caps and Parts
Request a Quote for This Machine
Send us your part and tell us what to check. We check which machine fits, then send you a quote.
