High-Speed Box Lid Assembly Machine
Clear box lids run along the conveyor past pick-and-place stations while a vibratory bowl feeds the small parts.
This machine assembles box lids at high speed.

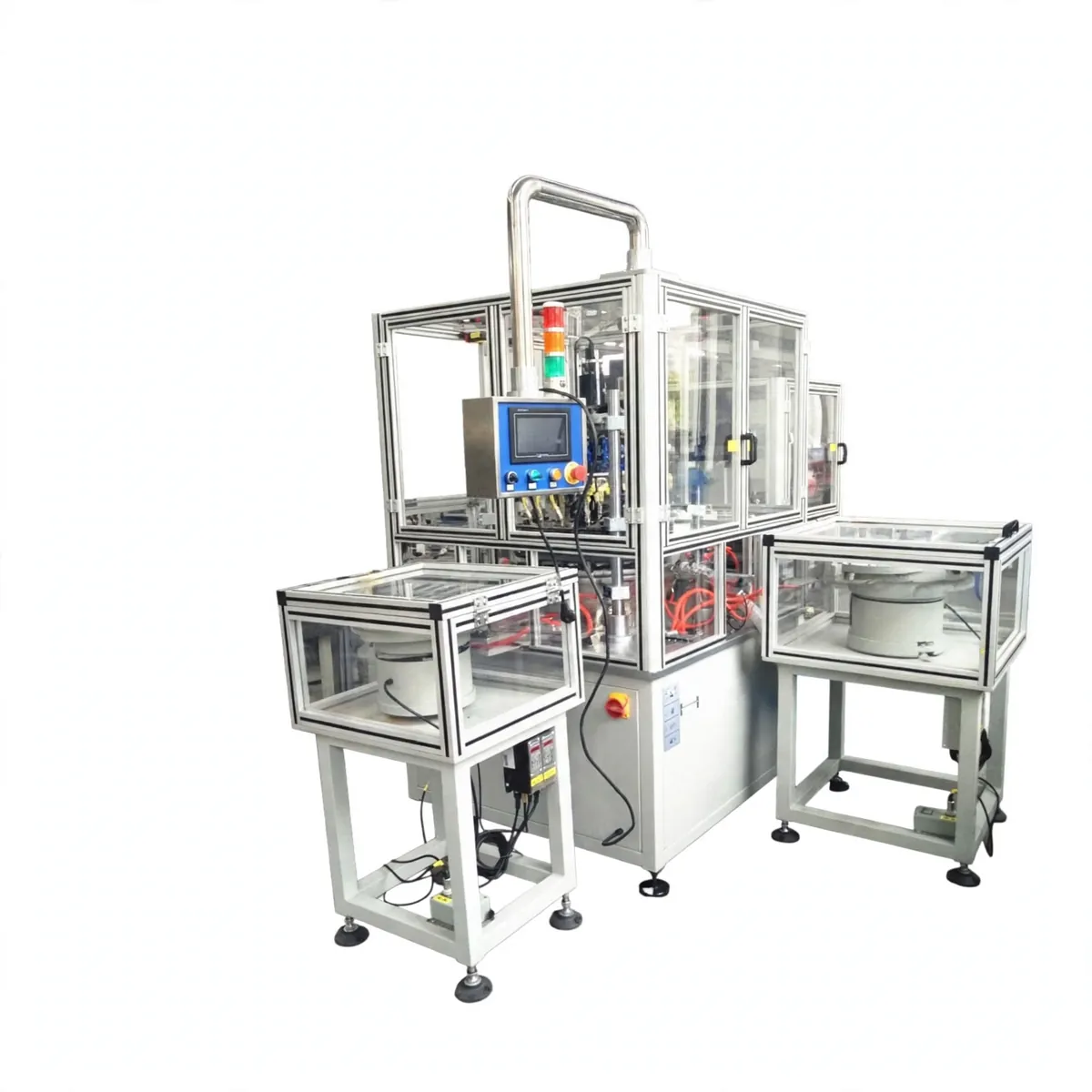

The machine pictured works inside a glass-panelled frame, with two vibratory bowls, each under its own clear cover, feeding the lid parts. It runs from a touch screen beside the frame.
Send photos or drawings of your part and the steps you need, and we'll tell you whether it fits.
Used for: Food container lid assembly machines
Overview
Key Points
- Set up around your own lid parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Typical output | 20–40 pcs/min (depends on part and configuration) |
| Power supply | Single-phase 220 V, 50 Hz |
| Air supply | 0.5–0.6 MPa |
| Configuration | Set by your part and output |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every machine is set up around your own lid parts.
What It Runs
Suitable Parts
Box lids made of more than one part.
Answers
Frequently Asked Questions
A box lid assembly machine puts together box lids that are made of more than one part. The machine pictured works inside a glass-panelled frame, with two vibratory bowls, each under its own clear cover, feeding the lid parts, and it runs from a touch screen beside the frame. Send drawings or photos of your lid parts and the steps you need.
Typical output: 20–40 pcs/min (depends on part and configuration). The number of lid parts and the steps you need set the final figure. Send drawings or photos of your lid parts, the steps and your target output, and we'll confirm the speed.
For food container lids that need a seal ring we supply the lid seal ring machine with gantry transfer, and for lunch boxes the lunch box lid assembly machine, which presses lids onto lunch boxes or fits the vent cap. The box lid assembly machine on this page is for box lids made of more than one part. Send drawings and we tell you which fits.
Typical figures are single-phase 220 V, 50 Hz and 0.5–0.6 MPa air for a high-speed box lid assembly machine. Every machine is set up around your own lid parts. Send your lid drawings and target output, and we'll check the fit.
The price depends on the part, the number of steps and the output you need. Send drawings or photos of the part and the finished product, the steps you want the machine to do, and your target output, and we send an exact quote within 24–48 hours.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
How the parts are fed: How a Vibratory Bowl Feeder Works, Step by Step
