Custom Printing & Assembly Line

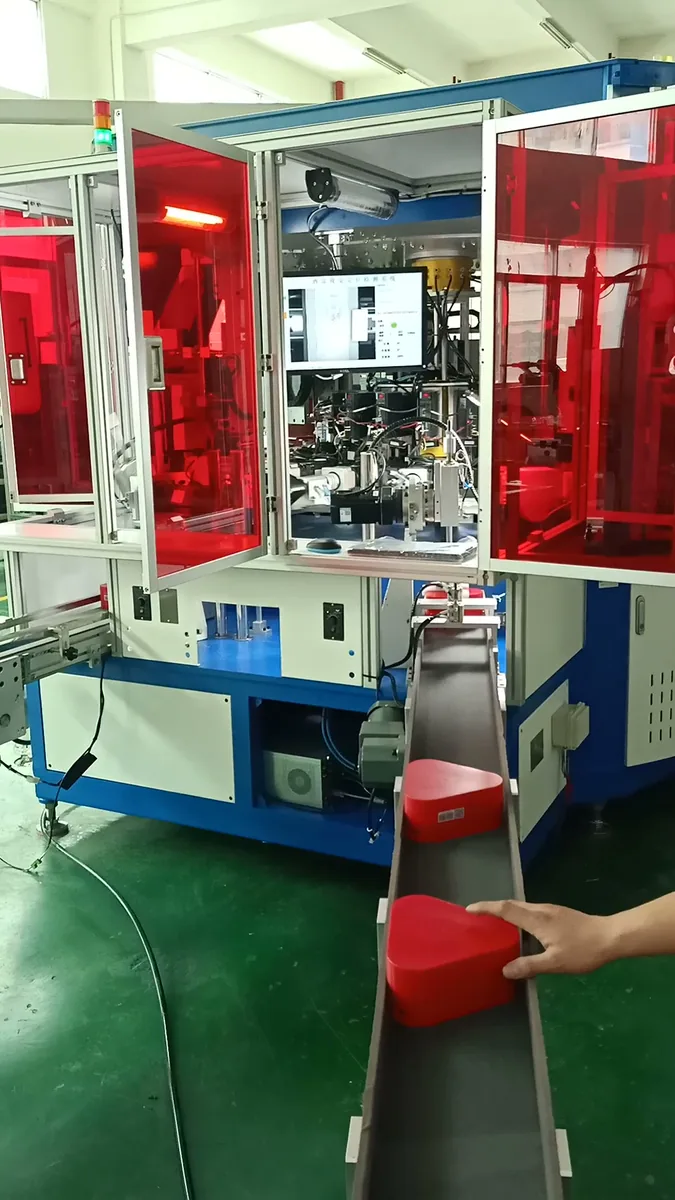

Triangular parts feed in; robot grippers behind red guards pick, flip and pass them on.
This line prints and assembles triangular parts for spirits packaging in one run.

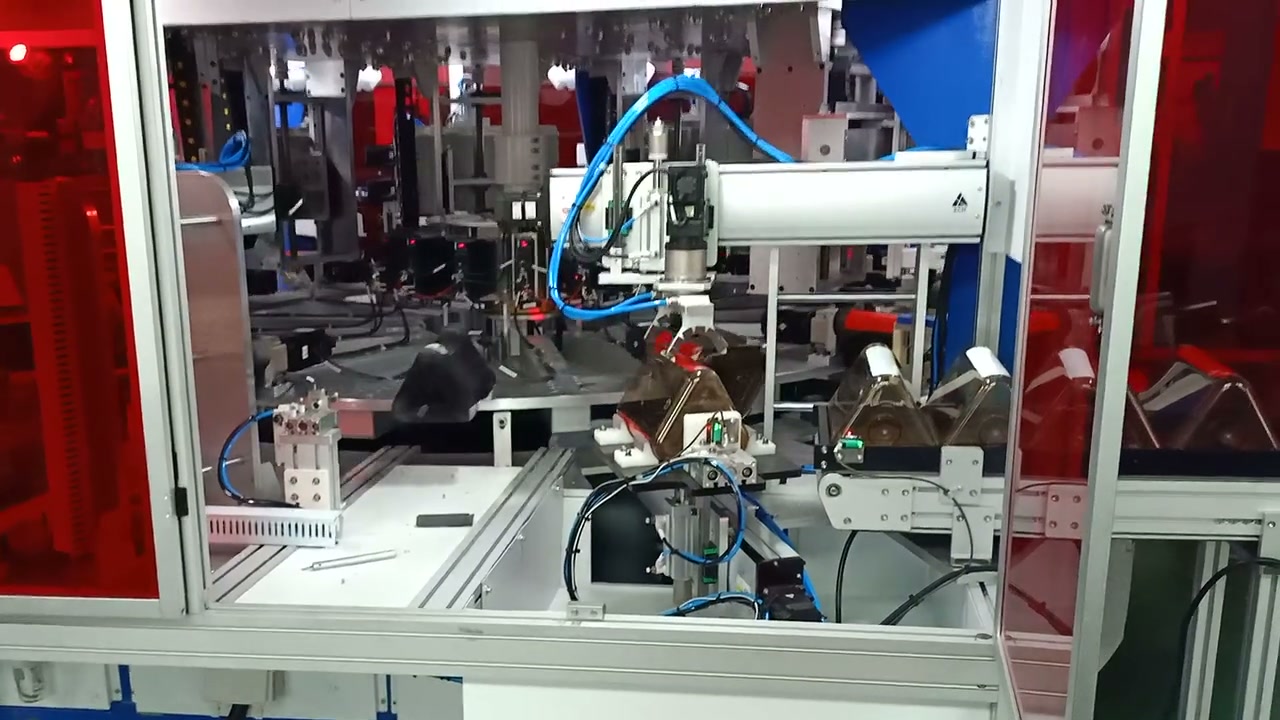

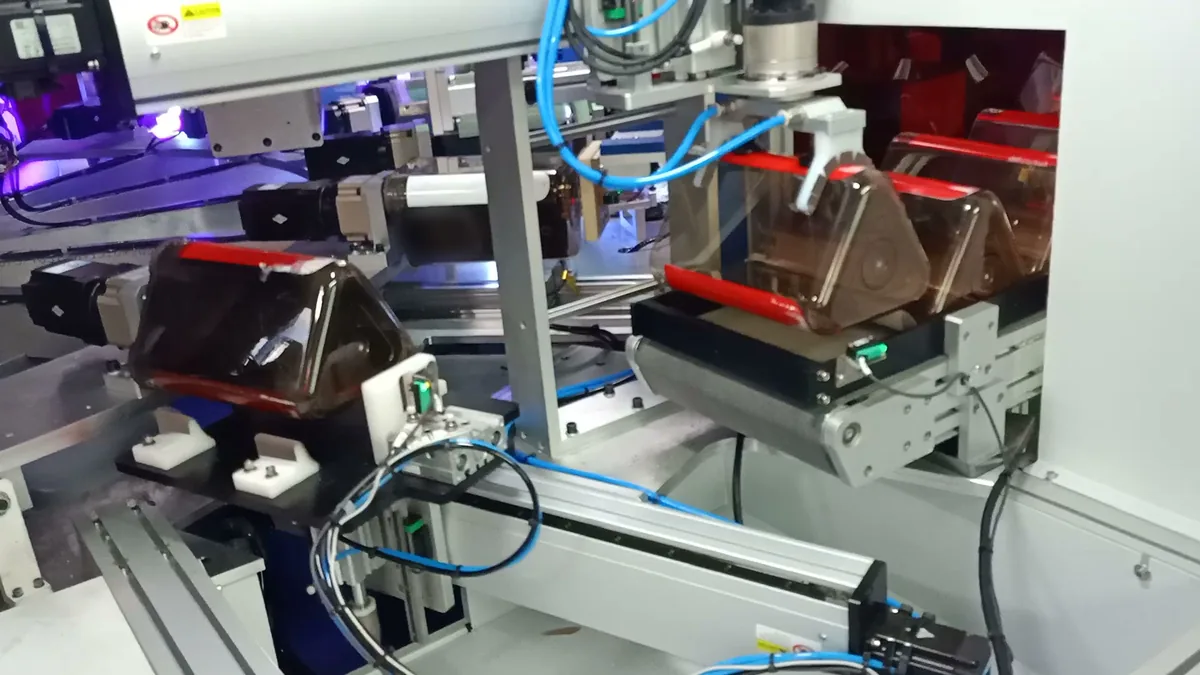

Parts slide in down a feed chute. Rotary screen printing stations print them and UV lamps cure the ink, while robot grippers behind red safety guards pick, flip and pass each part on to the next station. A typical line runs about 1,200–1,800 parts per hour.
Send drawings or photos of your parts and the print, tell us the steps you need, and we'll tell you how the line can be laid out, and how fast.
Key Points
- Screen printing and UV curing in the same line as assembly
- Robot grippers pick, flip and pass parts from station to station
- Vision positioning check for each box
- About 1,200–1,800 parts per hour (typical)
- Red safety guards around the printing and robot stations
- Laid out around your own parts, print and steps
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 1,200–1,800 pcs/hour (typical, depends on part size and the number of print colours) |
| Processes | Vision positioning, screen printing, UV curing, robotic pick, flip and transfer |
| Layout | Rotary printing stations and robot stations behind red safety guards, fed by a chute |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures. Every line is laid out for your own parts, print and steps.
Suitable Parts
Spirits boxes and box parts that need printing and assembly, such as the triangular boxes shown.
