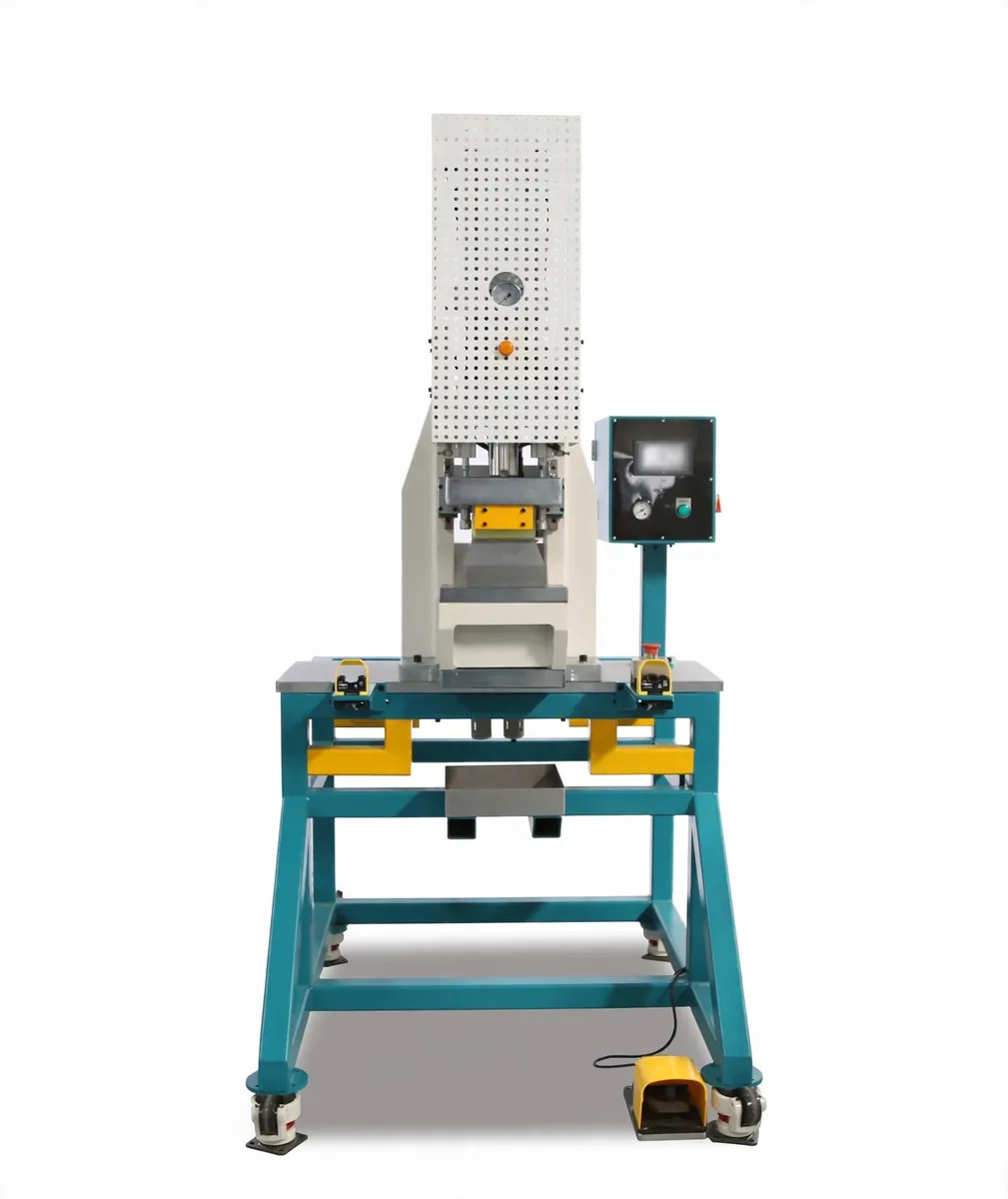

Lab Sample Cutting Press

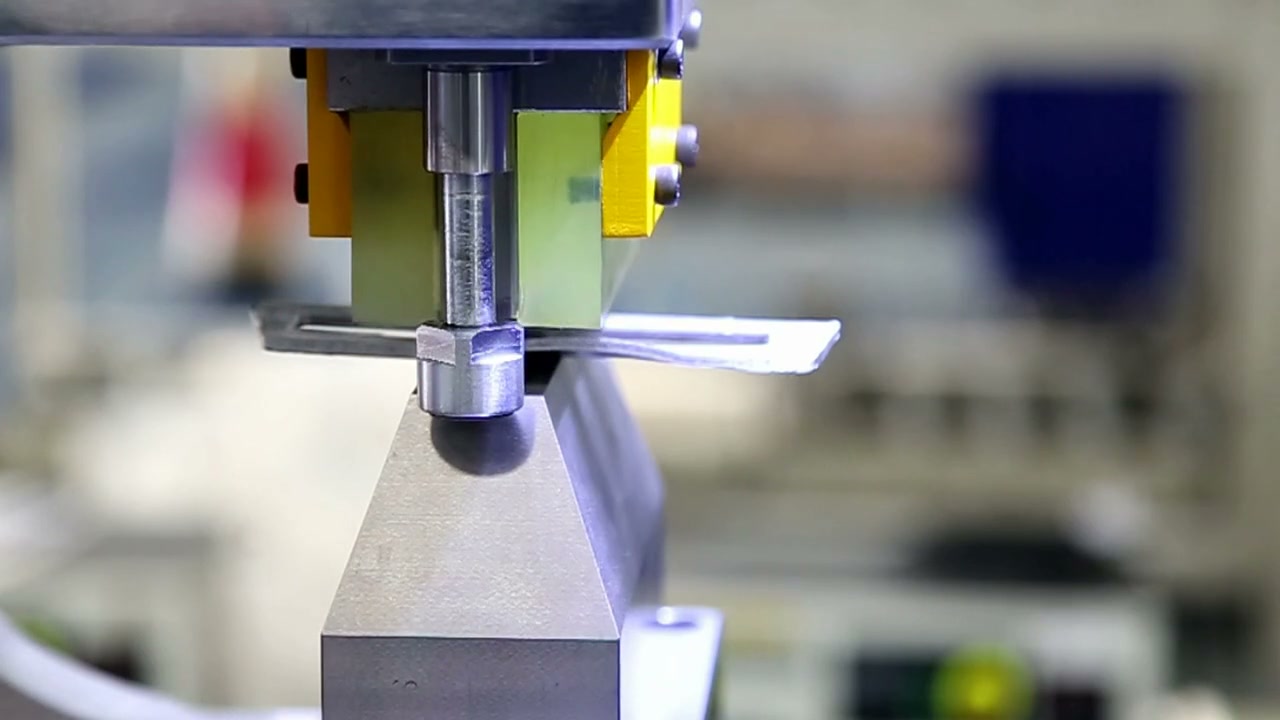

An operator presses the start button, and the punch comes down on the sheet strip.
A press that cuts test samples from sheet material for the lab.
It runs on compressed air through an air-over-oil booster cylinder, so no hydraulic power unit is needed, and it uses two-hand control with an anti-pinch function for operator safety.
Send us your material, the sample shape you need and the sheet size, and we'll tell you whether it fits.
Overview
Key Points
- Cuts lab test samples from sheet material
- Air-over-oil booster cylinder: runs on compressed air, no hydraulic power unit
- One sample per stroke, loaded by the operator
- Two-hand control with anti-pinch function
- Supplied with booster cylinder, cutting die, electrical controls, main frame and work table
- Takes parts with an inside width of at least 250 mm, inside height of at least 320 mm and outside height up to 440 mm
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Drive | Air-over-oil booster cylinder, powered by compressed air (no hydraulic power unit) |
| Operation | One sample per stroke, loaded by the operator, two-hand control |
| Scope of supply | Booster cylinder, die, electrical controls, main frame and work table, one set each |
| Part size it takes | Inside width at least 250 mm, inside height at least 320 mm, outside height up to 440 mm (standard model) |
| Machine size (L × W × H) | 1000 × 1500 × 2200 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own material and sample.
What It Runs
Suitable Parts
Sheet material that needs test samples cut out.
Answers
Frequently Asked Questions
Your material, the sample shape and size you need to cut, and the size of the sheet or part. With those, we'll send an exact quote within 24–48 hours.
It depends on the material, the sample shape and the die. Send us those details, and we'll send an exact quote within 24–48 hours.
No. It runs on compressed air through an air-over-oil booster cylinder, so no hydraulic power unit is needed.
Each lab sample cutting press is made to your parts by a long-term partner factory. We choose the machine for your part, install and commission it on site, train your team and supply the spare and wear parts, so after-sales goes through one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine fits, then send you a quote.
