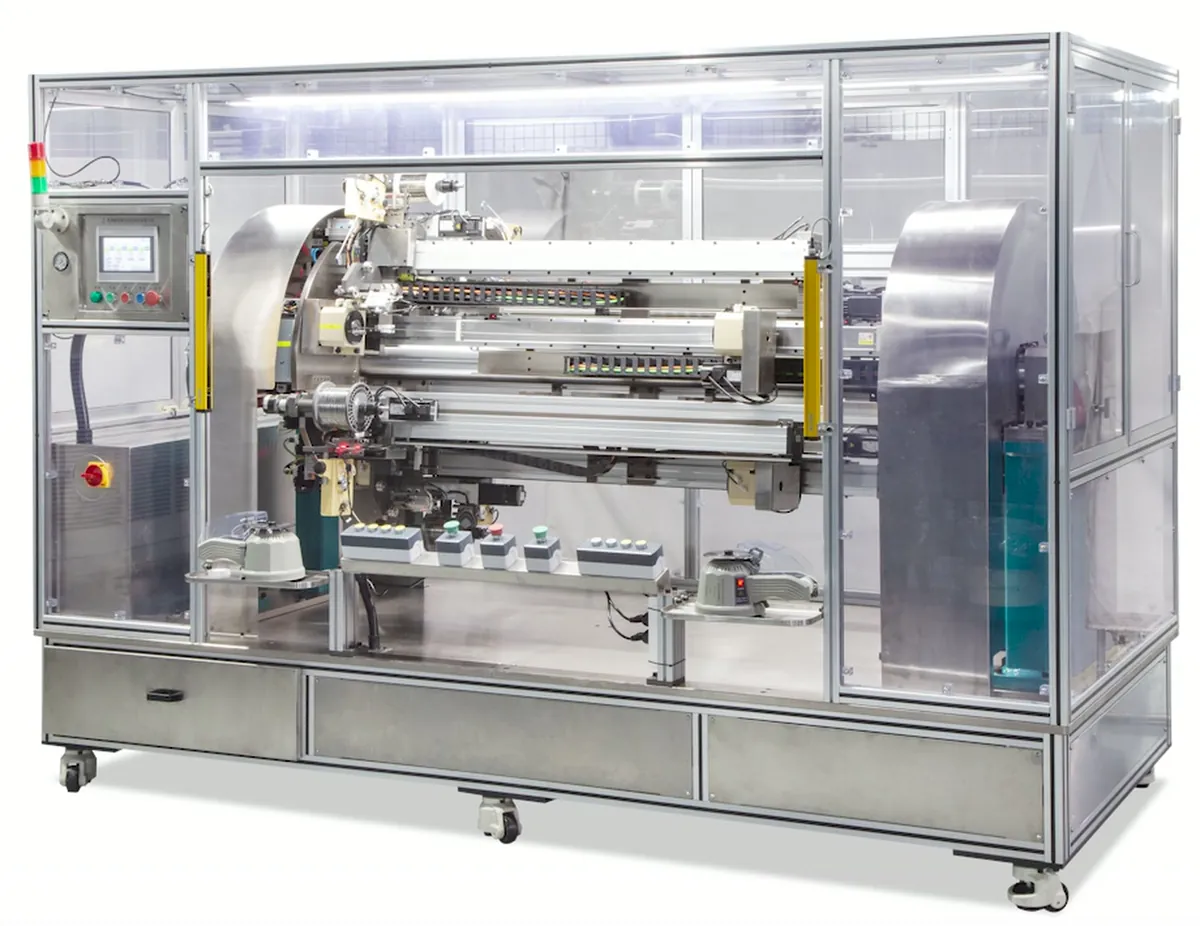

Medical Wire Winding Machine

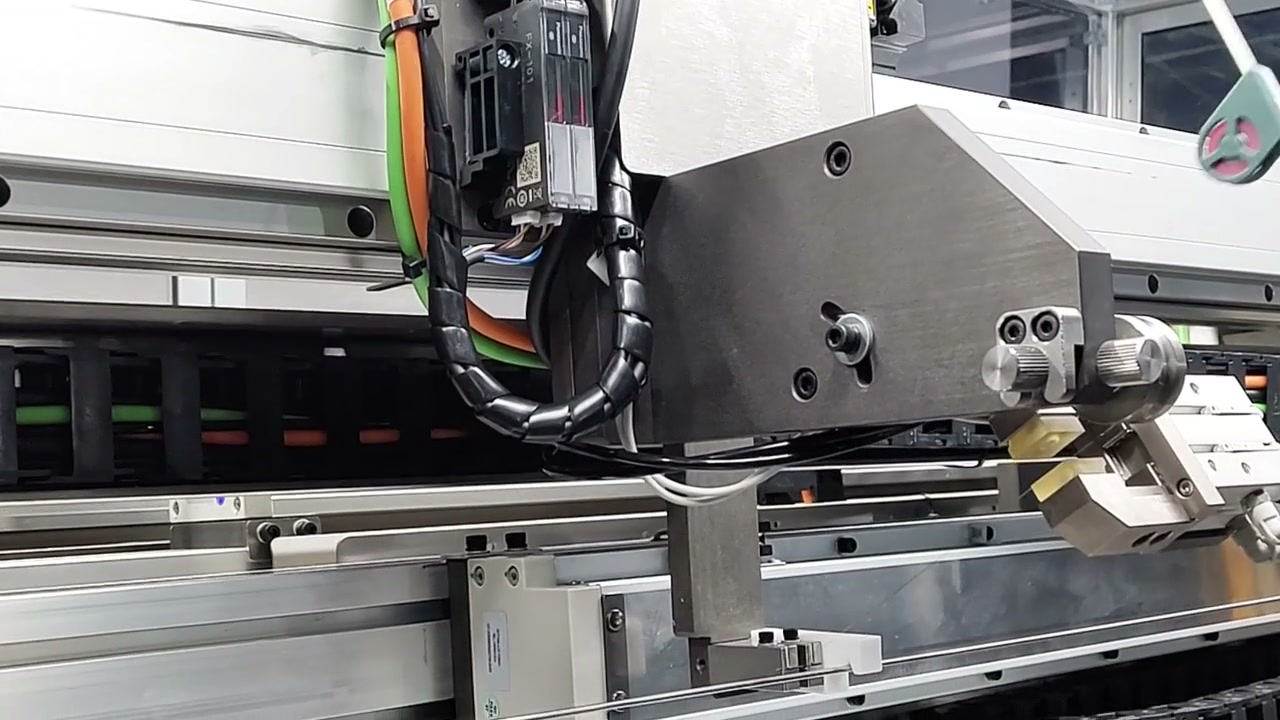

A guide wheel feeds fine wire as the winding head travels along the long mandrel.
This automatic winding machine winds fine wire along a mandrel, for medical wire parts.

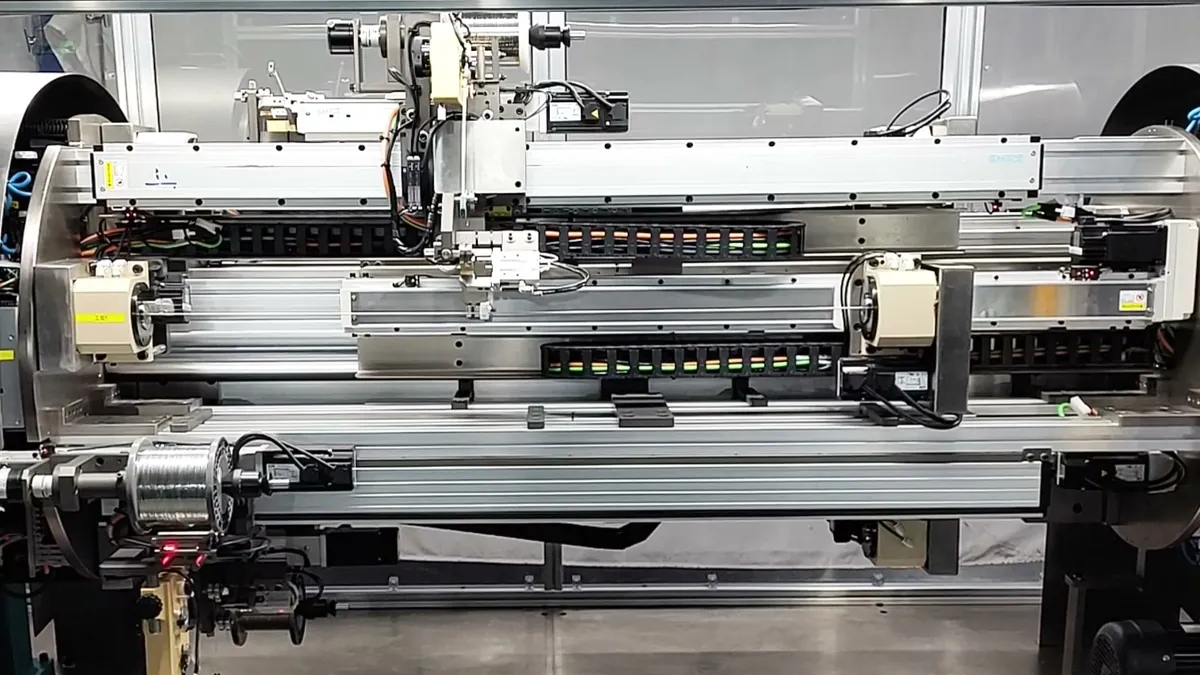

A guide wheel feeds the wire while the winding head travels along the mandrel. The standard model takes mandrels adjustable up to 1300 mm and winds a length of 1000 mm, in a guarded frame 2600 × 1200 × 2000 mm.
Send drawings or photos of your part and the wire you use, and we'll tell you whether it fits.
Overview
Key Points
- Winds fine wire along a mandrel
- Mandrel adjustable up to 1300 mm, winding length 1000 mm (standard model)
- Set up around your own wire and part
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Winding length | Up to 1000 mm (standard model) |
| Mandrel length | Adjustable, up to 1300 mm (standard model) |
| Machine size (L × W × H) | 2600 × 1200 × 2000 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own wire and part.
What It Runs
Suitable Parts
Medical parts made by winding fine wire along a mandrel.
Answers
Frequently Asked Questions
Drawings or photos of the part and the finished product, the wire you use, and your target output.
It depends on the part, the wire and the output you need. Send us those details, and we'll send an exact quote within 24–48 hours.
The standard model takes mandrels adjustable up to 1300 mm and winds a length of 1000 mm. Send us your part, and we'll tell you whether it fits.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine fits, then send you a quote.
