Dip Tube Inserting Machine

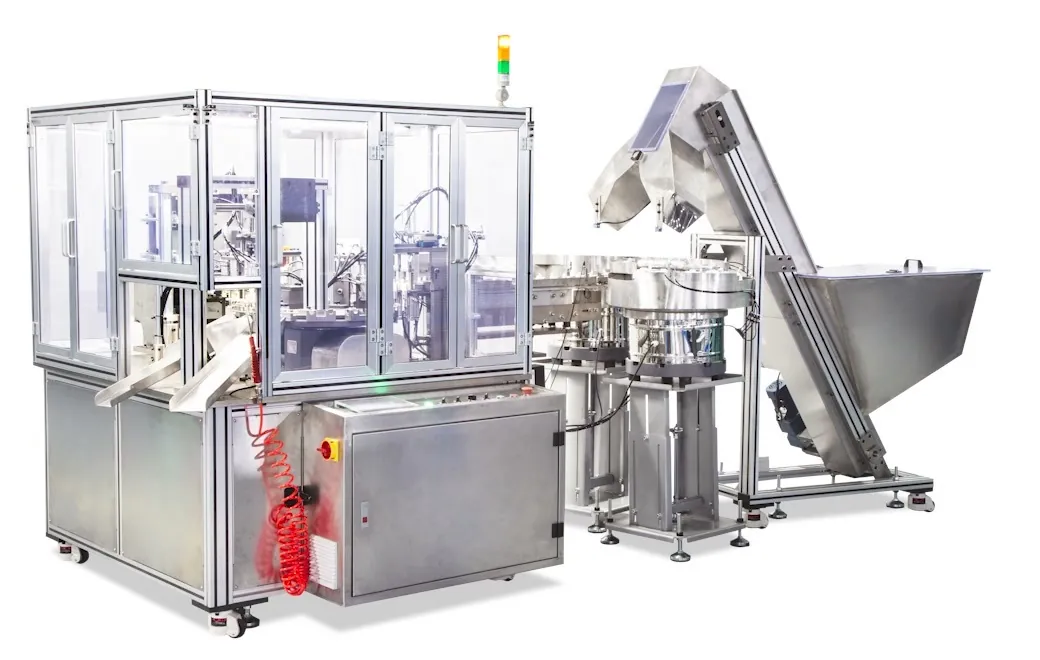

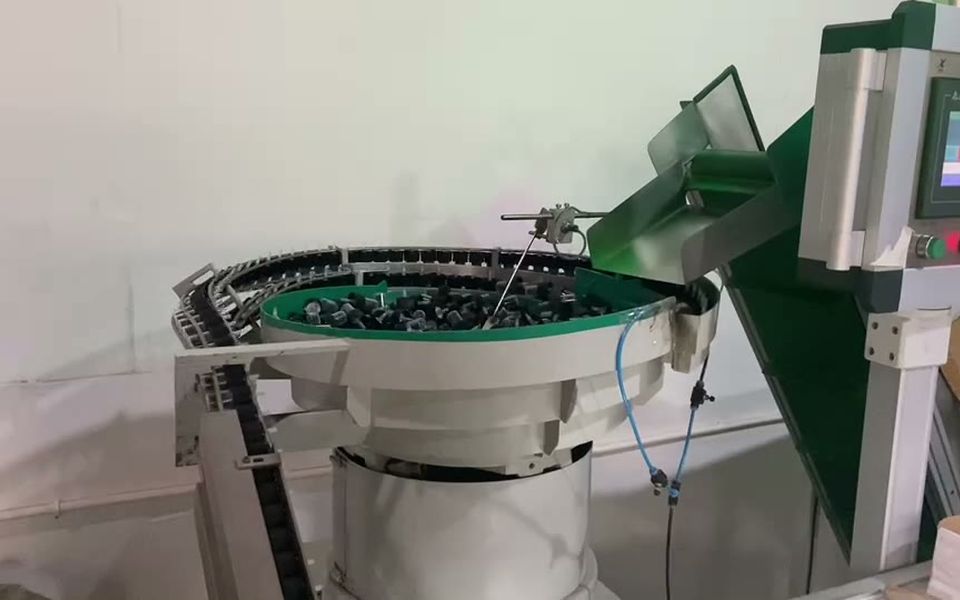

A dip tube inserting machine we supplied in Pakistan, rated at 1,200 finished pumps per hour.

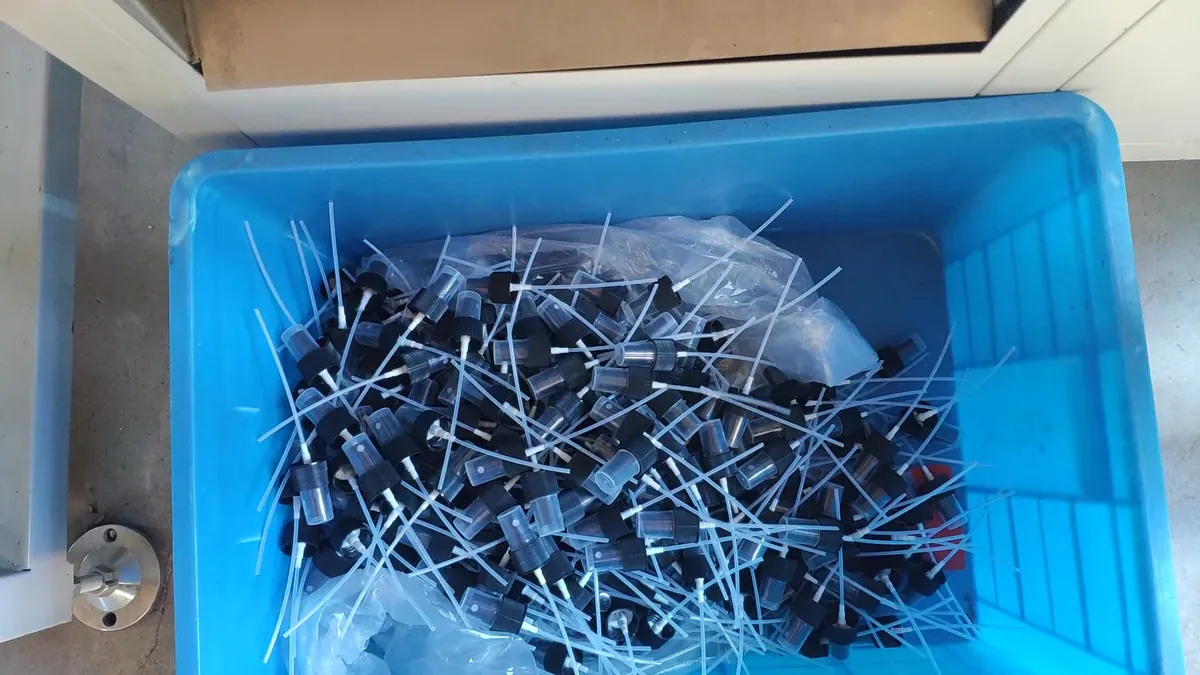

This machine fits the dip tube into each pump, so tubes no longer go in by hand.
We have supplied dip tube inserting machines to customers in Pakistan; one for a personal care packaging customer there is rated at 1,200 finished lotion pumps per hour. Every machine is set up for the customer's own parts.
Other dip tube inserting machines we have supplied are rated at up to 4,800 pumps per hour.
Send drawings or photos of each part and the assembled pump, and we'll tell you whether it can be assembled, and how fast.
Used for: Lotion pump assembly machines
Key Points
- This machine fits the dip tube into each pump, so tubes no longer go in by hand

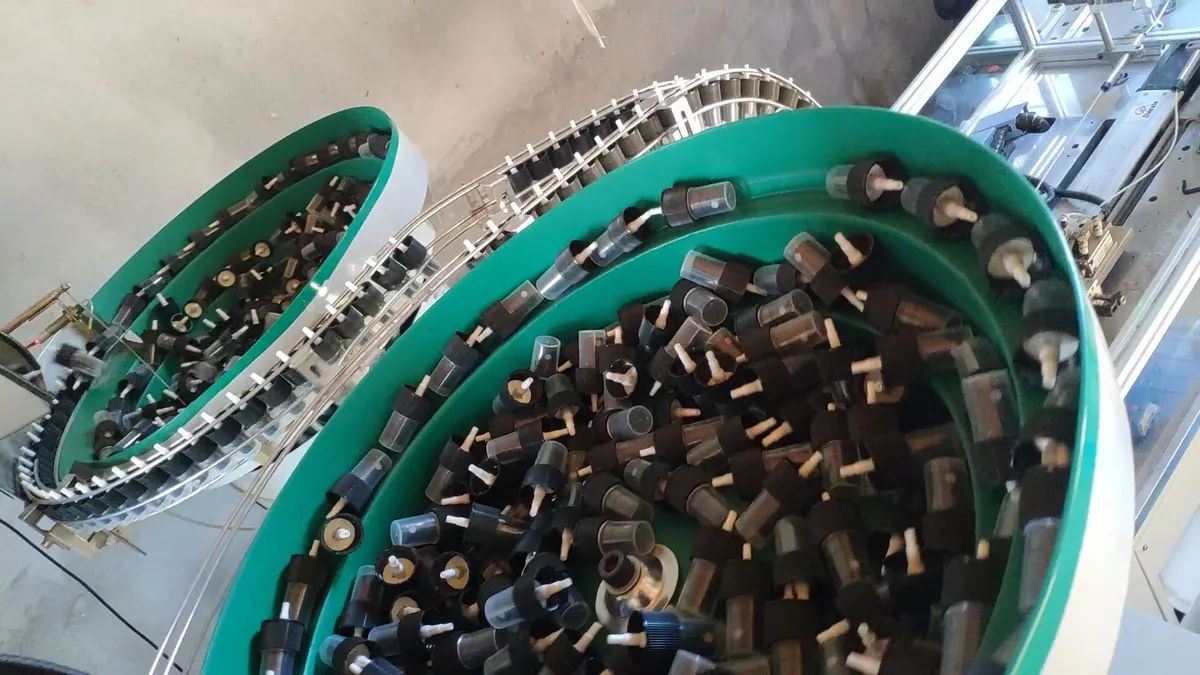

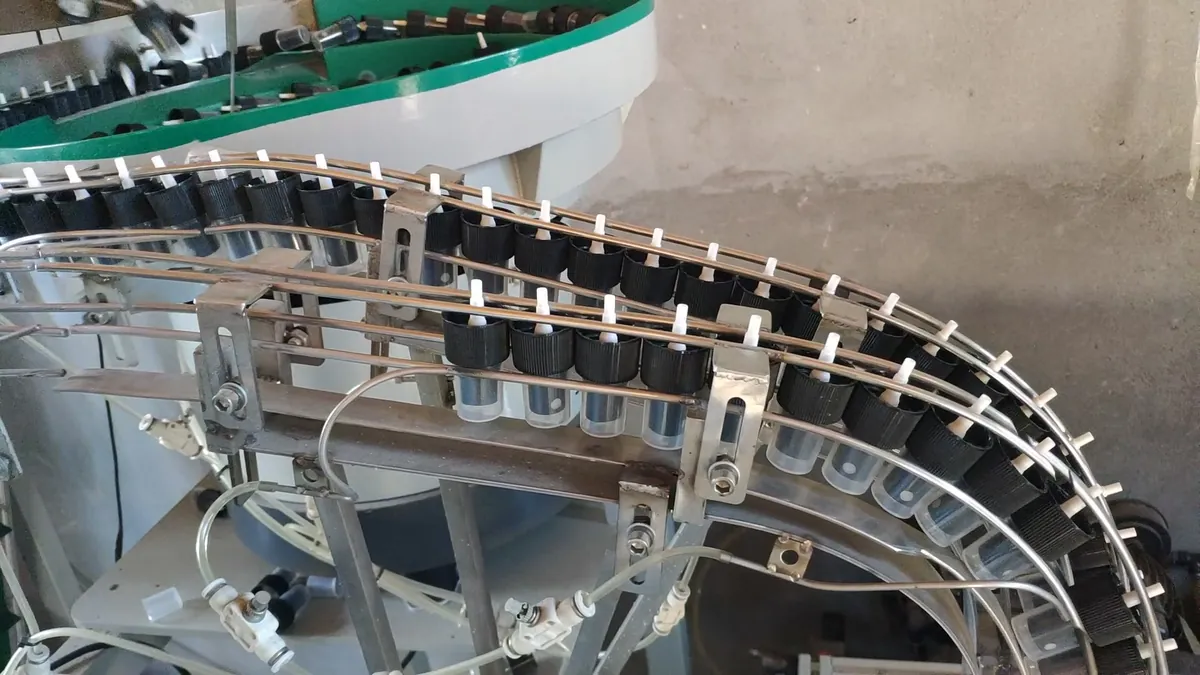

- An inclined elevator tips the pump heads into a vibratory bowl, which lines them up for the inserting table

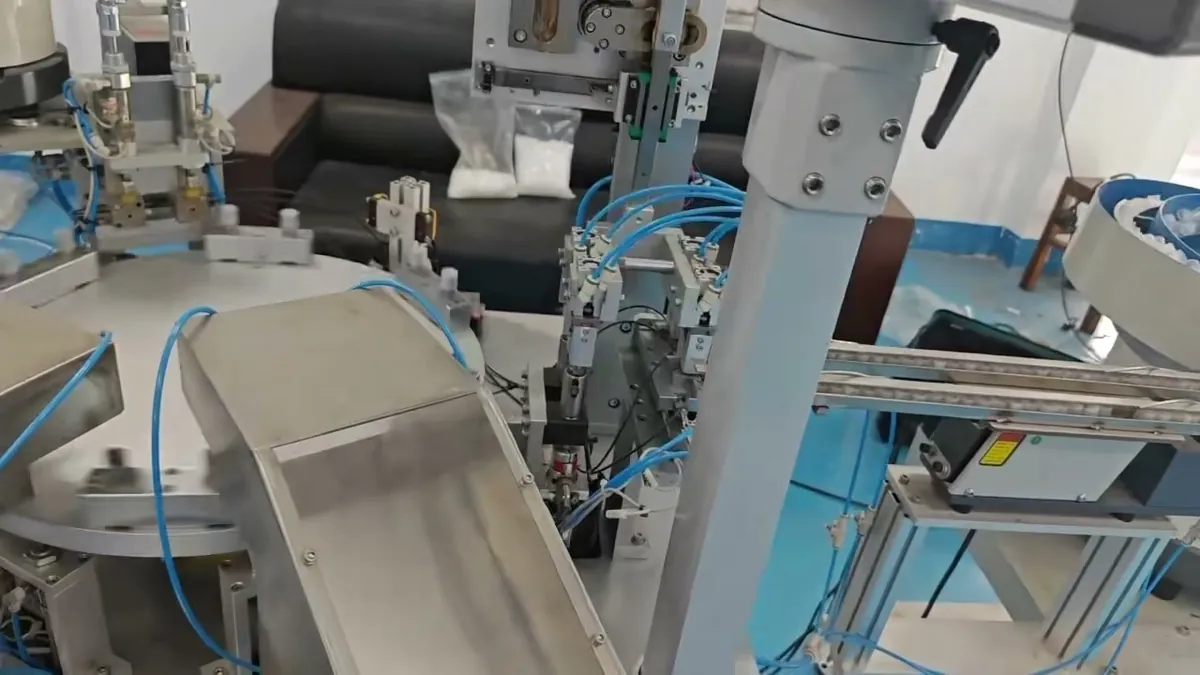

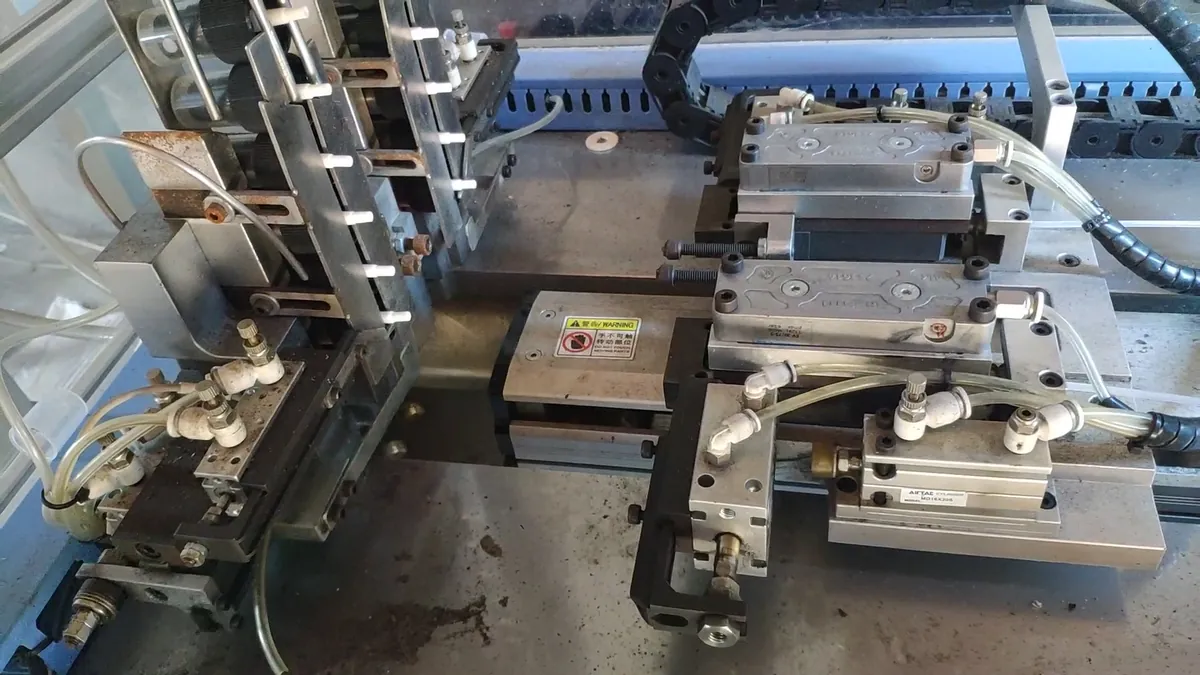

- Tubes are fitted on a long inserting table under a clear cover
- Set up for your own pump parts
- Exact quote within 24–48 hours once we have your part details
Typical specifications
| Item | Value |
|---|---|
| Power supply | 220 V |
| Air supply | 0.5–0.7 MPa |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
Suitable Parts
Lotion pumps and aerosol spray parts that take a dip tube.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
