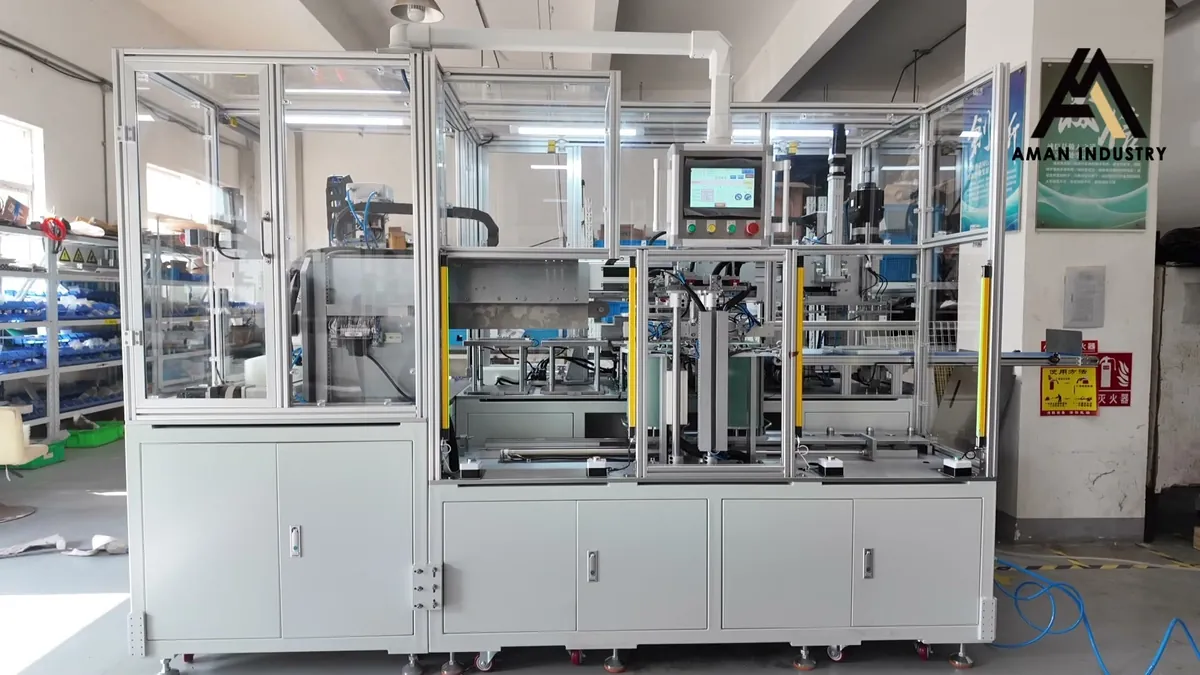

Lid Seal Ring Machine with Gantry Transfer

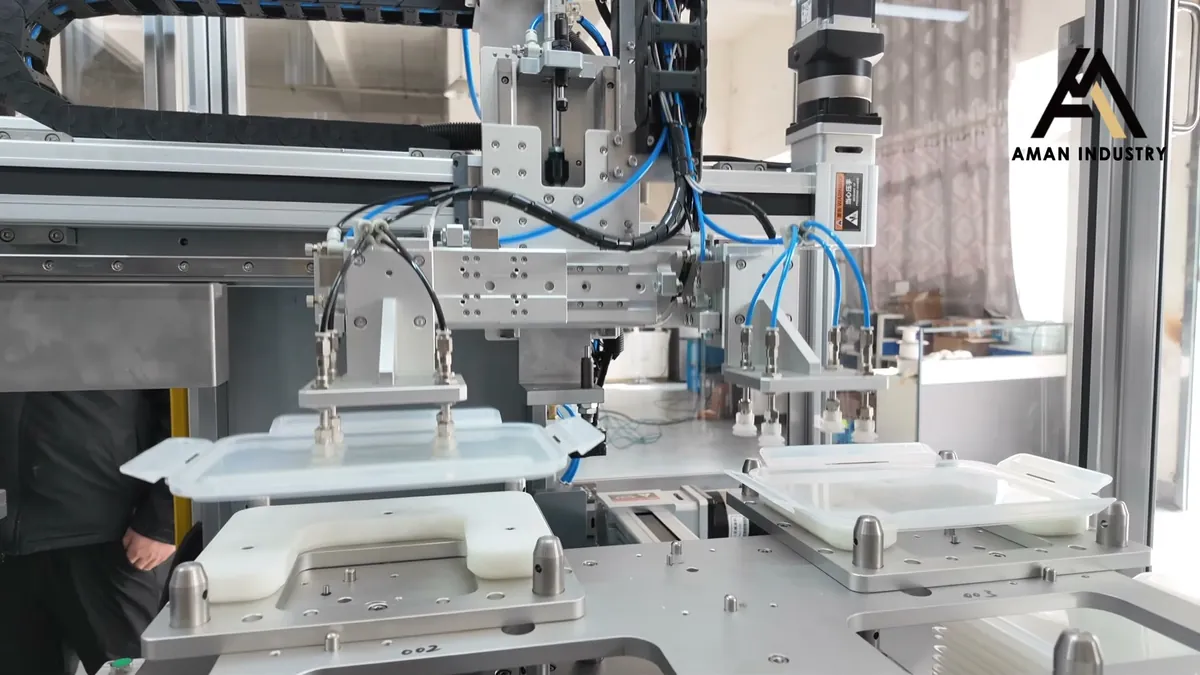

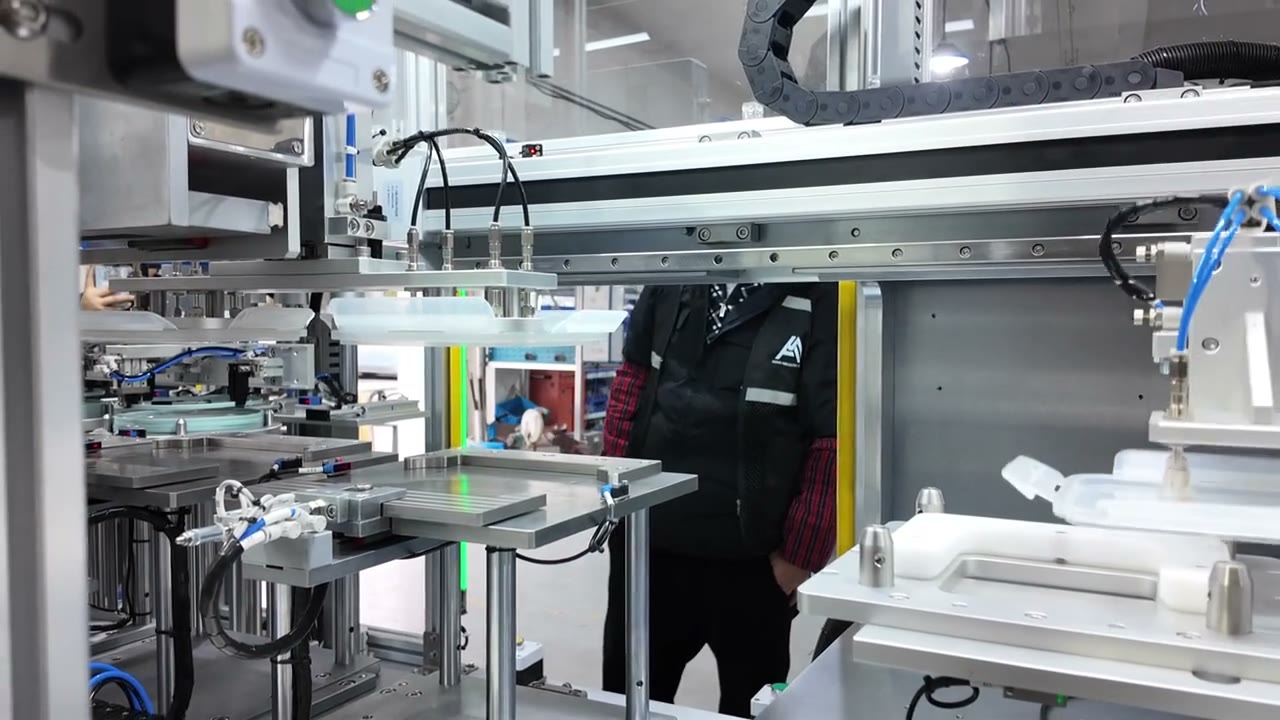

A gantry with suction cups lifts each food container lid and carries it to the next station.
In an airtight food storage container, the seal ring sits inside the lid. This machine fits the ring into each lid.
For a customer in Brazil, we supplied one set up to link with the injection moulding machine: a gantry with suction cups transfers the lids to two pressing stations working side by side, rated at 2,000 finished lids per hour. For a customer in Pakistan, a two-station machine fits the ring into rectangular lids, rated at 800 lids per hour.
Every machine is set up for the customer's own lid and ring. Send drawings or photos, and we'll tell you whether it fits.
Used for: Food container lid assembly machines
Key Points

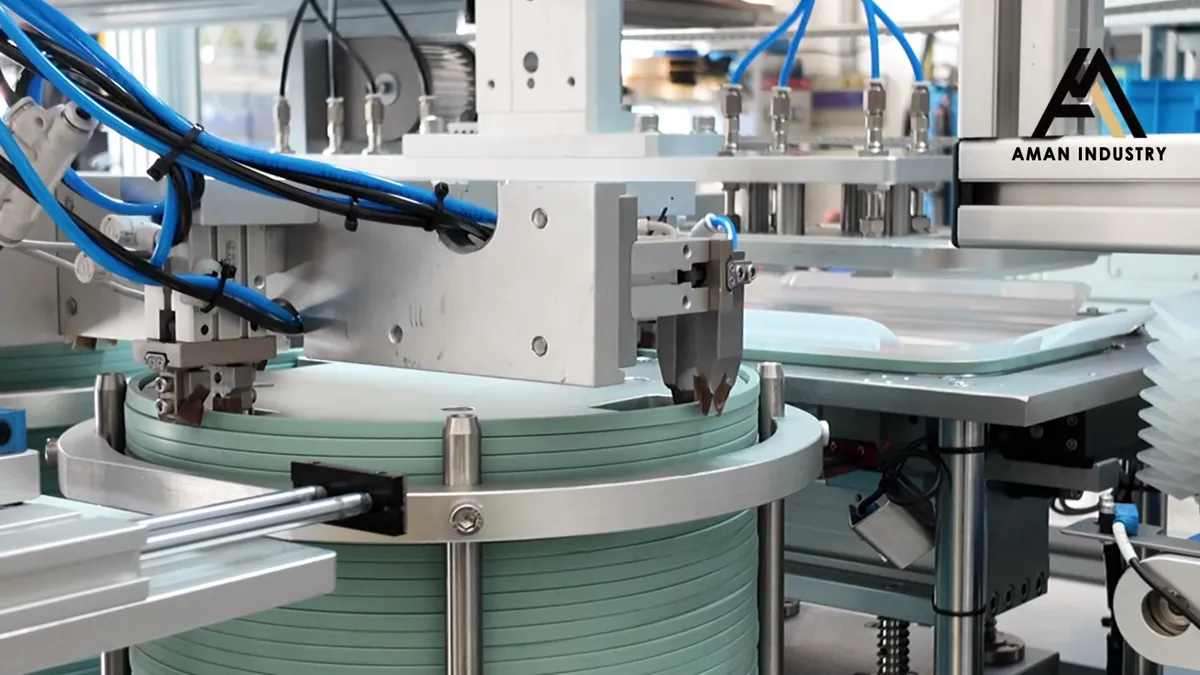

- Fits the seal ring into each food container lid

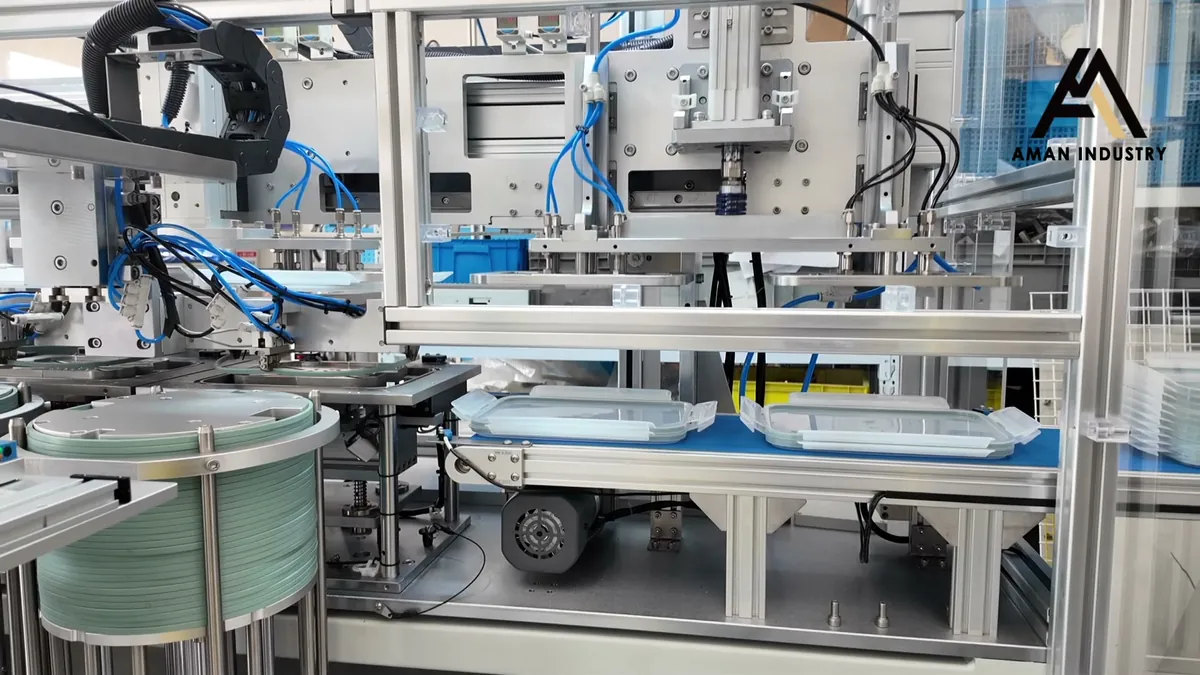

- A gantry with suction cups transfers the lids to the pressing stations

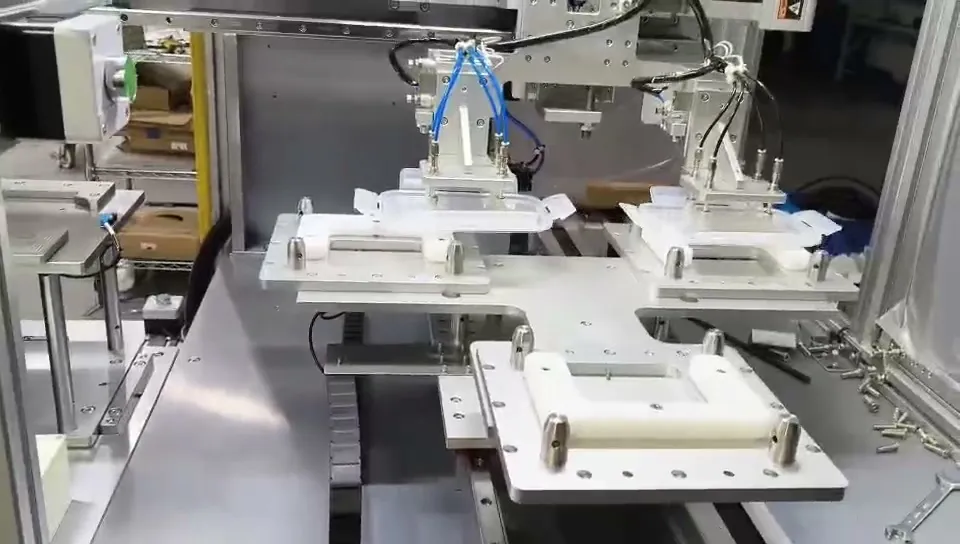

- Two stations can work side by side at the same time
- Can be set up to link with the injection moulding machine
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Power supply | Single-phase 220 V, 50 Hz |
| Air supply | 0.5–0.6 MPa |
| Machine size (L × W × H) | 2500 × 1350 × 1820 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
Suitable Parts

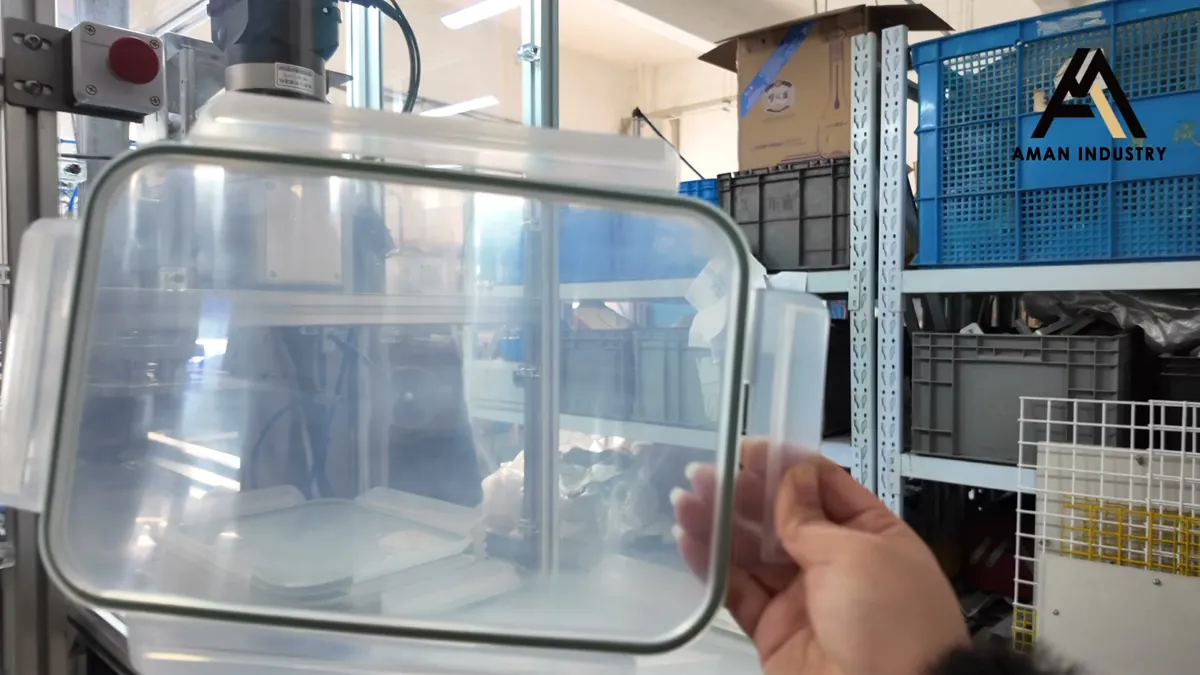

Food storage container lids with a seal ring.
Supplied to a Customer

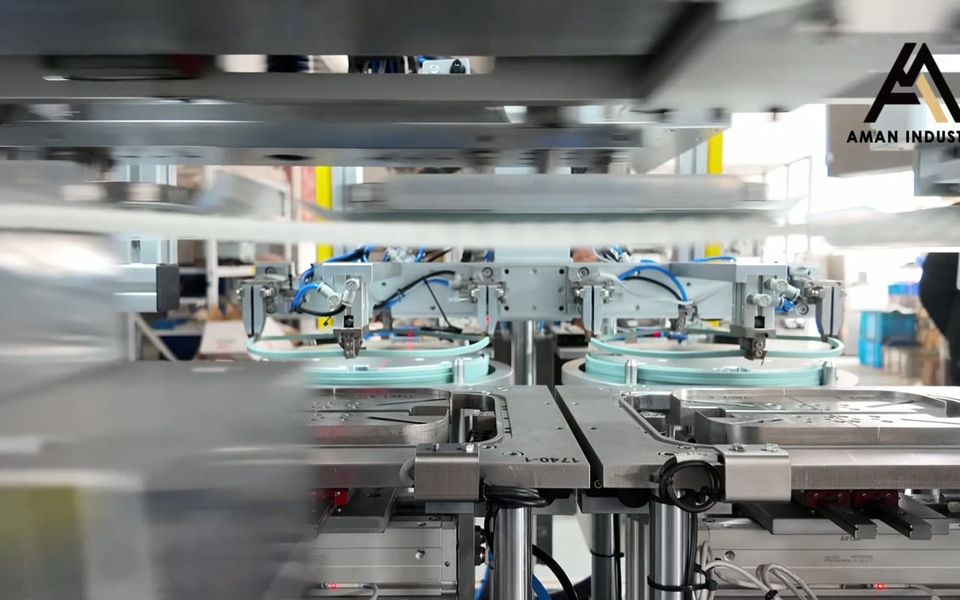

Brazil · Food Storage Containers · Lid and Seal Ring Assembly Machine
A machine that fits seal rings into food storage container lids for a customer in Brazil, rated at 2,000 finished lids per hour and filmed at work in the customer's plant beside the injection moulding machines.
Read the case study →
Pakistan · Food Storage Containers · Two-Station Lid Seal Ring Assembly Machine
A two-station machine that fits a seal ring into each rectangular clear food container lid, supplied to a customer in Pakistan and rated at 800 finished lids per hour.
Read the case study →Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
