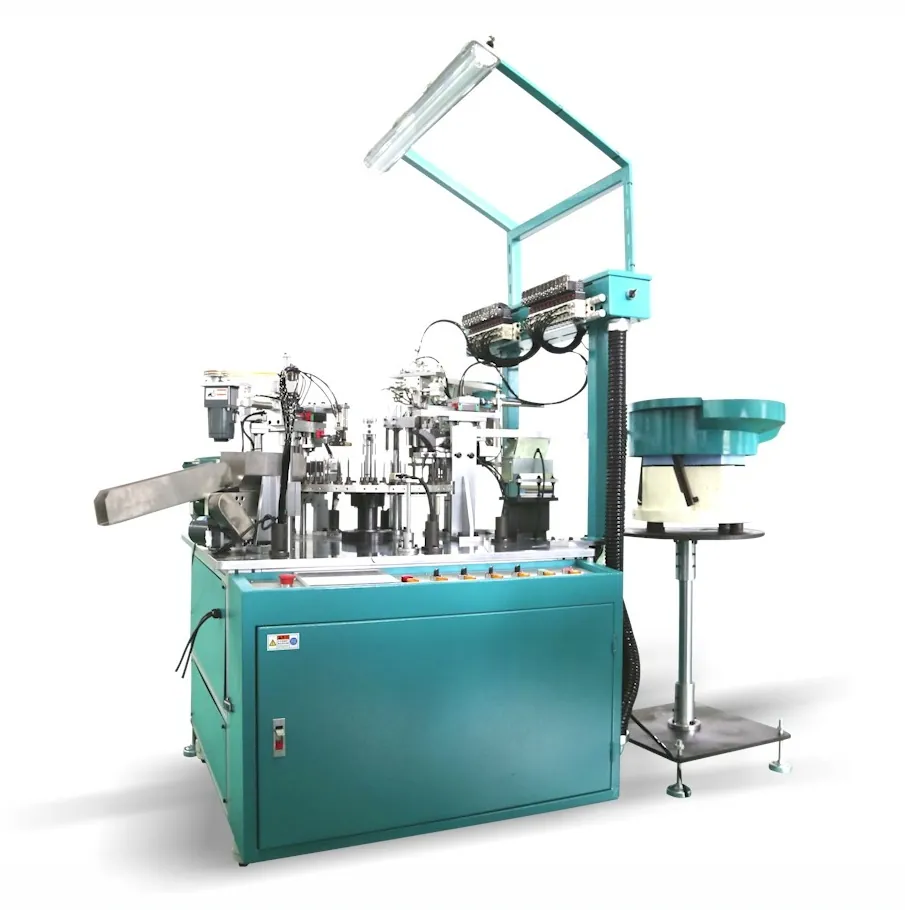

Pen Tip Sleeve & End Plug Assembly Machine

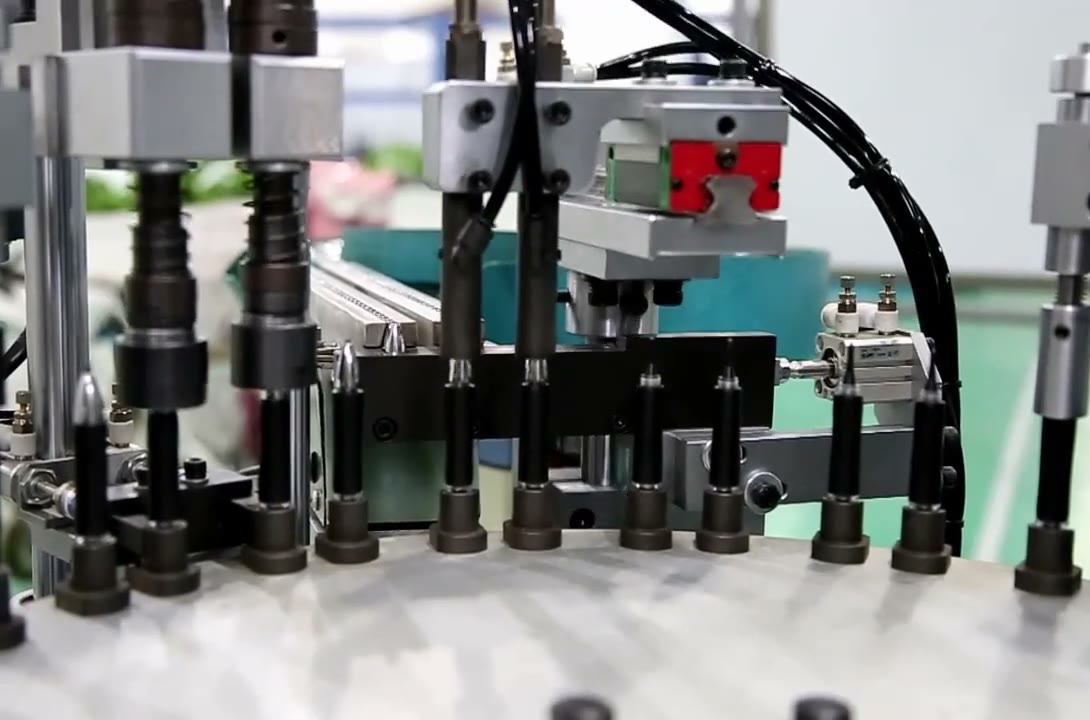

Pressing heads come down station by station to fit a black non-slip sleeve over each pen tip section.

This machine fits the small parts of a pen: tip sleeves, grip sleeves, end plugs and refill float plugs.

We have supplied these machines to pen makers in Pakistan (tip sleeves, grip sleeves and float plugs) and Russia (sleeves and end plugs).

Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.

Used for: Highlighter & marker making machines

Overview

Key Points

  • 50–60 pieces per minute for non-slip grip sleeves on the standard model, on a rotary table
  • Set up for your own pen parts
  • Exact quote within 24–48 hours once we have your part details
Key Figures

Typical specifications

ItemValue
Non-slip grip sleeves50–60 per minute (2 at a time, rotary table)
Machine size (L × W × H)2000 × 1700 × 1600 mm
Warranty2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse)

Final configuration is matched to your part and output.

What It Runs

Suitable Parts

Pens and refills that take tip sleeves, grip sleeves, end plugs or float plugs.

Answers

Frequently Asked Questions

Drawings or photos of each part and the assembled pen, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your pen and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
It fits tip sleeves, grip sleeves, end plugs and refill float plugs. We have supplied it to pen makers in Pakistan (tip sleeves, grip sleeves and float plugs) and Russia (sleeves and end plugs). Send drawings or photos of your parts and we'll tell you whether they can be assembled, and how fast.
A typical non-slip grip sleeve machine runs 50–60 pieces per minute (3,000–3,600 an hour), two at a time, on a rotary table, and measures 2000 × 1700 × 1600 mm. This figure is for non-slip grip sleeves. For tip sleeves, end plugs or float plugs, send drawings or photos and your target output, and we'll tell you how fast.
Our Ballpoint Pen Assembly Machine assembles finished pens from their loose parts, our Pen Cap Assembly Machine assembles pen caps, and our Pen Clip Assembly Machine fits clips onto pens. Our Seal Ring Assembly Machine fits a seal ring onto small pen parts. For the ballpoint pen machines, see our ballpoint pen making machines page; the tip sleeve and seal ring machines are on our Highlighter & Marker Making Machines page. Send photos of your pen parts, and we'll tell you which machines fit.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
