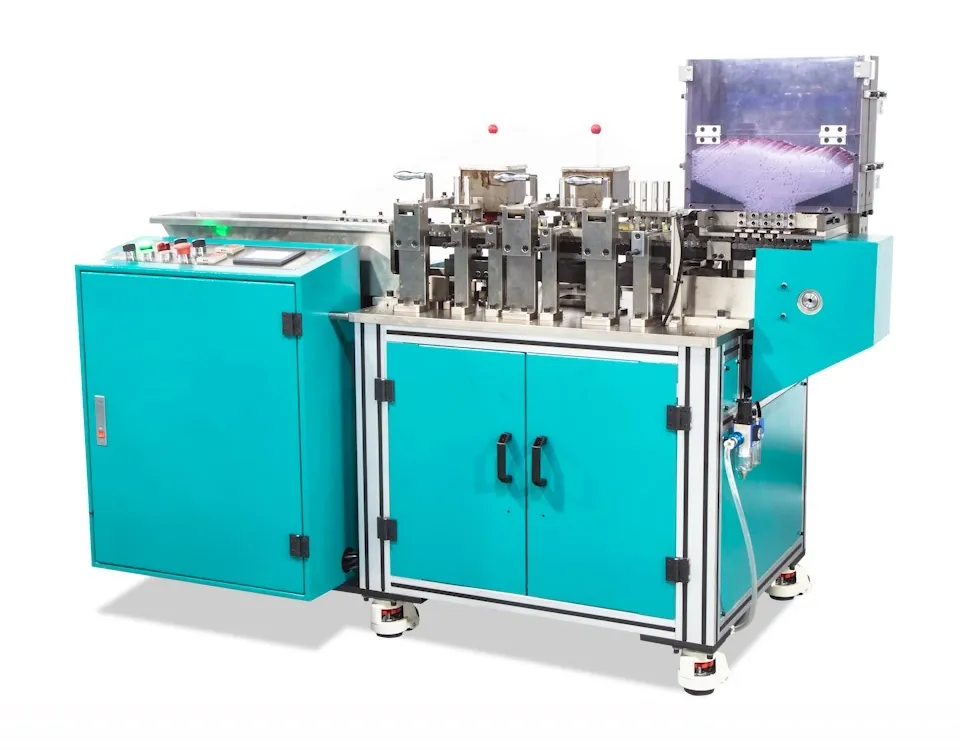

Pen Refill Wax Tipping Machine
Rows of blue refills move along the chain and pass under the wax tipping head.
This machine seals the tip of each refill with wax.
We have supplied wax tipping machines to pen makers in Pakistan, in vertical and horizontal versions and for finished pens, and in Bangladesh.
Send drawings or photos of your refills or pens, and we'll tell you whether the machine fits, and how fast.
Used for: Pen refill making machines
Overview
Key Points
- 120–160 refills per minute, ten at a time (standard model)
- Vertical and horizontal versions; also for finished pens
- Set up for your own refill parts
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Refill wax tipping | 120–160 per minute, 10 at a time; 2038 × 900 × 1175 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
What It Runs
Suitable Parts
Pen refills and finished pens.
Answers
Frequently Asked Questions
Drawings or photos of each part and the assembled refill, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on your refill and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
The standard wax tipping machine tips 120–160 refills per minute, ten at a time, and measures 2038 × 900 × 1175 mm. We have supplied it to pen makers in Pakistan and Bangladesh. Send drawings or photos of your refills and your target output.
We have supplied vertical and horizontal versions, and a version for finished pens. All seal the tip of each refill with wax. Send drawings or photos of your refills or pens and your target output, and we'll tell you which version fits.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
