Seal Ring Assembly Machine

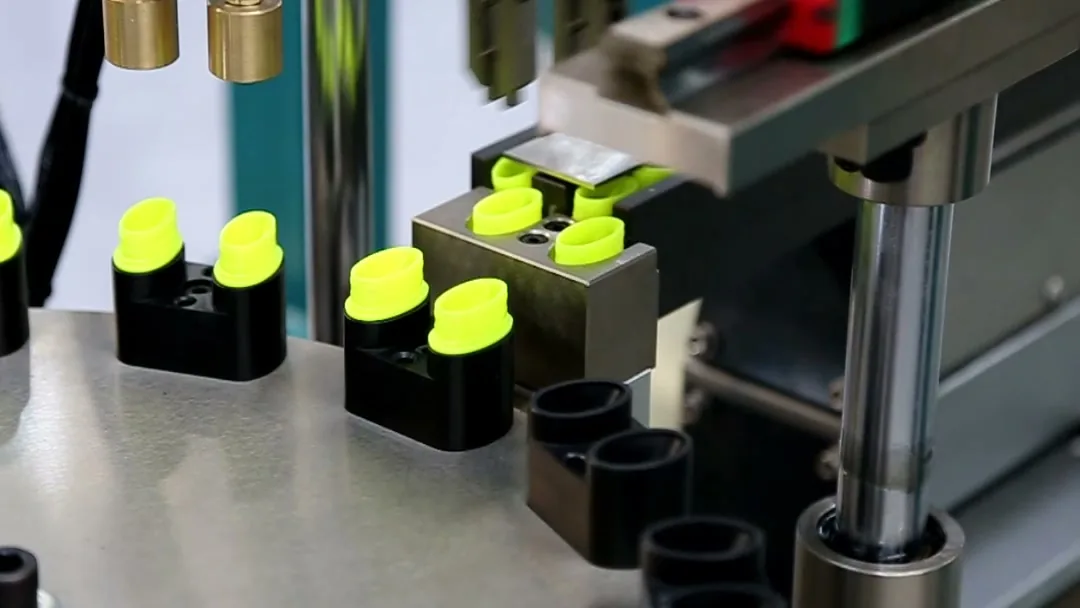

Grippers place yellow marker parts into twin nests, and seal rings are fitted.
This machine fits a seal ring (O-ring) onto small pen parts. The machine shown fits a clear O-ring onto a yellow marker pen part.

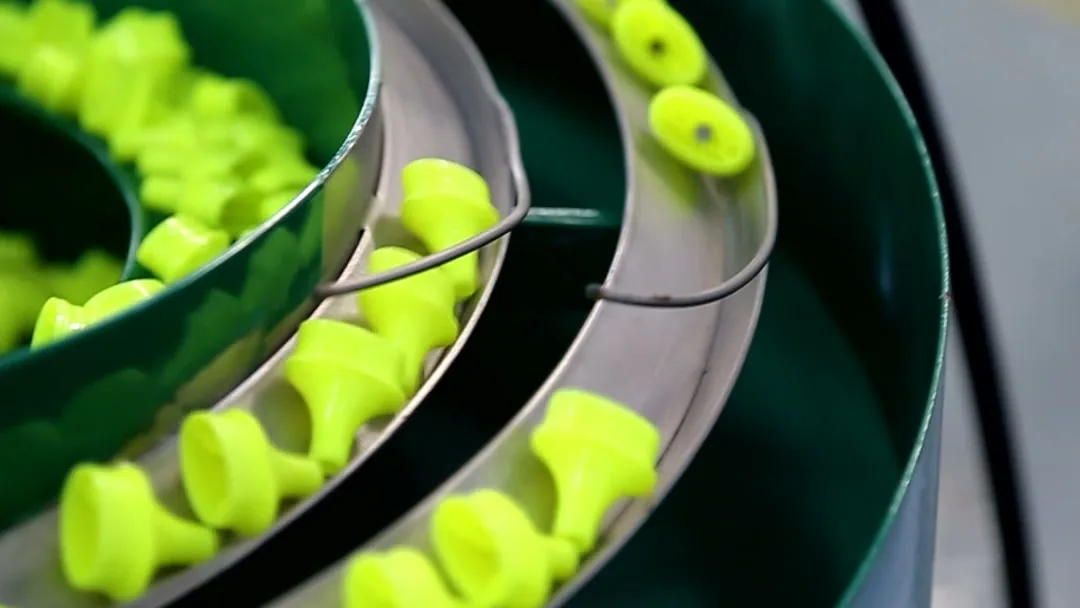

A vibratory bowl lines up the parts, and twin grippers place them into nests on a rotary table, two at a time. A feed track brings the clear seal rings to the fitting station, where each ring goes into the groove on the part. Finished parts drop into the outfeed chute. A typical machine runs about 45–60 parts per minute.
Send drawings or photos of your pen part and its seal ring, and we'll tell you whether we can assemble them, and how fast.
Used for: Highlighter & marker making machines
Key Points
- Fits a seal ring onto each pen part
- Parts fed by a vibratory bowl, rings by a feed track
- Rotary table, two parts per cycle
- About 45–60 parts per minute (typical)
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | About 45–60 pcs/min (typical, two at a time) |
| What it does | Fits a clear seal ring into the groove of a marker pen part (machine shown) |
| Layout | Rotary table, two outputs at a time, vibratory bowl and ring feed track |
| Machine size | 1200 × 1200 × 1500 mm (L × W × H, machine shown) |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Typical figures, from the machine shown. Every machine is set up for your own pen part and seal ring.
Suitable Parts
Marker pen parts with a clear seal ring (O-ring) fitted into a groove.
Frequently Asked Questions
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
