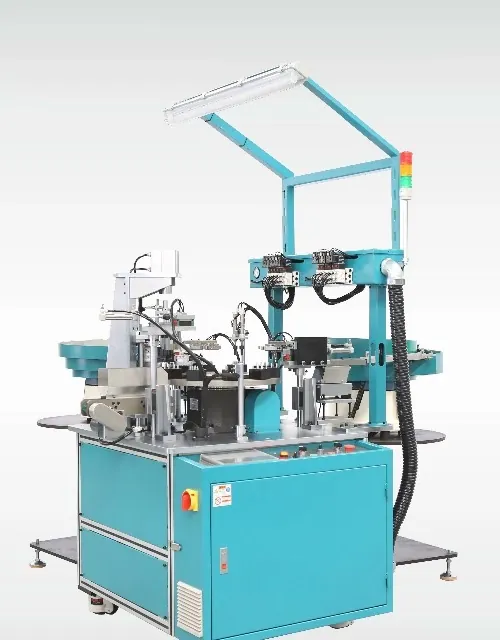

Catheter Connector Assembly Machine

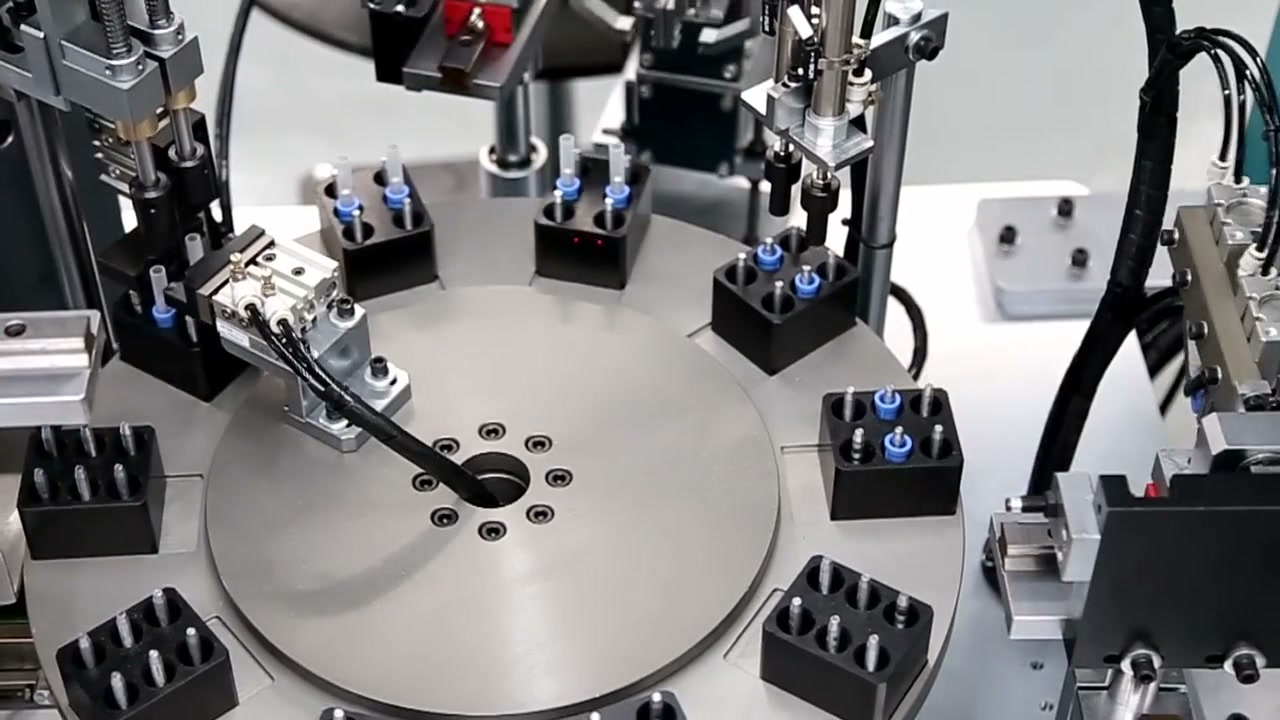

Grippers pick and place blue connectors on a rotary table, fed from a vibratory bowl.
This machine assembles catheter connectors.
The standard model works on a rotary table, two connectors per cycle, at 60–80 pieces per minute, with a vibratory bowl feeding the connectors.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Used for: Catheter and medical tube machines
Overview
Key Points
- 60–80 per minute, two per cycle (standard model)
- Rotary table, fed by a vibratory bowl
- Set up for your own connector parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures
Typical specifications
| Item | Value |
|---|---|
| Output | 60–80 pcs/min (standard model) |
| Pieces at a time | Two |
| Layout | Rotary table |
| Machine size (L × W × H) | 1800 × 2000 × 2150 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own connector parts.
What It Runs
Suitable Parts
Catheter connectors.
Answers
Frequently Asked Questions
Drawings or photos of each part and the assembled connector, and your target output. With those, we'll send an exact quote within 24–48 hours.
It depends on how many parts the connector has and the output you need. Send us your drawing or photos and your target output, and we'll send an exact quote within 24–48 hours.
The standard model runs 60–80 connectors per minute, two per cycle. Your machine is matched to your parts and the output you need.
It works on a rotary table, two connectors per cycle, with a vibratory bowl feeding the connectors, at 60–80 pieces per minute on the standard model. Send drawings or photos of your connector parts and we'll tell you whether they can be assembled, and how fast.
Catheter connectors go through a rotary table at 60–80 a minute, two per cycle, while injection needles are assembled on a different machine at about 900–1,000 per hour, with glue and UV curing. Our guide shows each step. Send drawings of your parts and we'll tell you which machine fits.
Each catheter connector assembly machine is made to your parts by a long-term partner factory. We choose the machine for your part, install and commission it on site, train your team and supply the spare and wear parts, so after-sales goes through one contact.
How it is assembled: How Syringes and Needles Are Assembled by Machine
Get a Quote
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
