Cap Assembly & Lining Machine

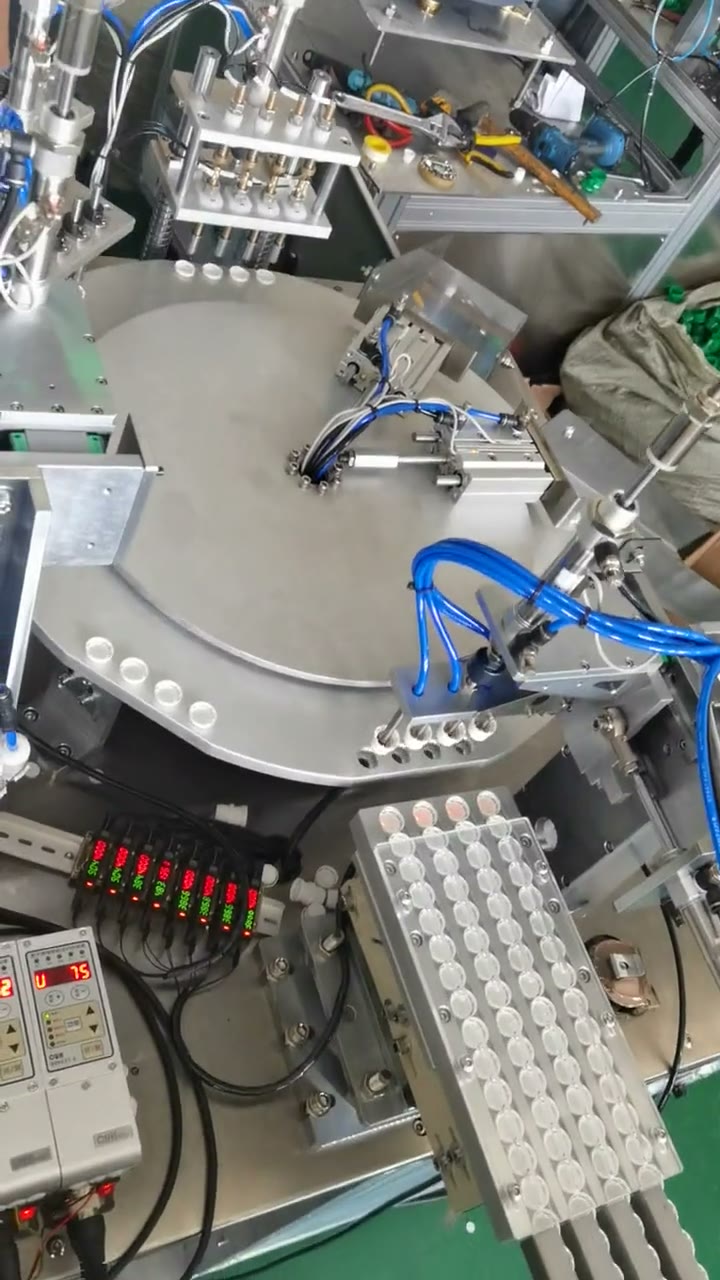

White parts run from a full vibratory bowl along feed tracks to the pick-and-place station.
This machine assembles the cap and inserts the liner on the same machine, so you do not need one machine to assemble and another to line.
The standard model runs 5,000 caps per hour.
Every machine is set up for the customer's own cap parts. Send drawings or photos of each part and the finished cap, and we'll tell you whether it fits.
Key Points
- Assembles the cap and inserts the liner on one machine
- 5,000 caps per hour on the standard model
- Set up for your own cap parts
- Exact quote within 24–48 hours once we have your cap details
Typical specifications
| Item | Value |
|---|---|
| Output | 5,000 per hour |
| Power supply | 220 V |
| Installed power | 2.5 kW |
| Machine size (L × W × H) | 2000 × 2000 × 1500 mm |
| Weight | 600 kg |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Final configuration is matched to your part and output.
Suitable Parts

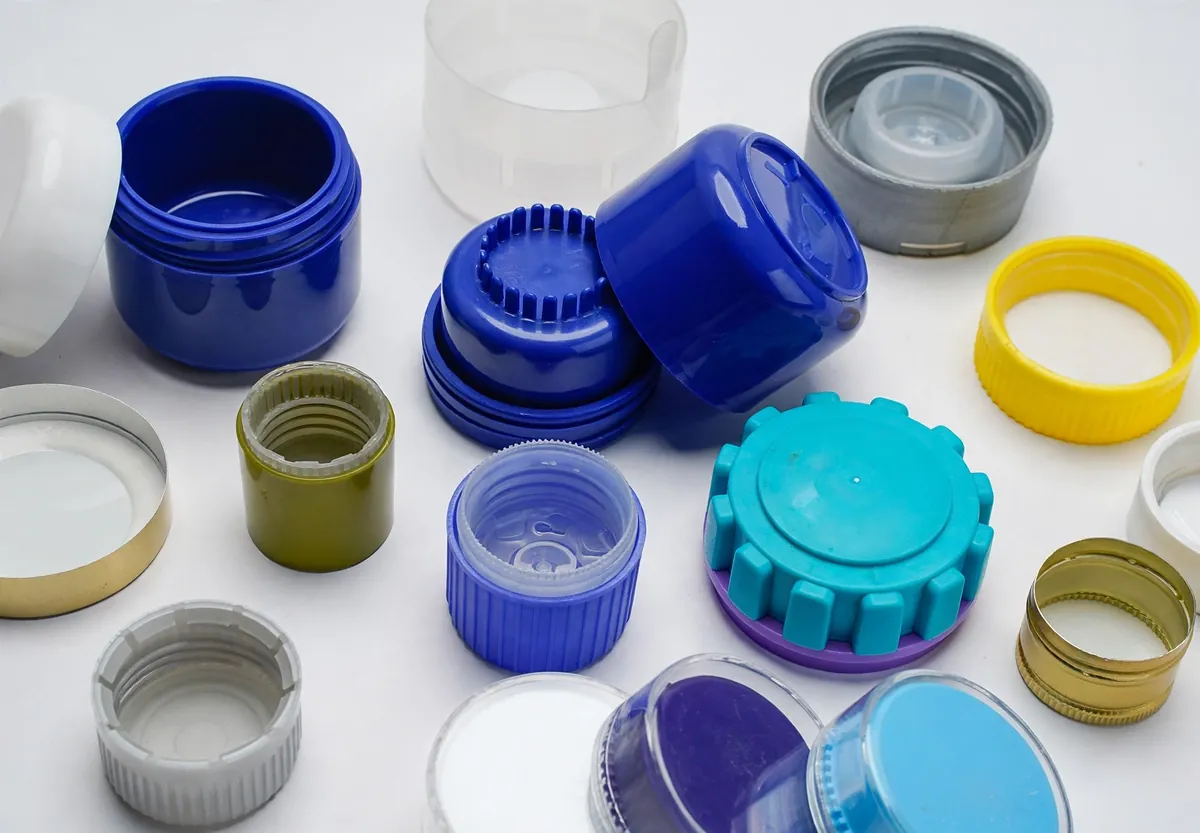

Caps made of more than one part, which also need a liner.
