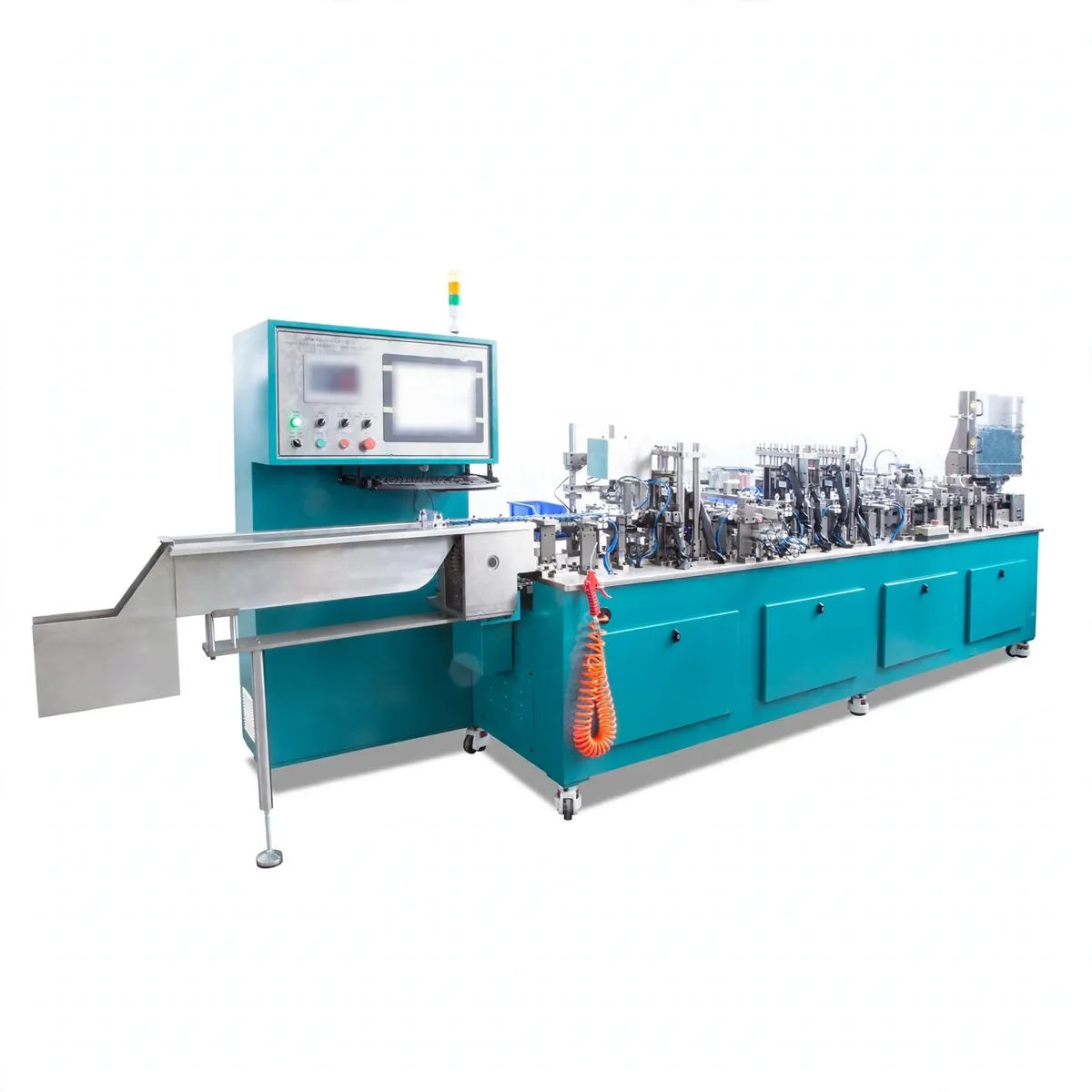

Insulin Pen Assembly & Testing Machine

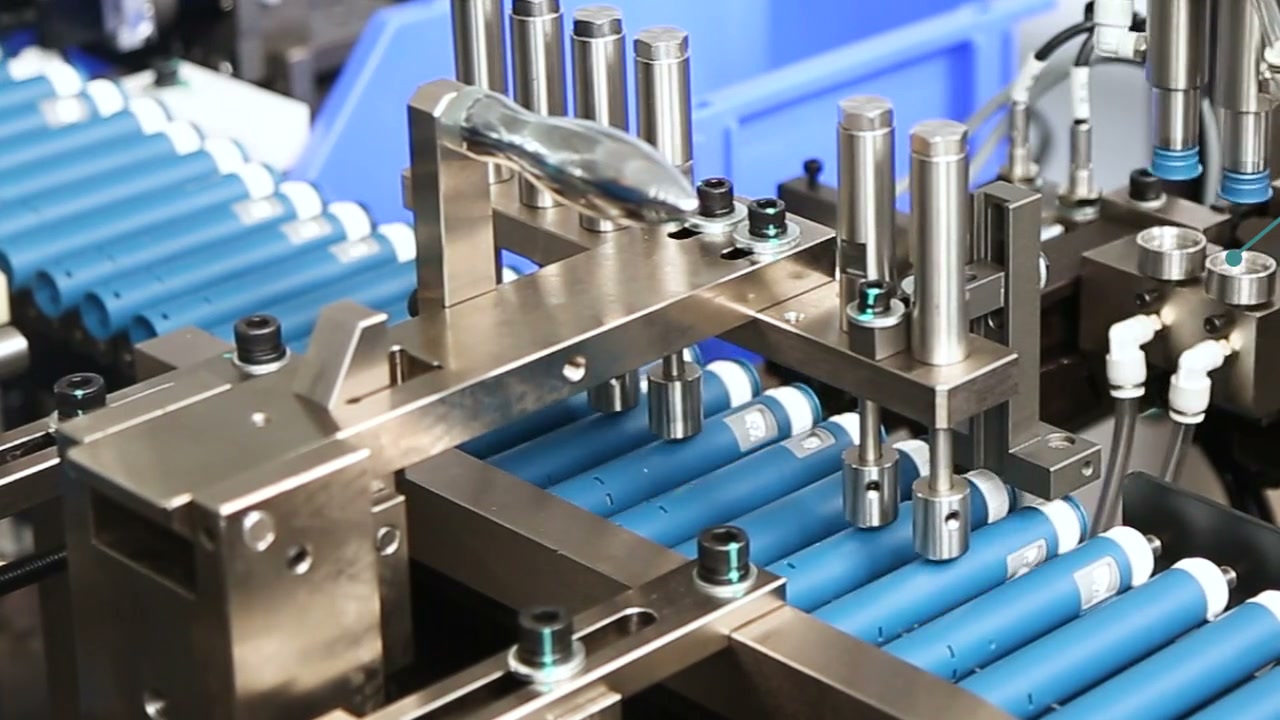

A gripper head presses parts into blue pens on the chain, then sensors check them.
This machine assembles insulin pens and tests them on the same machine. We have supplied this machine to Bangladesh.

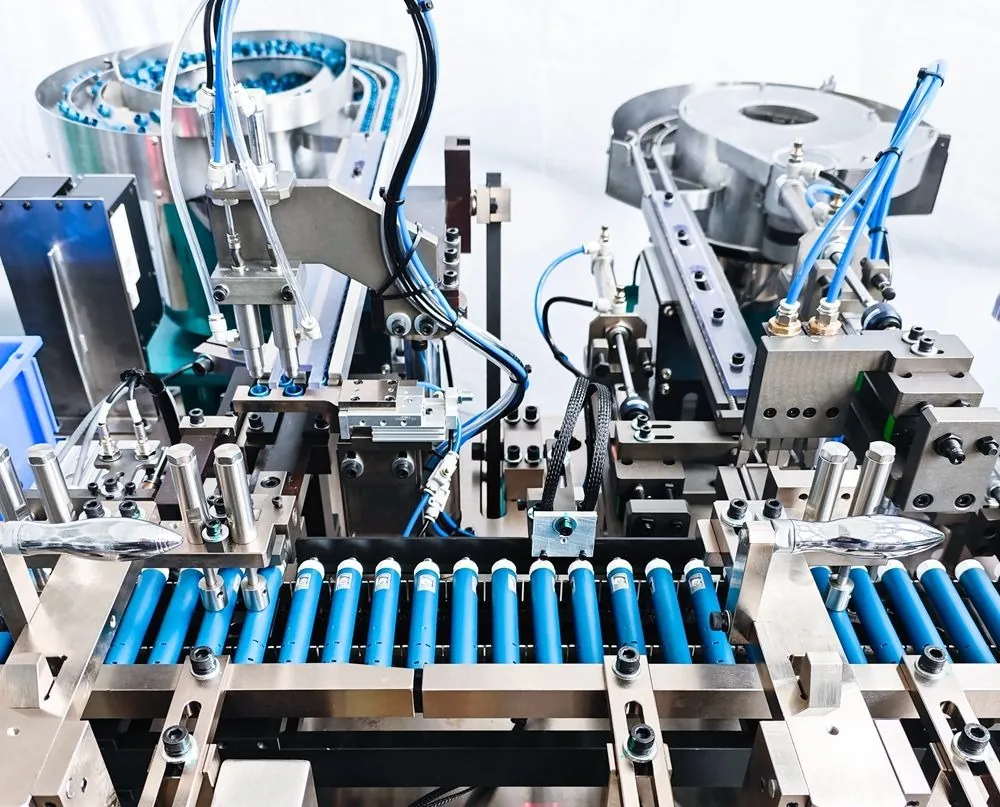

The standard model runs on a chain conveyor, two pens per cycle, at 50 pens per minute, with vibratory bowls feeding the parts. It assembles the pen, then tests torque in both directions, length, the dose window and its zero mark, and sorts out faulty pens.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Key Points
- Assembly and testing on one machine
- 50 per minute, two per cycle (standard model)
- Chain conveyor
- Set up for your own pen parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | 50 pcs/min (standard model) |
| Pieces at a time | Two |
| Layout | Chain conveyor |
| Machine size (L × W × H) | 5400 × 1600 × 1800 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own pen parts.
Suitable Parts
Insulin pens.
Frequently Asked Questions
How it is assembled: Insulin Pen Assembly and Testing, Step by Step
Request a Quote for This Machine
Send us your part drawing or photos. We check which machine can assemble it, then send you a quote.
