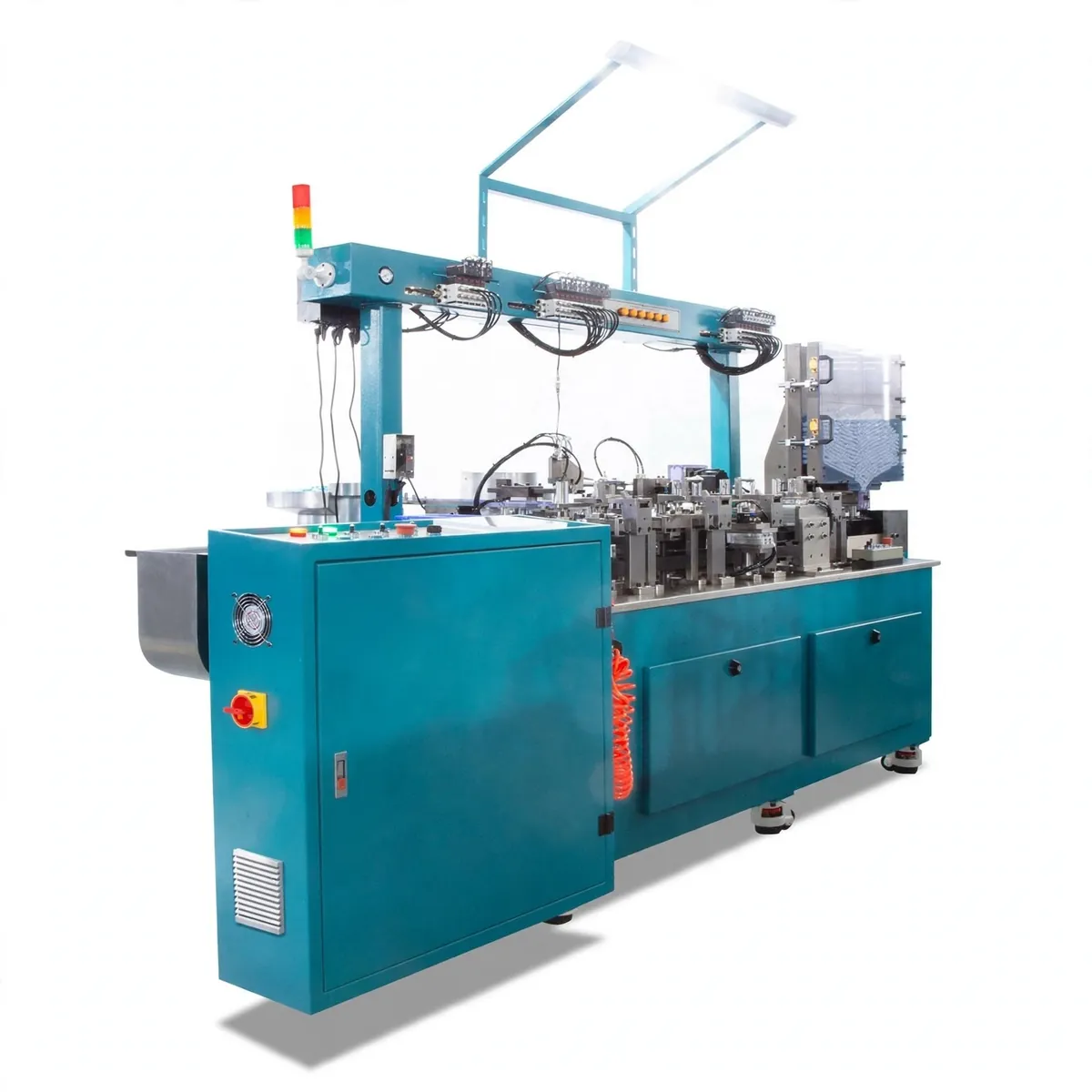

Insulin Pen Barrel Assembly Machine

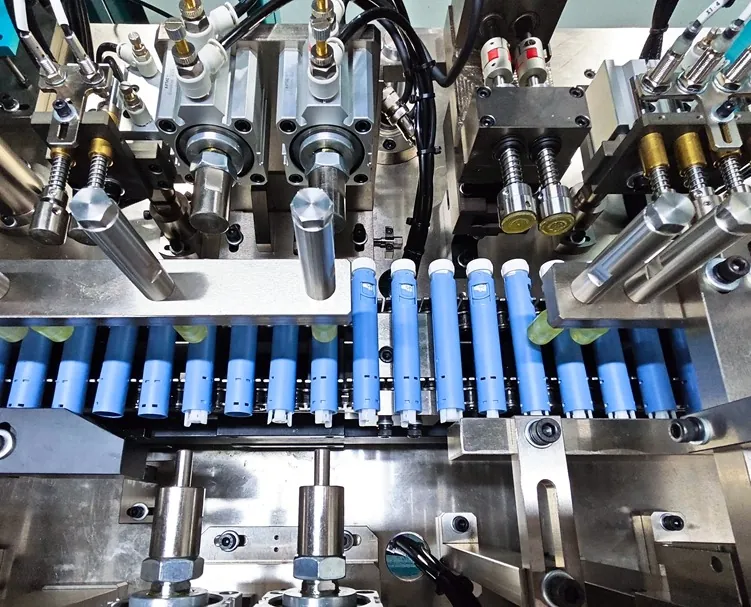

Blue pen barrels ride a chain conveyor through a row of pneumatic assembly stations.
This machine assembles the barrels of insulin pens. We have supplied this machine to Bangladesh.

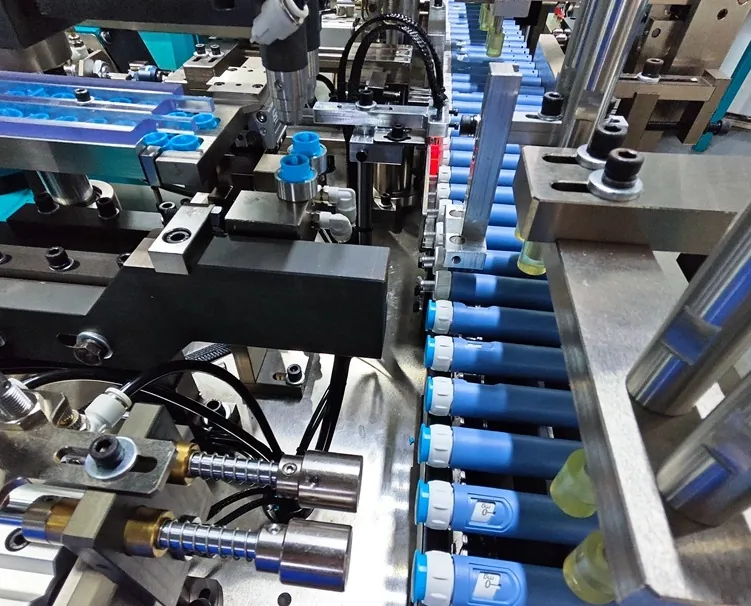

The standard model runs on a chain conveyor, two pens per cycle, at 50–60 pieces per minute. Pen barrels come from a hopper, are screwed and pressed together, then the spring and the cap go on, with a check after each step and faulty pieces sorted out.
Send drawings or photos of your parts, and we'll tell you whether they can be assembled, and how fast.
Key Points
- Assembles insulin pen barrels
- 50–60 per minute, two per cycle (standard model)
- Chain conveyor
- Set up for your own pen parts
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | 50–60 pcs/min (standard model) |
| Pieces at a time | Two |
| Layout | Chain conveyor |
| Machine size (L × W × H) | 3100 × 1400 × 1800 mm |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. Every machine is set up for your own pen parts.
Suitable Parts
Insulin pen barrels.
