Insulin Pen Inspection & Tray Loading Line
Finished pens pass camera inspection, then a robot loads a row into the tray.

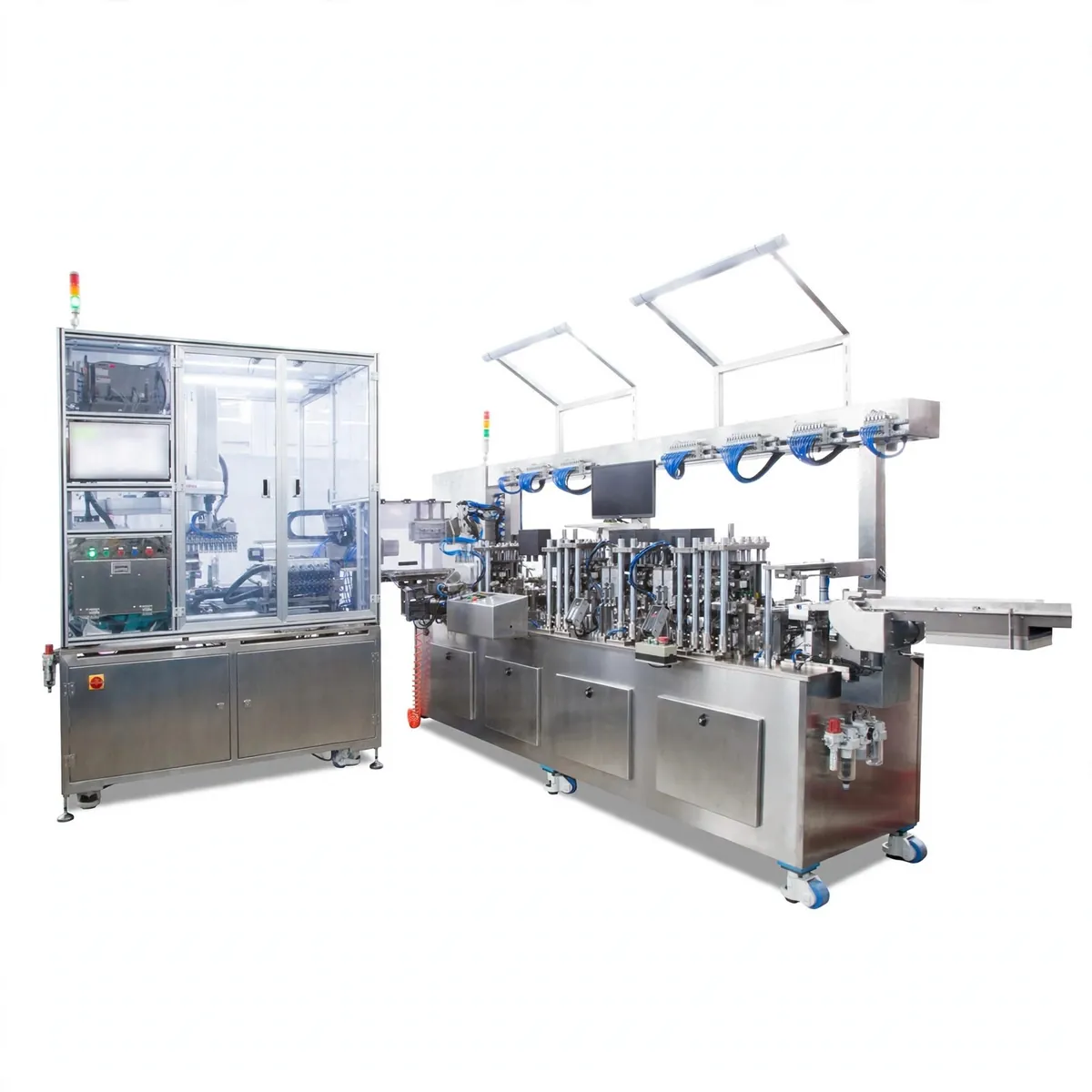

This line inspects finished insulin pens with cameras and loads them into trays. We have supplied this line to Bangladesh.

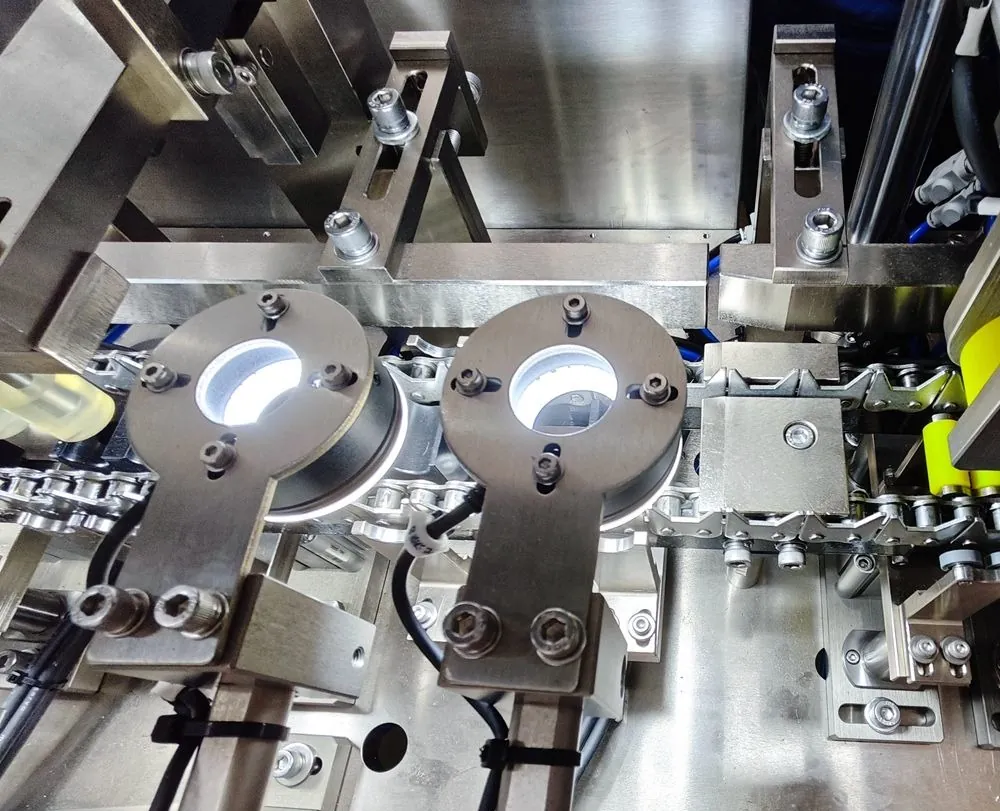

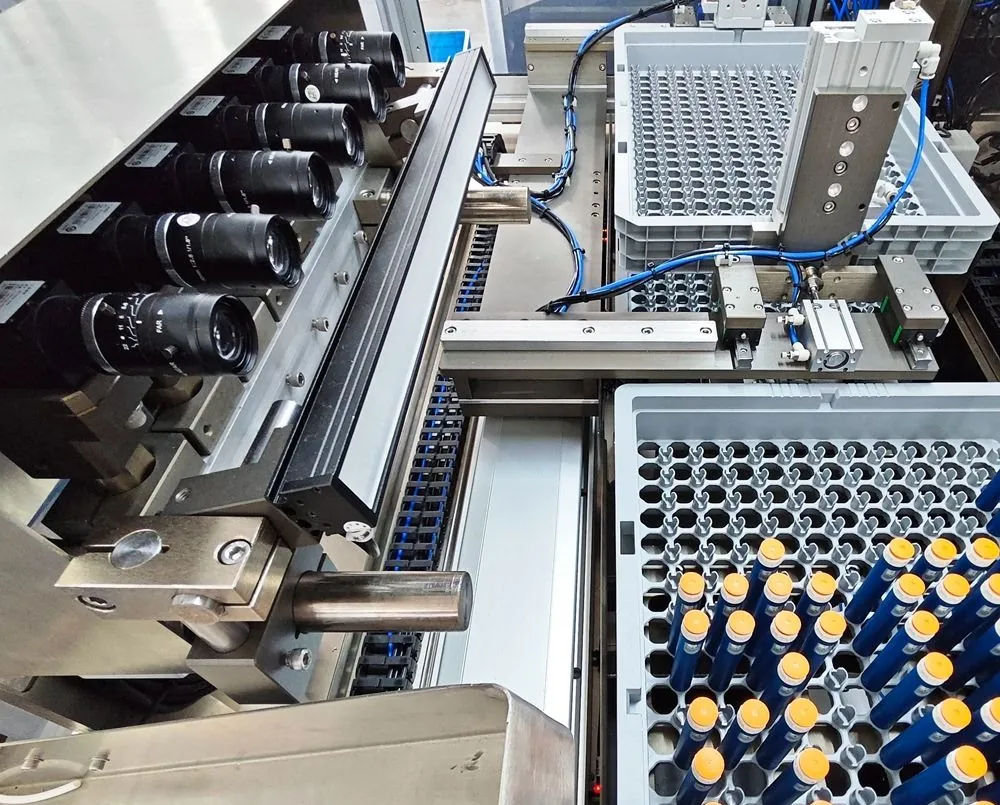

The standard model runs on a chain conveyor, two pens per cycle, at 60 pens per minute. Cameras and sensors check each pen for the spring, the window, cracks and raised gate marks, and the zero mark in the window; faulty pens are sorted out, and a four-axis robot loads good pens into trays.
Send photos of your part and tell us what needs checking, and we'll tell you whether it fits.
Key Points
- Camera inspection and tray loading on one line
- 60 per minute, two per cycle (standard model)
- Chain conveyor
- Set up for your own pen, checks and tray
- Exact quote within 24–48 hours once we have your part details
- Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Typical specifications
| Item | Value |
|---|---|
| Output | 60 pcs/min (standard model) |
| Pieces at a time | Two |
| Layout | Chain conveyor |
| Warranty | 2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse) |
Figures are for the standard model. The line is set up for your own pen, checks and tray.
Suitable Parts
Finished insulin pens, loaded into trays.
