Rotary Assembly Platform

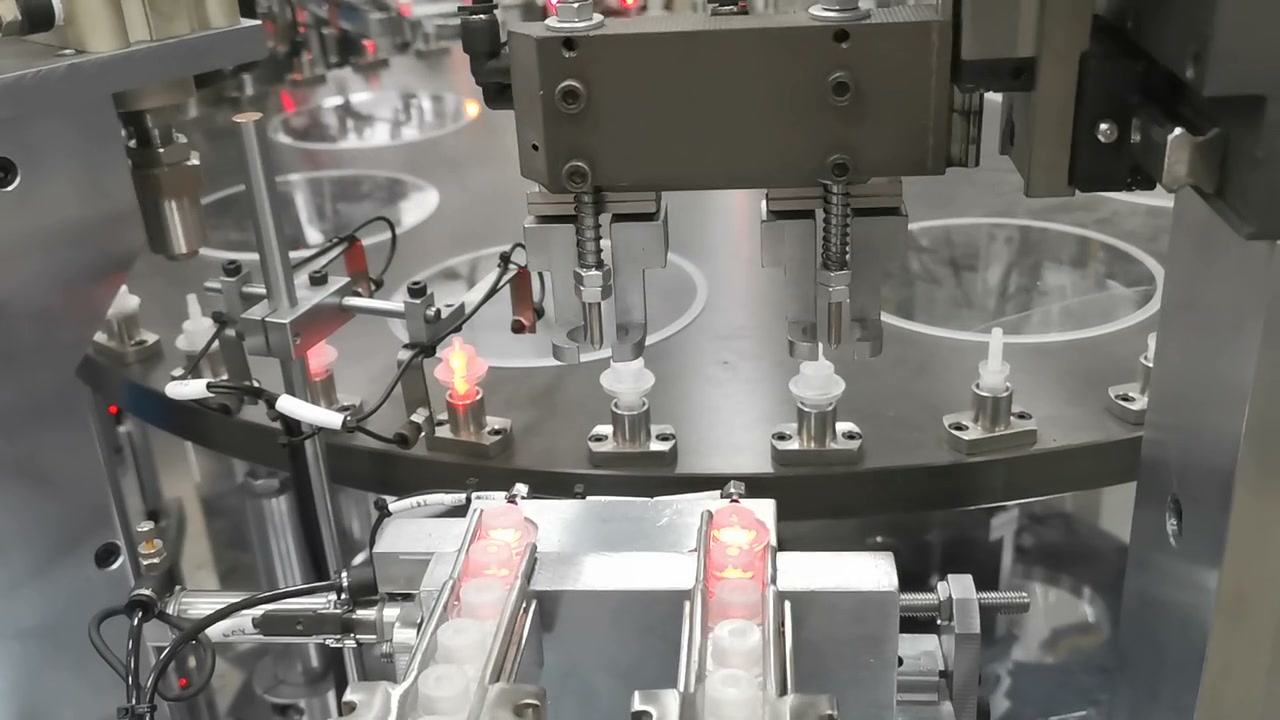

A rotary indexing table for custom rotary assembly machines: each part sits in its own fixture and gets one assembly step per station, typically 20–50 pieces a minute, and faster on simple two-piece assemblies. A twin pick-and-place head loads parts from two feed tracks onto the rotary table.

A high-speed rotary platform that carries parts from station to station, with one assembly step at each station.

The stations are set up around the customer's own parts and steps, so it serves as the base for custom assembly machines.

Send drawings or photos of your parts and the assembled product, and tell us the steps you need.

Overview

Key Points

  • High-speed circular assembly platform
  • One assembly step at each station
  • Stations set up around your own parts and steps
  • Exact quote within 24–48 hours once we have your part details
  • Warranty: 2 years on mechanical parts, 1 year on electrical parts, for faults not caused by misuse
Key Figures

Typical specifications

ItemValue
Typical output20–50 pcs/min for most parts; simple two-part caps run faster (80/min on a disc-top cap machine we supplied in the UAE). Depends on part and configuration.
LayoutCircular platform, one assembly step at each station
ConfigurationSet by your part and output
Warranty2 years on mechanical parts, 1 year on electrical parts (faults not caused by misuse)

Typical figures. Every machine is set up around your own parts and steps.

What It Runs

Suitable Parts

Parts assembled in several steps, one step per station.

Answers

Frequently Asked Questions

The rotary assembly platform serves as the base for custom assembly machines. A circular platform carries parts from station to station, with one assembly step at each station. Send drawings or photos of your parts and the assembled product, and tell us the steps you need.
A rotary assembly machine works in five steps: parts are fed by vibratory bowl and feed track, each product is set in its own fixture, the table turns and one assembly step is done at each station, sensors check the result, and the finished products leave by a chute or outfeed track. The stations are set up around your own parts and steps.
Most parts run at 20–50 pieces a minute: the fewer the parts and the more pieces handled at a time, the faster it runs. A seven-part wall switch machine runs about 20 a minute, while a disc-top cap machine we supplied in the UAE, which presses two-part caps together two at a time, is rated at 80 caps a minute. Send drawings of your parts and your target output and we'll confirm the figure for them.
Yes. The stations around the platform are set up for your own parts and steps: send drawings or photos of each part and the assembled product, list the steps you need, and tell us your target output, and we set up one station per step.
It depends on the part, the number of steps and the output you need. Send us those details, and we'll send an exact quote within 24–48 hours.
We install and commission the machine at your plant and train your team there. The warranty is 2 years on mechanical parts and 1 year on electrical parts, for faults not caused by misuse. Spare and wear parts for the machines we supply come through us, so after-sales is one contact.
