How a Ballpoint Pen Is Assembled by Machine

How a ballpoint pen goes from loose parts to a tested pen on assembly machines: the refill, the clip and small parts, the finished pen and the writing test, with the pen machines we supply.

Watch: ballpoint pen assembly, step by step

Video transcript

This video shows how a ballpoint pen goes from loose parts to a tested pen on assembly machines. A four-colour click pen, for example, is made of a barrel, four refills, a spring for each refill, a clip and a push button for each colour. On a machine line, each job, such as filling the refill, fitting the clip or testing the writing, is done by its own machine or station. A pen is made in five jobs: make the refill, finish the refill, fit the small parts, assemble the finished pen and test the writing.

Step one: make the refill. One machine feeds the refill tube, fits the tip and fills the ink. On the standard model, it handles 160 to 240 refills per minute, four at a time.

Step two: finish the refill. Wax tipping seals the tip of each refill with wax, and cap removing takes the small cap off each refill.

Step three: fit the small parts. Depending on the pen, the clip, the sleeves and plugs, the seal ring and the pen cap each have a machine. The clip machine fits metal click pen clips at 40 to 60 pens per minute, two at a time.

Step four: assemble the finished pen. A finished-pen machine, or a complete line, puts the parts of the pen together, click pens included. This finished-pen machine assembles about 53–67 pens per minute (3,200–4,000 an hour), depending on the model.

Step five: test the writing. The writing test machine draws a test line with each refill or finished pen. Refills can be tested on their own before they go into the pen, and the order changes with the pen design.

Five jobs: make the refill, finish the refill, fit the small parts, assemble the finished pen, and test the writing. We have supplied pen machines to pen makers in Pakistan, Russia and Bangladesh. Every machine is set up for your own pen parts. Our assembly machines are made to your parts by long-term partner factories. To quote, we need drawings or photos of each part and of the finished pen, whether it is a click pen, a standard ballpoint, a marker or a refill, and your target output. We'll tell you whether it can be assembled and how fast, and send an exact quote within 24–48 hours.

How do pen assembly machines work? In five jobs, each done by its own machine or station: make the refill (feed the tube, fit the tip, fill the ink), finish the refill with wax tipping and cap removing, fit the small parts such as the clip, sleeves and seal ring, assemble the finished pen, and test the writing by drawing a line with each refill or pen. The order changes with the pen design.

What is ballpoint pen assembly? Ballpoint pen assembly is the process of putting a pen together from its loose parts and testing it. A four-colour click pen, for example, is made of a barrel, four refills, a spring for each refill, a clip and a push button for each colour. On a machine line, each job, such as filling the refill, fitting the clip or testing the writing, is done by its own machine or station.

Key takeaways

  • A pen is made in five jobs: make the refill, finish the refill, fit the small parts, assemble the finished pen and test the writing. Refills can also be tested before they go into the pen, and the order changes with the pen design.
  • Gel and ballpoint refills are made at 100–220 per minute on the standard machines, the higher figure being for gel.
  • A four-colour click pen line makes 15–20 pens per minute, while a finished-pen assembly machine typically makes about 53–67 pens per minute (3,200–4,000 an hour), depending on the model. The line figure is for the four-colour version, which has far more parts.
  • The writing test draws a test line with each refill or pen, up to twenty refills at a time.
  • We have supplied pen machines to pen makers in Pakistan, Russia and Bangladesh. Every machine is set up for your own pen parts.

Video 1: a finished click pen assembly machine. What you will see: grippers lift finished black-and-white click pens from a long row of stations and set them down on a green conveyor, as the camera pulls back along the line.

The parts of a click ballpoint pen

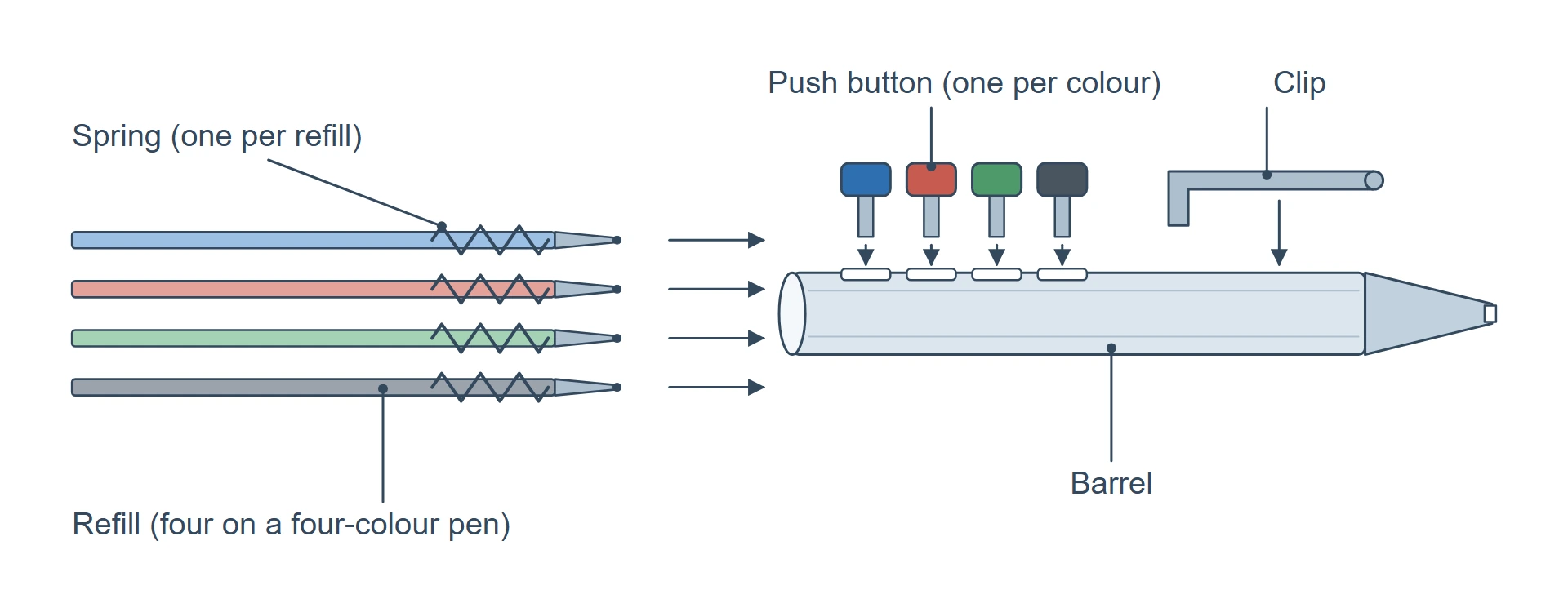

Exploded view of a four-colour click ballpoint pen: barrel, four refills, a spring for each refill, clip and a push button for each colour, with arrows showing the direction each part is inserted.
Figure 1. The parts that the pen machines put together.

The four-colour click pen on the assembly line we supply is made of a barrel, four refills, a spring for each refill, a clip and a push button for each colour. Smaller parts, such as tip sleeves, grip sleeves, end plugs, refill float plugs (also called ink followers) and seal rings, have machines of their own, and the refill is usually built and finished on separate refill machines before it goes into the pen.

A ballpoint pen in five jobs

1. Make the refill. One machine feeds the refill tube, fits the tip and fills the ink. Two machines cover this job. The pen refill machine for ink filling and tip assembly handles the tip and the ink of the refill tube, at 160–240 refills per minute, four at a time, on the standard model. The pen refill assembly machine assembles the refill itself, in versions for metal-tube, needle-tip, bullet-tip and high-capacity gel, ballpoint and marker refills, and we have supplied it to pen makers in Pakistan and Bangladesh.

A hopper of clear refill tubes above a chain conveyor, with tubes dropping into its slots.
Empty refill tubes drop from the hopper into the slots of the chain, one tube to each slot.
A vibratory bowl with small black pen parts lined up on four outlet tracks.
A vibratory bowl sorts small black pen parts and sends them out in single file along four tracks.
Pen refills held in a chain conveyor under a row of pressing stations.
On the pen refill assembly machine, refills move along the chain through a row of pressing stations.

2. Finish the refill. Wax tipping seals the tip of each refill with wax, and cap removing takes the small cap off each refill. The standard wax tipping machine tips 120–160 refills per minute, ten at a time, and comes in vertical and horizontal versions. The standard cap removing machine handles 200–220 refills per minute, four at a time, instead of by hand.

A row of blue pen refills passing through a wax tipping machine under a holding bar.
Refills move side by side through the wax tipping machine, which seals the tip of each refill with wax.
A row of grippers above black pen refills on a cap removing machine.
A row of grippers comes down over the refills to take the small cap off each one.

3. Fit the small parts. Depending on the pen, the clip, the sleeves and plugs, the seal ring and the pen cap each have a machine. The clip machine fits metal click pen clips at 40–60 pens per minute, two at a time. The tip sleeve and end plug machine fits tip sleeves, grip sleeves, end plugs and refill float plugs (ink followers); a non-slip grip sleeve machine runs 50–60 pieces per minute on a rotary table. The seal ring machine fits a clear O-ring onto a marker pen part, about 45–60 parts per minute (typical). The pen cap machine runs 40–60 caps per minute on the standard model and can fit the inner plug into the cap and check it.

Silver pen parts standing in black fixtures on a linear clip assembly machine.
Metal pen parts stand in a row of fixtures and move along the clip machine, station by station.
Black pens standing in fixtures on a rotary table under pressing heads.
Pressing heads work station by station, pushing a black non-slip sleeve onto each pen.
Yellow-green marker pen parts in black fixtures on a rotary table, below the gripper heads.
Yellow-green marker pen parts wait in their fixtures on the rotary table for the gripper that fits the seal ring.
Top view of a rotary table with yellow pen cap parts in fixtures and a feed track at the side.
Seen from above, pen cap parts come in along a feed track and are put together station by station on a rotary table.

4. Assemble the finished pen. A finished-pen machine, or a complete line, puts the parts of the pen together, click pens included. The ballpoint pen assembly machine assembles click (retractable) pens as well as standard ballpoint pens. The complete ballpoint pen assembly line combines a rotary table with a chain conveyor and, on the four-colour click pen version, takes the barrel, refills, spring, clip and button through every assembly step.

Grippers lifting blue pens from a row of fixtures and laying them on a green outfeed belt.
At the end of the line, grippers lift the finished blue pens out of the fixtures and lay them on the outfeed belt.
Black-and-white click pens on a green outfeed belt in front of a long row of gripper stations.
Finished black-and-white click pens come off the line and lie on the green outfeed belt, while the grippers behind them work along the row of stations.
Blue pen barrels in black fixtures under red-lit sensor heads on a click pen assembly line.
Blue pen barrels stand in numbered fixtures on a click pen line, with a sensor head over each working station.
Blue pen parts in black fixtures on a click pen assembly line, under a row of pressing heads.
Blue pen parts move from fixture to fixture along a click pen assembly line while the heads above press the next part in.

5. Test the writing. The writing test machine draws a test line with each refill or finished pen. Refills can be tested on their own before they go into the pen, and finished pens can be tested too. The test can be combined with tip cleaning or wax tipping on one machine. Tell us what each pen needs to be checked for.

Rows of spiral test lines on white paper beside the pen holders of a writing test machine.
Each finished pen draws its own spiral test line on white paper, row after row.
A paper roll covered in rows of spiral test lines feeding through a refill writing test machine.
Rows of spiral test lines come off the machine on a paper roll, one line for each refill.
Pens on a writing test machine under red light from the test station.
Pens pass under the red-lit station of the writing test machine.

Which machine for which job

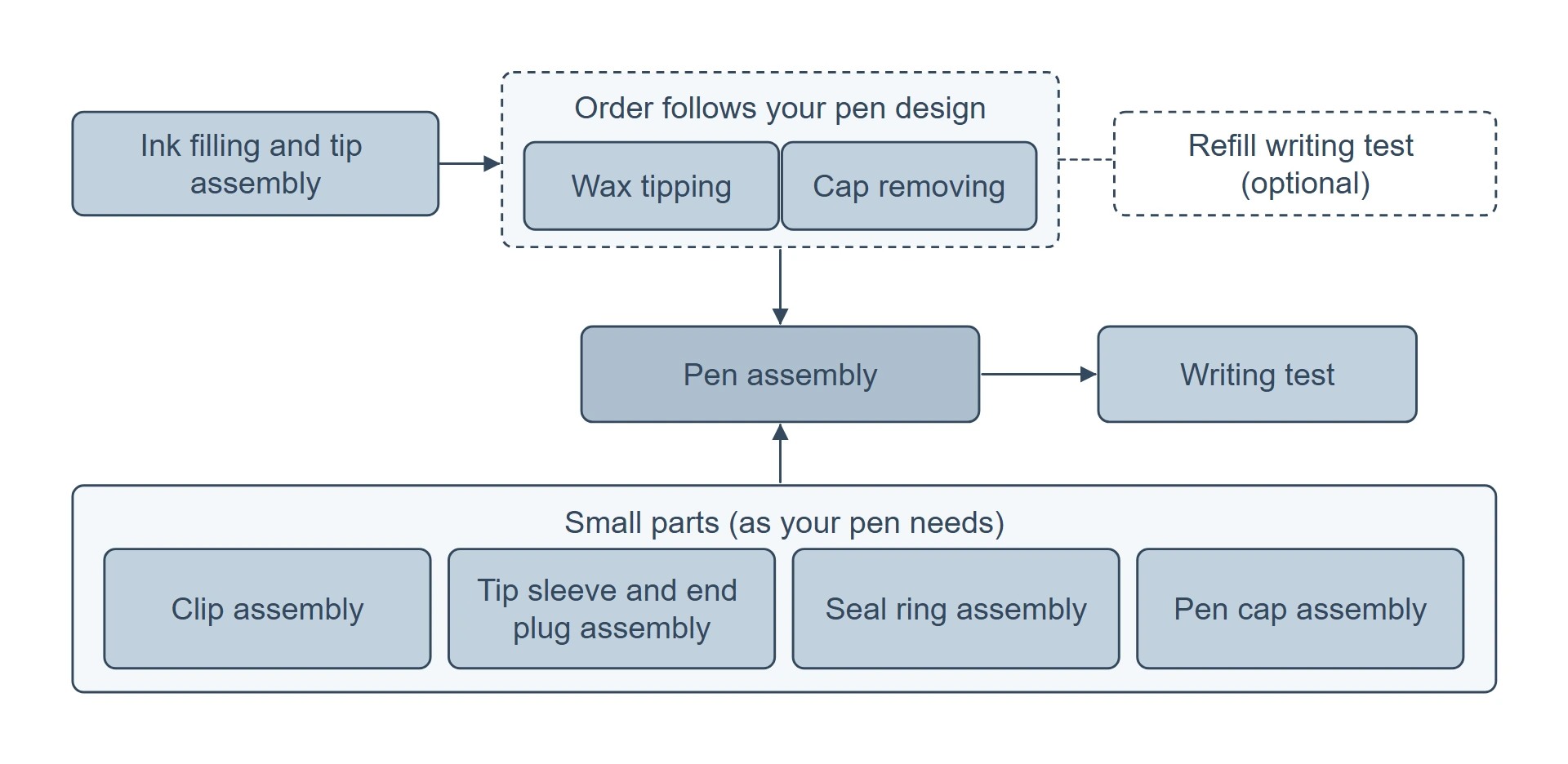

Diagram of a pen production line: a refill path with ink filling and tip assembly, wax tipping and cap removing; a group of small-parts machines used as the pen needs, with clip, tip sleeve and end plug, seal ring and pen cap; the finished-pen assembly machine; and writing tests on refills and finished pens.
Figure 2. Where each machine sits in a pen line; the order follows your pen design.
JobMachineSpeed (standard model unless marked)Pieces at a timeSupplied to
Refill tube, ink and tipPen Refill Machine for Ink Filling and Tip Assembly160–240 per minute4–
Build the refillPen Refill Assembly MachineGel 180–220; high-capacity gel 120–160; ballpoint 100–120; marker 40–60 per minute4 (marker refills: 2)Pakistan, Bangladesh
Seal the refill tipPen Refill Wax Tipping Machine120–160 refills per minute10Pakistan, Bangladesh
Take the cap off the refillPen Refill Cap Removing Machine200–220 refills per minute4Bangladesh
Fit the clipPen Clip Assembly Machine40–60 pens per minute (metal click pen clips)2Russia, Pakistan
Fit sleeves and plugsPen Tip Sleeve & End Plug Assembly Machine50–60 per minute (non-slip grip sleeves)2Pakistan, Russia
Fit a seal ringSeal Ring Assembly MachineAbout 45–60 parts per minute (typical)2–
Assemble the pen capPen Cap Assembly Machine40–60 caps per minute (liquid-ink pen caps)–Russia
Assemble the finished penBallpoint Pen Assembly MachineAbout 53–67 pens per minute (3,200–4,000 an hour), depending on the model2 (double-output click pen model)Pakistan, Russia
Complete line for click pensBallpoint Pen Assembly Line15–20 pens per minute (four-colour click pen version)1–
Test the writingPen Writing Test MachineRefills 260–320 per minute; finished pens 150–180 per minute20 refills; 10 pensBangladesh, Pakistan

The machines at work

Video 2: a finished-pen assembly machine. What you will see: rows of grippers lift blue pen barrels out of the stations and lay them in the output tray.

Video 3: pen refill ink filling and tip assembly. What you will see: pen refill tubes move along the chain past the tip and ink-filling stations.

Video 4: a pen clip assembly machine. What you will see: grippers work along a row of stations on silver metal pens, and the finished pens drop into the output tray.

Video 5: a refill wax tipping machine. What you will see: rows of blue refills move along the chain and pass under the wax tipping head.

Video 6: a pen writing test machine. What you will see: under red light, a row of pressing heads holds the pens in place as they move through the test stations.

Answers

Frequently Asked Questions

A ballpoint pen is made of a barrel and a refill; a four-colour click pen on the assembly line we supply adds a spring for each refill, a clip and a push button for each colour. Small parts such as tip sleeves, grip sleeves, end plugs, refill float plugs (ink followers) and seal rings are fitted on their own machines. Send your pen and we'll tell you how it can be assembled.
A ballpoint pen is assembled in five jobs: the refill is made, the refill is finished with wax tipping and cap removal, the small parts such as the clip and tip sleeve are fitted, the finished pen is assembled, and the writing is tested. Each job has its own machine, and the order changes with the pen design. Drawings of your pen are all we need to say which machines it takes.
A complete four-colour click pen assembly line runs 15–20 pens per minute, one pen at a time. A finished-pen assembly machine typically runs about 53–67 pens per minute (3,200–4,000 an hour), depending on the model, and a metal click pen clip machine runs 40–60 pens per minute, two at a time. Output follows your pen and its part count. Share your target output and we will come back with the machine that fits.
A pen assembly machine is a single machine for the assembly stage, while a pen assembly line takes the loose parts of a multi-part click pen through every assembly step. A four-colour click pen has far more parts than a single-refill pen, so line output, 15–20 pens per minute on the four-colour version we supply, is set by your pen and its part count. Photos of your pen are the quickest way to get a figure for it.
Yes. The ballpoint pen assembly machine assembles retractable (click) ballpoint pens as well as standard ballpoint pens. We have supplied finished-pen assembly machines to pen makers in Pakistan and Russia, for ballpoint pens, click ballpoint pens and metal click pens. Send drawings or photos of each part and the finished pen, and we'll tell you whether it can be assembled.
Typical speeds of the Pen Refill Assembly Machine are 180–220 gel refills per minute and 100–120 ballpoint (oil-based ink) refills per minute, four at a time on the standard models. High-capacity gel refills run 120–160 per minute, and marker refills 40–60 per minute, two at a time. Tell us your refill type and target output and we'll confirm the speed.
The pen writing test machine checks refills and finished pens by drawing a test line with each one. The standard refill test runs 260–320 refills per minute, twenty at a time. The finished pen test runs 150–180 pens per minute, ten at a time, and either test can be combined with tip cleaning or wax tipping. Tell us what each pen needs to be checked for.
To quote a pen machine we need drawings or photos of each part and of the finished pen, whether it is a click pen, a standard ballpoint, a marker or a refill, and your target output. We'll tell you whether it can be assembled and how fast, and send an exact quote within 24–48 hours.
